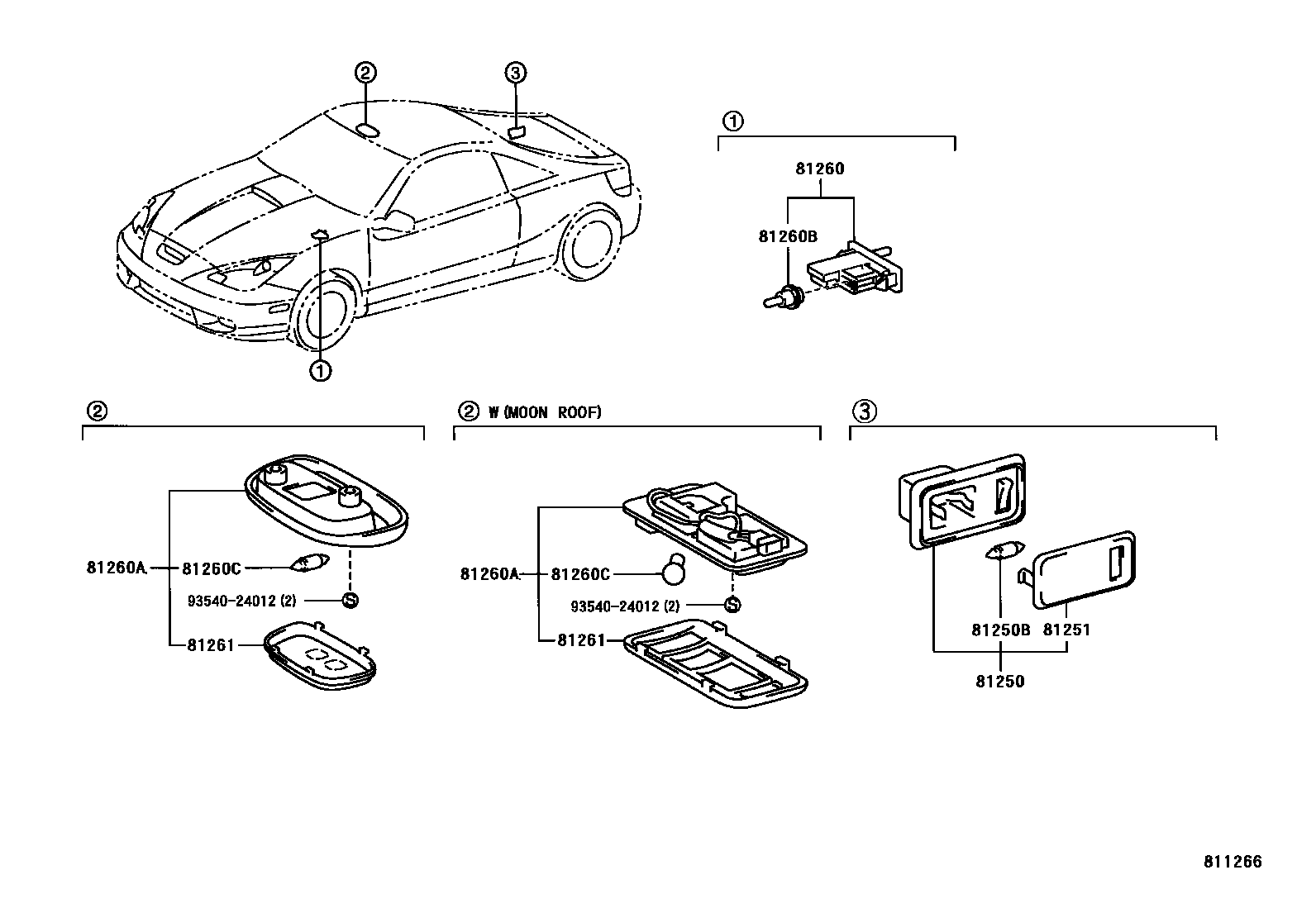

INTERIOR LAMP

81250LAMP ASSY, ROOM, NO.2

main81250-12030-B2iZZT23#199908-200208

AMETHYST,TRIM2#,20,21,22

sub81250-95J05

main81250-12030-B5iZZT23#200208-200509

DK.GRAY,TRIM20,21,22,23

sub81250-95J05

81250BBULB, ROOM LAMP, NO.2

main99132-13050iZZT23#199908-200208

12V 5W

81251LENS, ROOM LAMP, NO.2

main81251-12030iZZT23#200208-200509

81260LAMP ASSY, GLOVE BOX

main81260-33030iZZT23#199908-200208

81260ALAMP ASSY, MAP

main81260-20280-B0iZZT23#199908-200208

W(MOON ROOF),LT.GRAY,TRIM2#,20,21,22

main81260-20280-B1iZZT23#200208-200509

W(MOON ROOF),LT.GRAY,TRIM20,21,22,23

main81260-46010-B1iZZT23#199908-200208

LT.GRAY,TRIM2#,20,21,22

main81260-46010-B2iZZT23#200208-200509

LT.GRAY,TRIM20,21,22,23

81260BBULB(FOR GLOVE BOX)

main90981-11018iZZT23#199908-200208

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main90981-12014iZZT23#200208-200509

12V 10W

main90981-14004iZZT23#200208-200509

12V 8W

81261LENS AND COVER, MAP LAMP

main81261-13010-B0iZZT23#199908-200208

LT.GRAY,TRIM2#,20,21,22

main81261-13010-B3iZZT23#200208-200509

LT.GRAY,TRIM2#

main81261-46010iZZT23#199908-200208

9354024012

main93540-24012

9 parts on this diagram · 1 diagram in section
