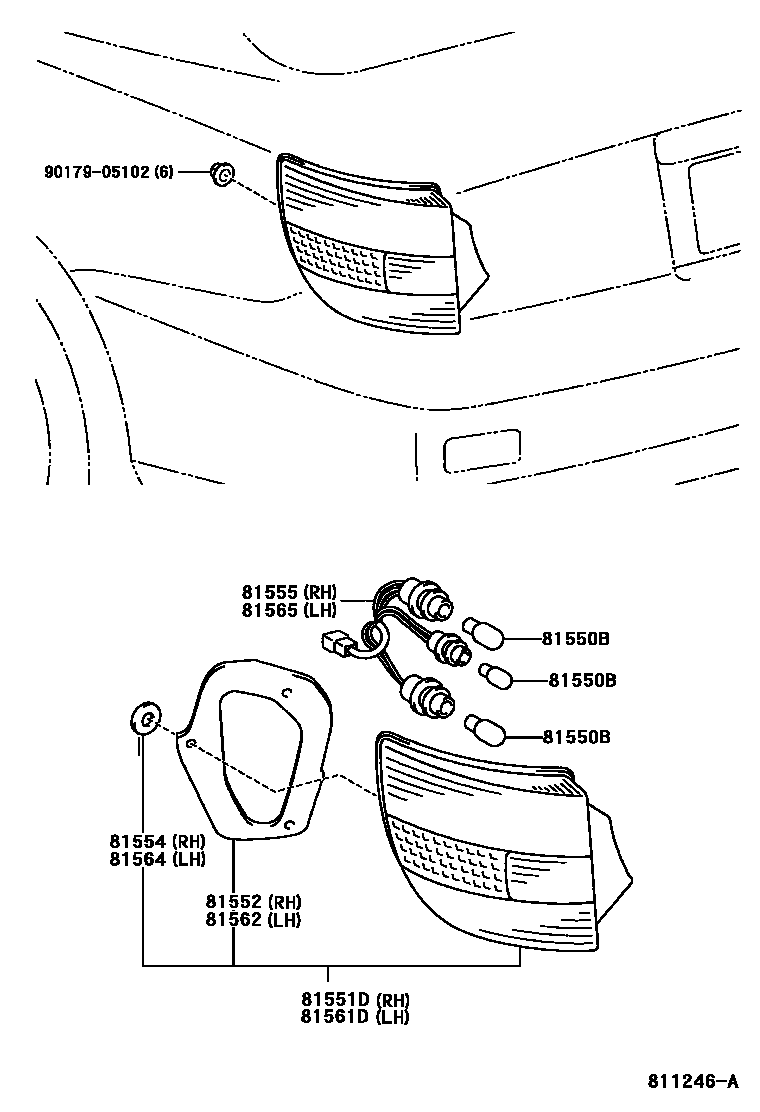

REAR COMBINATION LAMP

0001 1 0002 1

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11039iZZT23#¥200199908-200208

12V 16W

sub90981-11059¥200

main90981-13050iZZT23#¥220199908-200208

12V 21W

sub90981-13043¥220

main90981-13051iZZT23#¥230199908-200208

12V 21/5W

sub90981-11048¥230

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-2B530iZZT23#¥22,800199908-200208

main81551-2B580iZZT23#¥26,600200208-200509

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-2B530iZZT23#¥1,030199908-200208

main81554-2B590iZZT23#¥1,030200208-200509

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-47010iZZT23#¥310199908-200208

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-2B530iZZT23#¥2,470199908-200208

main81555-2B580iZZT23#¥2,470200208-200509

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-2B470iZZT23#¥22,800199908-200208

main81561-2B520iZZT23#¥26,600200208-200509

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-2B530iZZT23#¥1,030199908-200208

main81554-2B590iZZT23#¥1,030200208-200509

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-47010iZZT23#¥310199908-200208

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-2B530iZZT23#¥2,470199908-200208

main81555-2B580iZZT23#¥2,470200208-200509

9017905102

main90179-05102¥90

10 parts on this diagram · 2 diagrams in section
