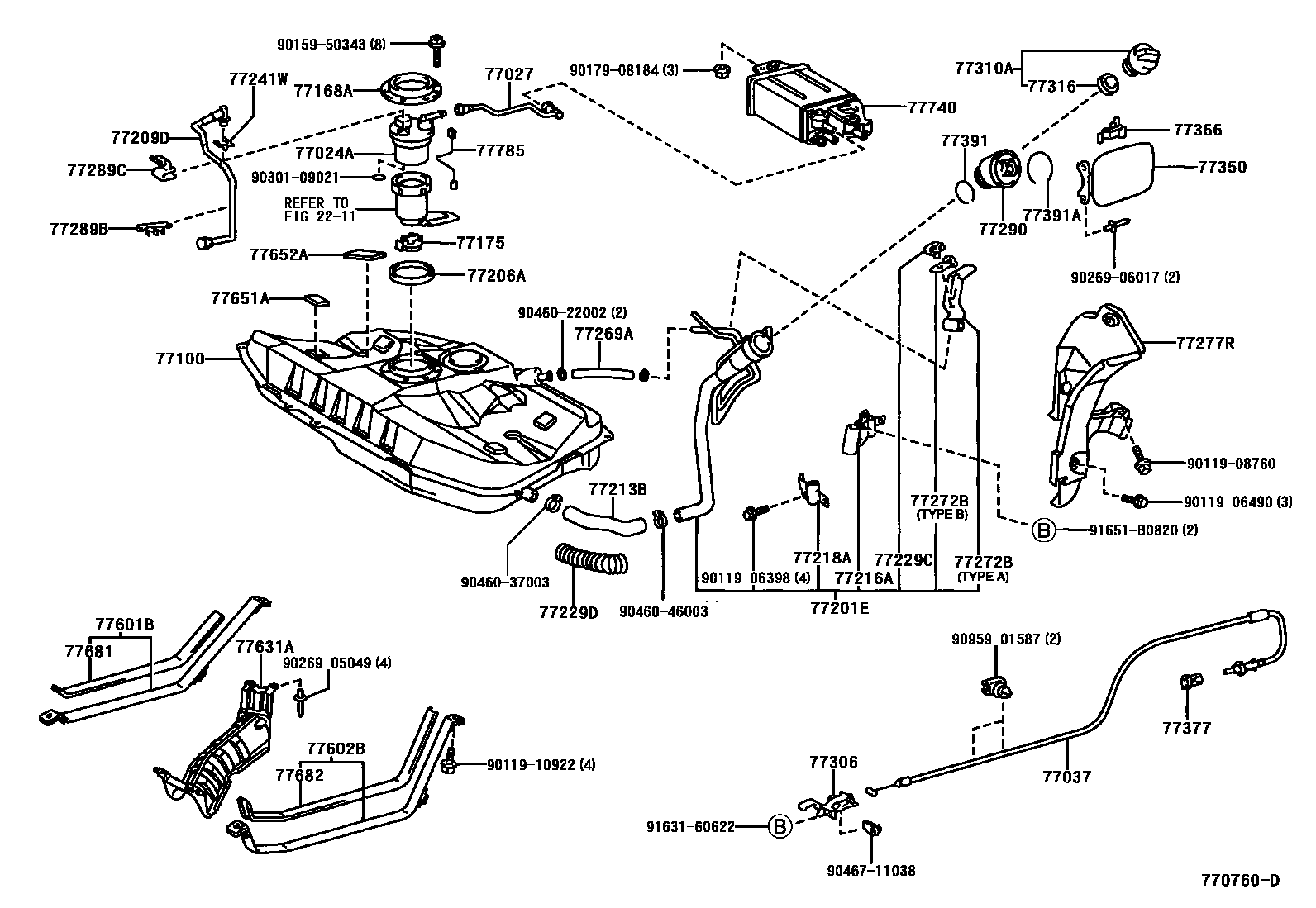

FUEL TANK & TUBE
2211
77024APLATE SUB-ASSY, FUEL SUCTION
77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100TANK ASSY, FUEL
77168APLATE, FUEL TANK VENT TUBE SET
77175SUPPORT, FUEL SUCTION, NO.2
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77206AGASKET (FOR FUEL TANK SUCTION TUBE)
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77229CCLAMP, BREATHER TUBE
77229DSUPPORT, FUEL TANK FILLER PIPE, NO.4
77241WCLIP, TUBE JOINT
77269AHOSE, FUEL TANK BREATHER
77272BSUPPORT, BREATHER TUBE, NO.1
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
TYPE A:REFER TO ILLUSTRATION
77277RPROTECTOR, FUEL TANK FILLER PIPE
77289BCLAMP, FUEL TUBE, NO.3
77289CCLAMP, FUEL TUBE, NO.4
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77631APROTECTOR, FUEL TANK, LOWER CENTER
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77740CANISTER ASSY, CHARCOAL
77785HARNESS, FUEL PUMP
9011906398
9011906490
9011908760
9011910922
9015950343
9017908184
9026905049
9026906017
9030109021
9046022002
9046037003
9046046003
9046711038
9095901587
9163160622
91651B0820
