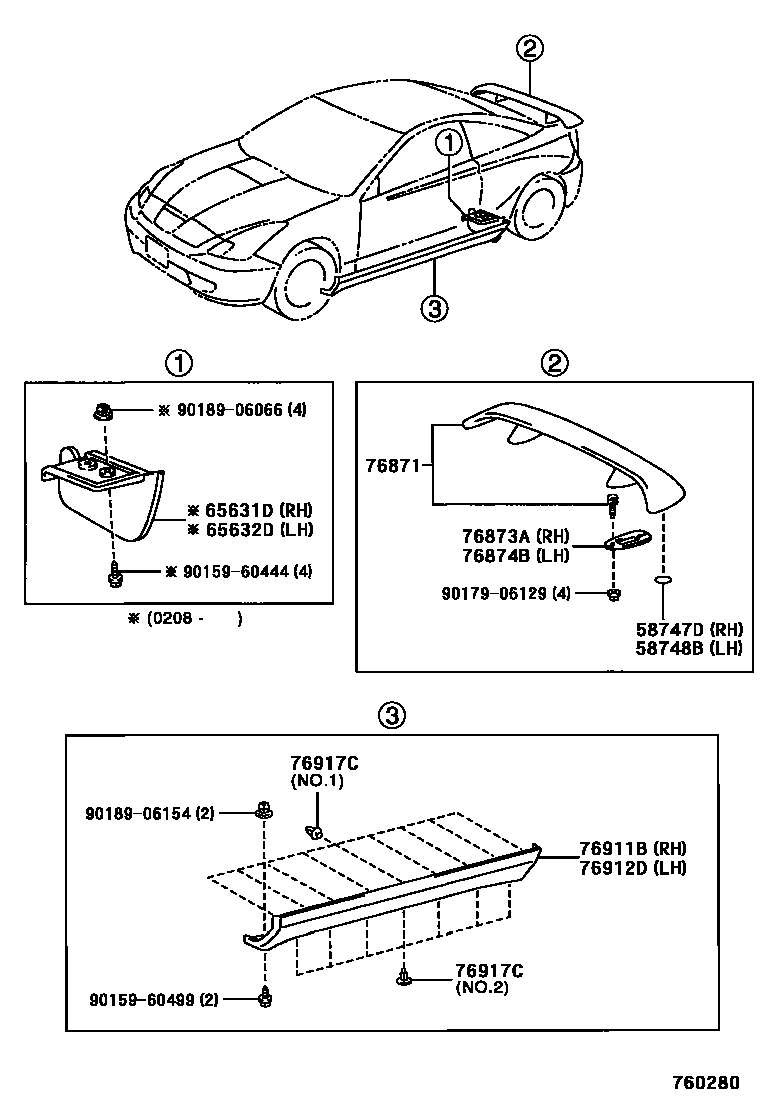

MUDGUARD & SPOILER
58747DPROTECTOR, QUARTER PANEL, REAR RH
58748BPROTECTOR, QUARTER PANEL, REAR LH
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
76871SPOILER, REAR
76873APROTECTOR, REAR SPOILER, RH
76874BPROTECTOR, REAR SPOILER, LH
76911BMUDGUARD, SIDE, RH
GRAY,040
GRAY,040 ,1D0
GRAY,040 ,1E7
BLACK,1D2 ,202 ,210 ,3P0 ,576 ,6R4 ,8M6
BLACK,202 ,210 ,3P0 ,8M6
BLACK,1D2
BLACK,1D2 ,1E7 ,202 ,210 ,3P0 ,576 ,6R4 ,8M6
76912DMUDGUARD, SIDE, LH
GRAY,040 ,1E7
GRAY,040
GRAY,040 ,1D0
BLACK,1D2 ,202 ,210 ,3P0 ,576 ,6R4 ,8M6
BLACK,202 ,210 ,3P0 ,8M6
BLACK,1D2
BLACK,1D2 ,1E7 ,202 ,210 ,3P0 ,576 ,6R4 ,8M6
76917CCLIP, QUARTER PANEL MUDGUARD
NO.2
NO.1
9015960444
main90159-60444
9015960499
main90159-60499
9017906129
main90179-06129
9018906066
main90189-06066
9018906154
main90189-06154
15 parts on this diagram · 1 diagram in section
