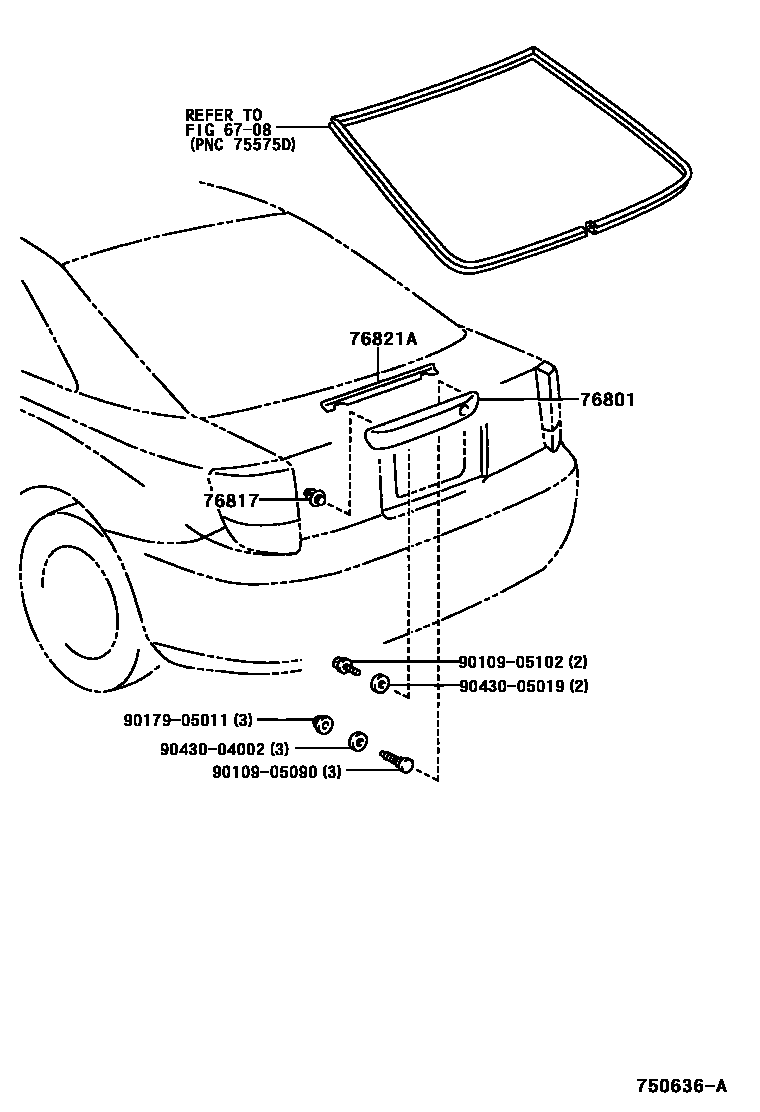

REAR MOULDING

6708

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76811-20090-A0iZZT23#199908-200509

SUPER WHITE 2,040

sub76811-20090

main76811-20090-B0iZZT23#199908-200208

SILVER ME.,1D0

sub76811-20090

main76811-20090-B1iZZT23#200008-200509

GRAY ME.,1D2

sub76811-20090

main76811-20090-B2iZZT23#200208-200509

SILVER M.M.,1E7

sub76811-20090

main76811-20090-C0iZZT23#199908-200509

BLACK,202

sub76811-20090

main76811-20090-C1iZZT23#199908-200509

BLACK MC.CC.,210

sub76811-20090

main76811-20090-D0iZZT23#199908-200509

SUPER RED 5,3P0

sub76811-20090

main76811-20090-F0iZZT23#200208-200509

SUPER BRIGHT YELLOW,576

sub76811-20090

main76811-20090-G0iZZT23#200208-200509

DARK GREEN MC.,6R4

sub76811-20090

main76811-20090-J0iZZT23#199908-200509

BLUE MC.,8M6

sub76811-20090

76817CLIP, BACK DOOR OUTSIDE GARNISH

main76817-23010iZZT23#199908-200509

76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

main76821-20030iZZT23#199908-200509

9010905090

main90109-05090

9010905102

main90109-05102

9017905011

main90179-05011

9043004002

main90430-04002

9043005019

main90430-05019

9 parts on this diagram · 1 diagram in section
