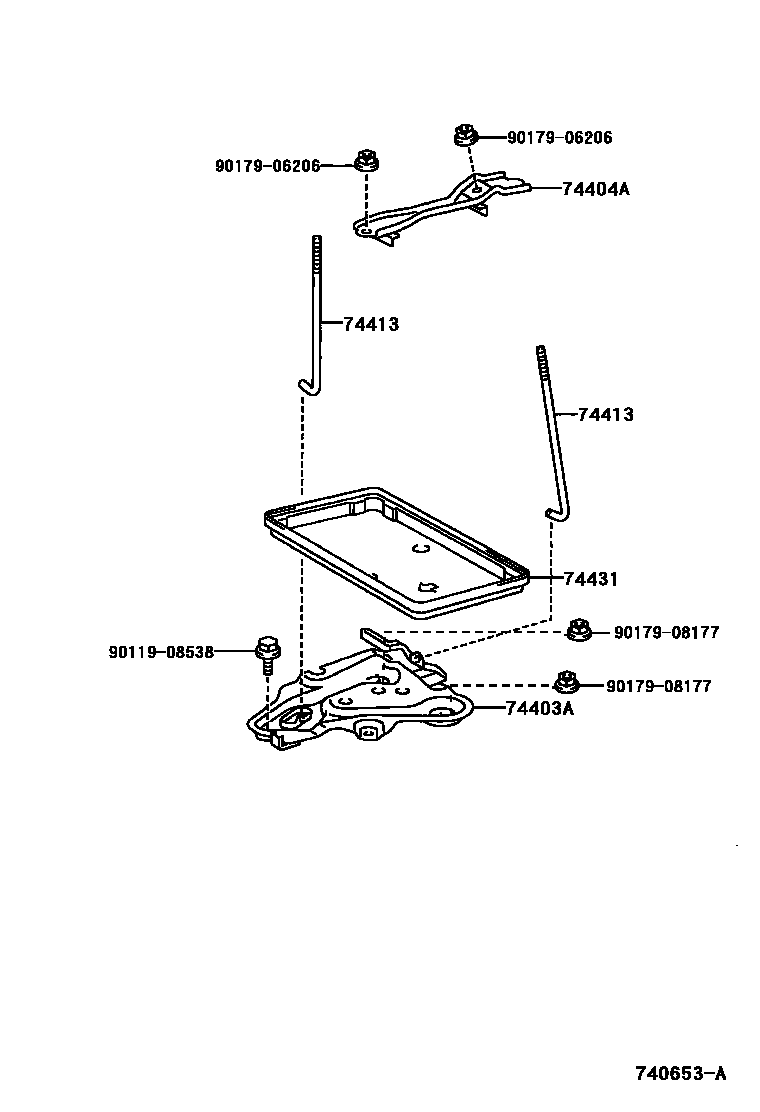

BATTERY CARRIER

74403ACARRIER SUB-ASSY, BATTERY

main74403-20080iZZT23#199908-200208

main74403-20090iZZT230200208-200509

W(ABS)

main74403-20100iZZT23#200208-200509

W(VSC)

74404ACLAMP SUB-ASSY, BATTERY

main74404-20510iZZT23#200208

W(BATTERY=50D20L OR 55D23L)

main74404-20520iZZT23#200208-200509

W(BATTERY=34B19L OR 46B24L OR 55B24L)

74413BOLT, BATTERY CLAMP

main74451-20150×2iZZT23#199908-200208

74431TRAY, BATTERY

main74431-12060iZZT23#200208-200509

W(BATTERY=34B19L OR 46B24L OR 55B24L)

main74431-35030iZZT23#199908-200208

W(BATTERY=50D20L OR 55D23L)

9011908538

main90119-08538

9017906206

main90179-06206

9017908177

main90179-08177

7 parts on this diagram · 1 diagram in section
