FRONT SEAT & SEAT TRACK

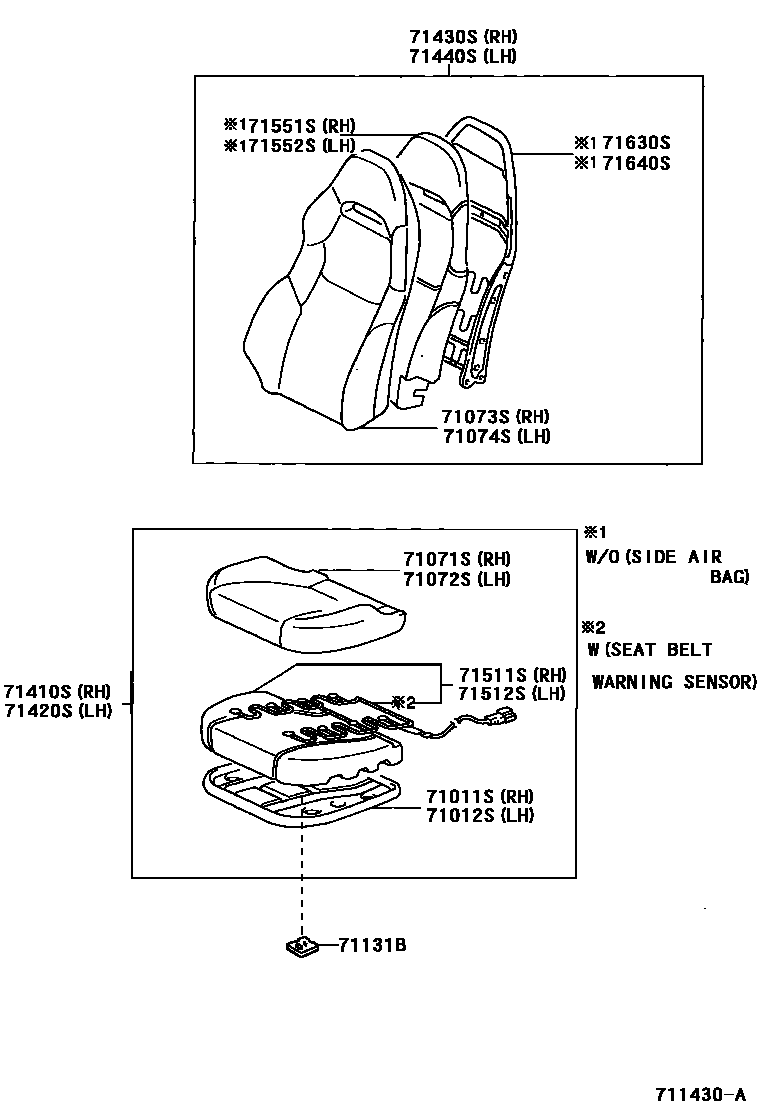

Parts diagram
71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH
main71610-20560i199908-200509
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71610-20560i199908-200509
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-2H220-20i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM22
main71071-2H220-21i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM20
main71071-2H220-C3i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM20
main71071-2H220-C4i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM21
main71071-2H220-C5i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM22
main71071-2H220-C9i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM21
main71071-2H250-20i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM22
main71071-2H250-21i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM20
main71071-2H250-C3i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM20
main71071-2H250-C4i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM21
main71071-2H250-C5i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM22
main71071-2H250-C9i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM21
main71071-2H260-20i200208-200509
W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22
main71071-2H260-21i200208-200509
W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20
main71071-2H260-C3i199908-200208
W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20
main71071-2H260-C4i199908-200208
W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21
main71071-2H260-C5i199908-200208
W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22
main71071-2H260-C9i200208-200509
W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21
main71071-2H280-C0i199908-200208
SEAT = TYPE C-*104,BLACK,TRIM2#
main71071-2H281-C1i200208-200509
SEAT = TYPE C-*104,BLACK,TRIM2#
main71071-2H290-C0i199908-200208
SEAT = TYPE C-*104,BLACK,TRIM2#
main71071-2H291-C1i200208-200509
SEAT = TYPE C-*104,BLACK,TRIM2#
main71071-2H400-C0i200208-200509
SEAT = TYPE C-*104 & W(SEAT HEATER),BLACK,TRIM2#
main71071-2H410-C0i200208-200509
SEAT = TYPE C-*104 & W(SEAT HEATER),BLACK,TRIM2#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-2G510-20i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM22
main71072-2G510-21i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM20
main71072-2G510-C3i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM20
main71072-2G510-C4i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM21
main71072-2G510-C5i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM22
main71072-2G510-C9i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM21
main71072-2G540-20i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM22
main71072-2G540-21i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM20
main71072-2G540-C3i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM20
main71072-2G540-C4i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM21
main71072-2G540-C5i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM22
main71072-2G540-C9i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM21
main71072-2G550-20i200208-200509
W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22
sub71072-2G551
main71072-2G550-21i200208-200509
W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20
sub71072-2G551
main71072-2G550-C3i199908-200208
W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20
sub71072-2G551
main71072-2G550-C4i199908-200208
W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21
sub71072-2G551
main71072-2G550-C5i199908-200208
W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22
sub71072-2G551
main71072-2G550-C9i200208-200509
W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21
sub71072-2G551
main71072-2G570-C0i199908-200208
SEAT = TYPE C-*104,BLACK,TRIM2#
main71072-2G571-C1i200208-200509
SEAT = TYPE C-*104,BLACK,TRIM2#
main71072-2G580-C0i199908-200208
SEAT = TYPE C-*104,BLACK,TRIM2#
main71072-2G581-C1i200208-200509
SEAT = TYPE C-*104,BLACK,TRIM2#
main71072-2G690-C0i200208-200509
SEAT = TYPE C-*104 & W(SEAT HEATER),BLACK,TRIM2#
main71072-2G700-C0i200208-200509
SEAT = TYPE C-*104 & W(SEAT HEATER),BLACK,TRIM2#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71027-20050-C1i200208-200509
W(SEAT HEATER) & SEAT = TYPE C-*104,BLACK,TRIM23
sub71027-20050
sub71027-20060
main71027-20060-C1i200208-200509
W(SEAT HEATER) & SEAT = TYPE C-*104,BLACK,TRIM23
sub71027-20060
main71073-2H260-C0i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM20
sub71073-2H262
main71073-2H260-C1i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM21
sub71073-2H262
main71073-2H260-C2i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM22
sub71073-2H262
main71073-2H261-20i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM22
sub71073-2H261
main71073-2H261-21i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM20
sub71073-2H261
main71073-2H261-C9i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM21
sub71073-2H261
main71073-2H290-C0i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM20
main71073-2H290-C1i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM21
main71073-2H290-C2i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM22
main71073-2H291-20i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM22
sub71073-2H301
sub71073-2H291
main71073-2H291-21i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM20
sub71073-2H301
sub71073-2H291
main71073-2H291-C9i200208-200509
SEAT = TYPE A-*104,GRAY,TRIM21
sub71073-2H301
sub71073-2H291
main71073-2H300-C0i199908-200208
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20
main71073-2H300-C1i199908-200208
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21
main71073-2H300-C2i199908-200208
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22
main71073-2H301-20i200208-200509
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22
sub71073-2H301
main71073-2H301-21i200208-200509
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20
sub71073-2H301
main71073-2H301-C9i200208-200509
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21
sub71073-2H301
main71073-2H320-C0i199908-200208
SEAT = TYPE C-*104,BLACK,TRIM2#
main71073-2H321-C3i200208-200509
SEAT = TYPE C-*104,BLACK,TRIM2#
sub71073-2H321
main71073-2H330-C0i199908-200208
SEAT = TYPE C-*104,BLACK,TRIM2#
main71073-2H331-C3i200208-200509
SEAT = TYPE C-*104,BLACK,TRIM2#
sub71073-2H331
sub71073-2H321
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main70169-20010-C1i200208-200509
W(SEAT HEATER) & SEAT = TYPE C-*104,BLACK,TRIM2#
main70169-20020-C1i200208-200509
W(SEAT HEATER) & SEAT = TYPE C-*104,BLACK,TRIM2#
sub70169-20010
main71073-2H250-C0i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM20
sub71073-2H260
main71073-2H250-C1i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM21
sub71073-2H260
main71073-2H250-C2i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM22
sub71073-2H260
main71073-2H251-20i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM22
sub71073-2H261
sub71073-2H251
main71073-2H251-21i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM20
sub71073-2H261
sub71073-2H251
main71073-2H251-C9i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM21
sub71073-2H261
sub71073-2H251
main71074-2G280-C0i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM20
main71074-2G280-C1i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM21
main71074-2G280-C2i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM22
main71074-2G281-20i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM22
sub71074-2G281
main71074-2G281-21i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM20
sub71074-2G281
main71074-2G281-C9i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM21
sub71074-2G281
main71074-2G290-C0i199908-200208
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20
sub71074-2G292
main71074-2G290-C1i199908-200208
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21
sub71074-2G292
main71074-2G290-C2i199908-200208
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22
sub71074-2G292
main71074-2G291-20i200208-200509
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22
sub71074-2G281
sub71074-2G291
main71074-2G291-21i200208-200509
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20
sub71074-2G281
sub71074-2G291
main71074-2G291-C9i200208-200509
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21
sub71074-2G281
sub71074-2G291
main71074-2G310-C0i199908-200208
SEAT = TYPE C-*104,BLACK,TRIM2#
main71074-2G311-C3i200208-200509
BLACK,TRIM23
sub71074-2G311
sub71074-2G321
main71074-2G320-C0i199908-200208
SEAT = TYPE C-*104,BLACK,TRIM2#
main71074-2G321-C3i200208-200509
SEAT = TYPE C-*104,BLACK,TRIM2#
71131BPLATE, FRONT SEAT CUSHION, NO.1
main71131-13020i200208-200509
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-2H770-C0i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM20
main71410-2H770-C1i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM21
main71410-2H770-C2i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM22
main71410-2H780-C0i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM20
main71410-2H780-C1i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM21
main71410-2H780-C2i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM22
main71410-2H790-C0i199908-200208
W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20
main71410-2H790-C1i199908-200208
W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21
main71410-2H790-C2i199908-200208
W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22
main71410-2H830-C0i199908-200208
SEAT = TYPE C-*104,BLACK,TRIM2#
main71410-2H840-C0i199908-200208
SEAT = TYPE C-*104,BLACK,TRIM2#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-2H400-C0i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM20
main71420-2H400-C1i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM21
main71420-2H400-C2i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM22
main71420-2H410-C0i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM20
main71420-2H410-C1i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM21
main71420-2H410-C2i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM22
main71420-2H420-C0i199908-200208
W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20
main71420-2H420-C1i199908-200208
W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21
main71420-2H420-C2i199908-200208
W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22
main71420-2H460-C0i199908-200208
SEAT = TYPE C-*104,BLACK,TRIM2#
main71420-2H470-C0i199908-200208
SEAT = TYPE C-*104,BLACK,TRIM2#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71040-20170-C0i199908-199909
SEAT = TYPE A-*104,BLACK,TRIM20
sub71040-20171
main71040-20170-C1i199908-199909
SEAT = TYPE A-*104,BLACK,TRIM21
sub71040-20171
main71040-20170-C2i199908-199909
SEAT = TYPE A-*104,BLACK,TRIM22
sub71040-20171
main71040-20171-C0i199909-200208
SEAT = TYPE A-*104,BLACK,TRIM20
sub71040-20260
main71040-20171-C1i199909-200208
SEAT = TYPE A-*104,BLACK,TRIM21
sub71040-20260
main71040-20171-C2i199909-200208
SEAT = TYPE A-*104,BLACK,TRIM22
sub71040-20260
main71040-20172-20i200208-200509
SEAT = TYPE A-*104,GRAY,TRIM21
sub71040-20261
main71040-20172-21i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM22
sub71040-20261
main71040-20172-C9i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM20
sub71040-20261
main71040-20180-C0i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM20
main71040-20180-C1i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM21
main71040-20180-C2i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM22
main71040-20190-C0i199908-199909
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20
sub71040-20260
main71040-20190-C1i199908-199909
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21
sub71040-20260
main71040-20190-C2i199908-199909
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22
sub71040-20260
main71040-20230-C0i199908-199909
SEAT = TYPE C-*104,BLACK,TRIM2#
sub71040-20270
main71040-20240-C0i199908-199909
SEAT = TYPE C-*104,BLACK,TRIM2#
sub71040-20241
main71040-20241-C0i199909-200208
SEAT = TYPE C-*104,BLACK,TRIM2#
sub71040-20270
main71040-20242-C3i200208-200509
SEAT = TYPE C-*104,BLACK,TRIM2#
sub71040-20271
main71040-20260-C0i199909-200208
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20
main71040-20260-C1i199909-200208
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21
main71040-20260-C2i199909-200208
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22
main71040-20261-20i200208-200509
BLACK,TRIM20
main71040-20261-21i200208-200509
GRAY,TRIM21
main71040-20261-22i200208-200509
BLACK,TRIM22
main71040-20270-C0i199909-200208
SEAT = TYPE C-*104,BLACK,TRIM2#
main71040-20271-C3i200208-200509
SEAT = TYPE C-*104,BLACK,TRIM2#
main71040-20320-C1i200208-200509
W(SEAT HEATER) & SEAT = TYPE C-*104,BLACK,TRIM2#
sub71040-20330
main71040-20330-C1i200208-200509
W(SEAT HEATER) & SEAT = TYPE C-*104,BLACK,TRIM2#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71040-20160-C0i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM20
main71040-20160-C1i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM21
main71040-20160-C2i199908-200208
SEAT = TYPE A-*104,BLACK,TRIM22
main71070-20060-C0i199908-199909
SEAT = TYPE A-*104,BLACK,TRIM20
sub71070-20061
main71070-20060-C1i199908-199909
SEAT = TYPE A-*104,BLACK,TRIM21
sub71070-20061
main71070-20060-C2i199908-199909
SEAT = TYPE A-*104,BLACK,TRIM22
sub71070-20061
main71070-20061-C0i199909-200208
SEAT = TYPE A-*104,BLACK,TRIM20
main71070-20061-C1i199909-200208
SEAT = TYPE A-*104,BLACK,TRIM21
main71070-20061-C2i199909-200208
SEAT = TYPE A-*104,BLACK,TRIM22
main71070-20062-20i200208-200509
SEAT = TYPE A-*104,GRAY,TRIM21
main71070-20062-21i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM22
main71070-20062-C9i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM20
main71070-20070-C0i199908-199909
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20
sub71070-20180
main71070-20070-C1i199908-199909
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21
sub71070-20180
main71070-20070-C2i199908-199909
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22
sub71070-20180
main71070-20110-C0i199908-199909
SEAT = TYPE C-*104,BLACK,TRIM2#
sub71070-20190
main71070-20120-C0i199908-199909
SEAT = TYPE C-*104,BLACK,TRIM2#
sub71070-20121
main71070-20121-C0i199909-200208
SEAT = TYPE C-*104,BLACK,TRIM2#
main71070-20122-C3i200208-200509
SEAT = TYPE C-*104,BLACK,TRIM2#
main71070-20180-C0i199909-200208
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20
sub71070-20061
main71070-20180-C1i199909-200208
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21
sub71070-20061
main71070-20180-C2i199909-200208
W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22
sub71070-20061
main71070-20181-20i200208-200509
SEAT = TYPE A-*104,GRAY,TRIM21
sub71070-20062
main71070-20181-21i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM22
sub71070-20062
main71070-20181-C9i200208-200509
SEAT = TYPE A-*104,BLACK,TRIM20
sub71070-20062
main71070-20190-C0i199909-200208
SEAT = TYPE C-*104,BLACK,TRIM2#
sub71070-20121
main71070-20191-C3i200208-200509
SEAT = TYPE C-*104,BLACK,TRIM2#
sub71070-20122
main71070-20200-C1i200208-200509
W(SEAT HEATER) & SEAT = TYPE C-*104,BLACK,TRIM2#
main71070-20220-C1i200208-200509
W(SEAT HEATER) & SEAT = TYPE C-*104,BLACK,TRIM2#
sub71070-20200
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71051-20100i199908-200509
main71511-20810i199908-200509
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71052-20060i199908-200509
main71512-20190i199908-200509
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-20490i199908-200509
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-20490i199908-200509
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-20830i199908-200509
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71630-20830i199908-200509

17 parts on this diagram · 4 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
