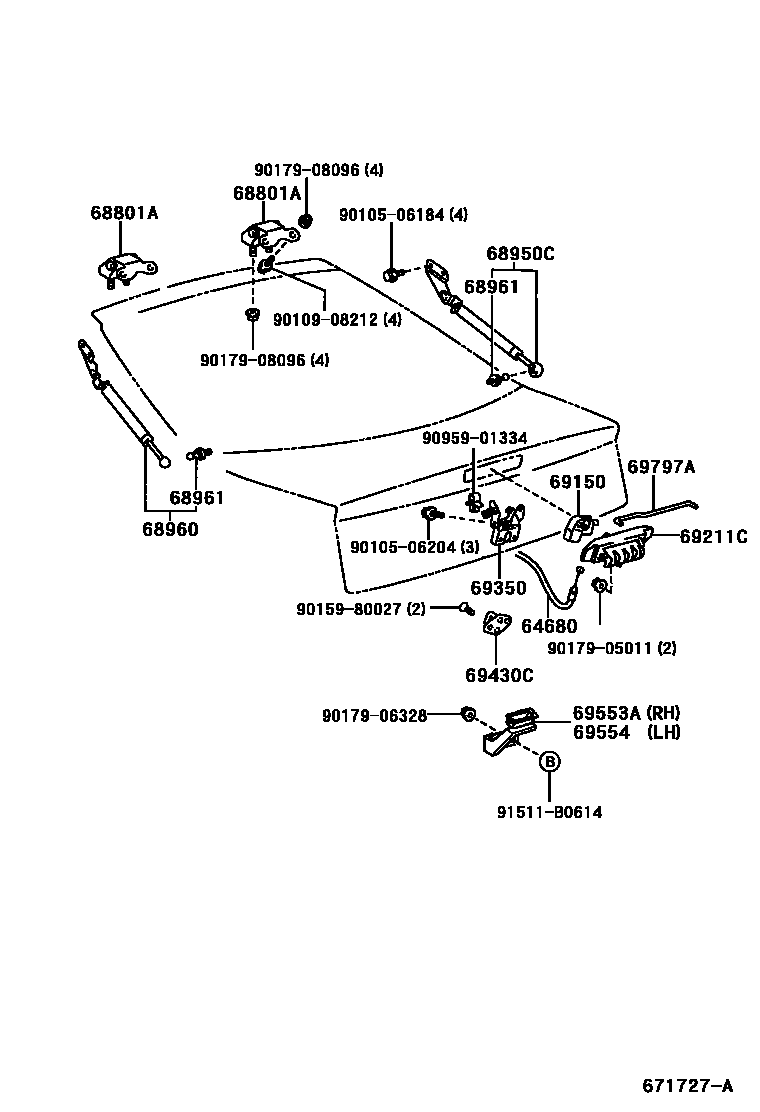

BACK DOOR LOCK & HANDLE
64680CABLE ASSY, BACK DOOR LOCK CONTROL
68801AHINGE SUB-ASSY, BACK DOOR, UPPER
68950CSTAY ASSY, BACK DOOR, RH
W(REAR WIPER)
W(REAR WIPER & REAR SPOILER)
68960STAY ASSY, BACK DOOR, LH
W(REAR WIPER)
W(REAR WIPER & REAR SPOILER)
68961BOLT, BACK DOOR STAY
69150ACTUATOR ASSY, BACK DOOR LOCK
69211CHANDLE, BACK DOOR OUTSIDE
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
69553APROTECTOR, BACK DOOR KEY CYLINDER, RH
69554PROTECTOR, BACK DOOR KEY CYLINDER, LH
69797ALINK, BACK DOOR CYLINDER TO LOCK CONTROL
9010506184
main90105-06184
9010506204
main90105-06204
9010908212
main90109-08212
9015980027
main90159-80027
9017905011
main90179-05011
9017906328
main90179-06328
9017908096
main90179-08096
9095901334
main90959-01334
91511B0614
main91511-B0614
21 parts on this diagram · 1 diagram in section
