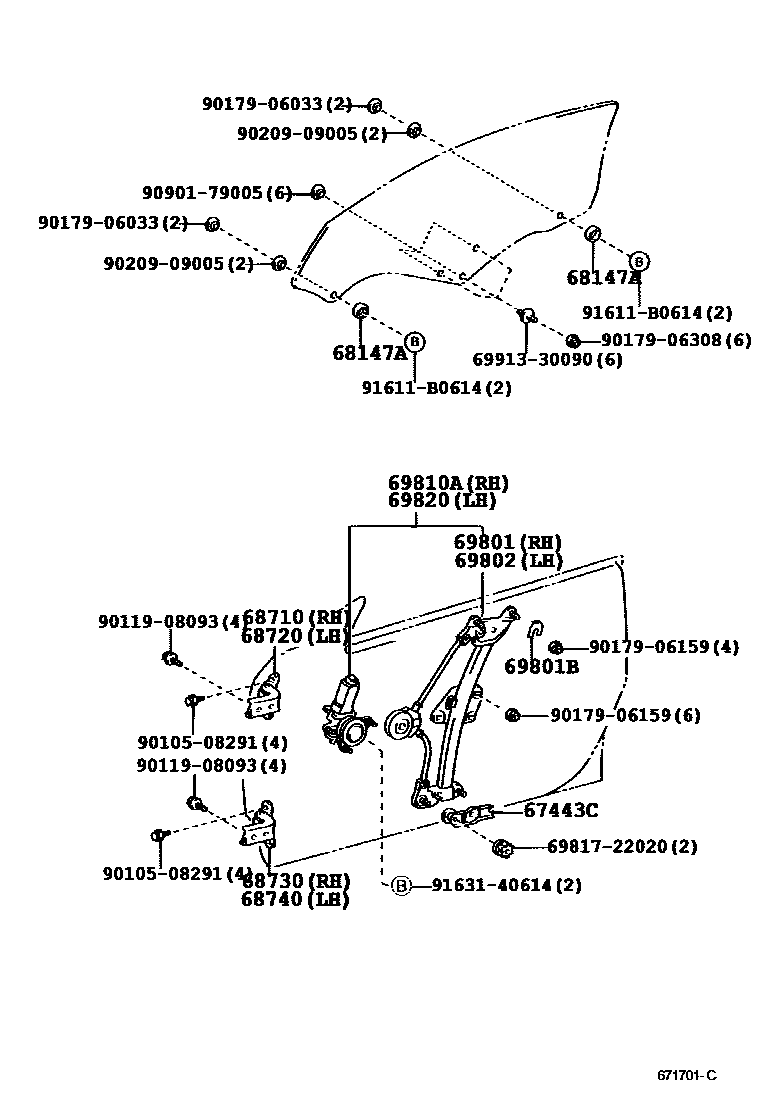

FRONT DOOR WINDOW REGULATOR & HINGE

67443CPLATE, FRONT DOOR WINDOW GUIDE, LOWER

main67443-20110iZZT23#199908-200509

68147ASTOP, FRONT DOOR GLASS, UPPER

main68147-20040iZZT23#199908-200509

REAR

main68147-22010iZZT23#199908-200509

FRONT

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12150iZZT23#199908-200509

sub68710-12151

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12150iZZT23#199908-200509

sub68720-12151

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12110iZZT23#199908-200509

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12110iZZT23#199908-200509

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20290iZZT23#199908-200509

69801BSHIM, WINDOW REGULATOR

main63277-20030iZZT23#199908-200509

T=1.0

main63277-20050iZZT23#199908-200509

T=2.0

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20310iZZT23#199908-200509

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-20400iZZT23#..LHD199908-200509

main69810-20410iZZT23#..RHD199908-200509

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-20420iZZT23#..RHD199908-200509

main69820-20430iZZT23#..LHD199908-200509

6981722020PLATE, QUARTER WINDOW REGULATOR BASE, RH

main69817-22020

6991330090BOLT, FRONT DOOR GLASS SETTING

main69913-30090

9010508291

main90105-08291

9011908093

main90119-08093

9017906033

main90179-06033

9017906159

main90179-06159

9017906308

main90179-06308

9020909005

main90209-09005

9090179005

main90901-79005

91611B0614

main91611-B0614

9163140614

main91631-40614

22 parts on this diagram · 1 diagram in section
