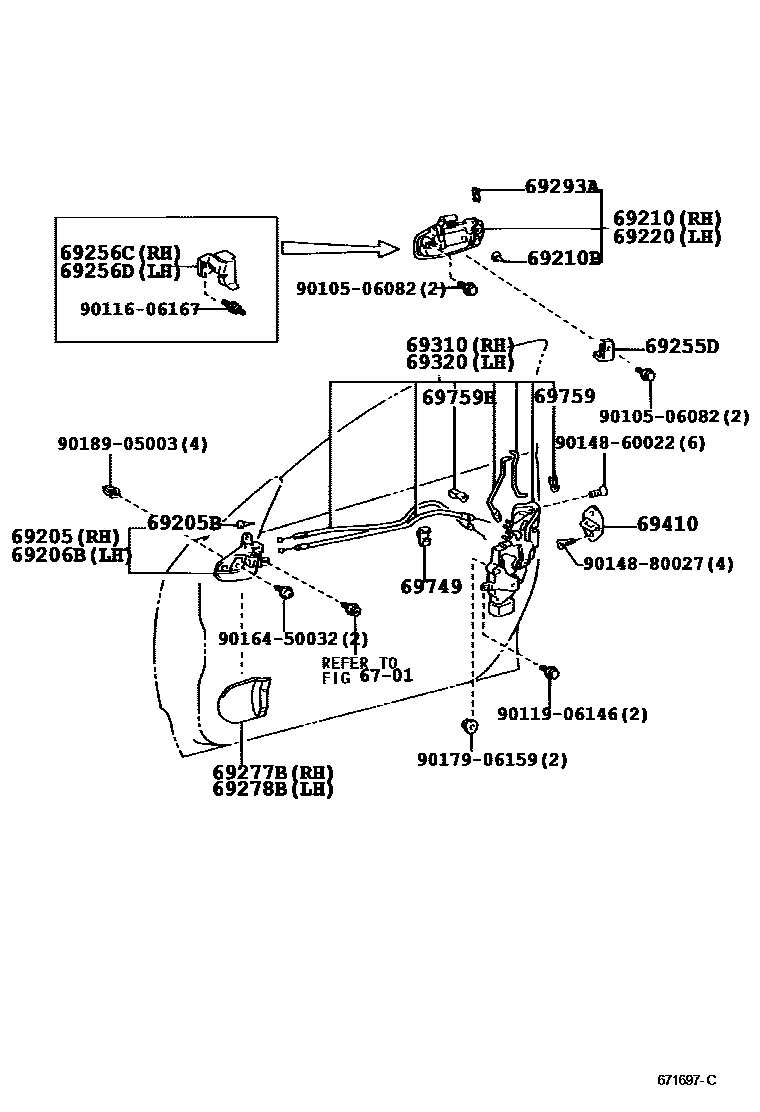

FRONT DOOR LOCK & HANDLE
6701
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM20,21,22,23
BLACK,TRIM2#,20,21,22
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#,20,21,22
BLACK,TRIM20,21,22,23
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69255DPROTECTOR, DOOR OUTSIDE HANDLE
69256CPROTECTOR, DOOR OUTSIDE HANDLE, LH
69256DPROTECTOR, DOOR OUTSIDE HANDLE, RH
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69749CLAMP, FRONT DOOR LOCK LINK
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
9010506082
main90105-06082
9011606167
main90116-06167
9011906146
main90119-06146
9014860022
main90148-60022
9014880027
main90148-80027
9016450032
main90164-50032
9017906159
main90179-06159
9018905003
main90189-05003
27 parts on this diagram · 1 diagram in section
