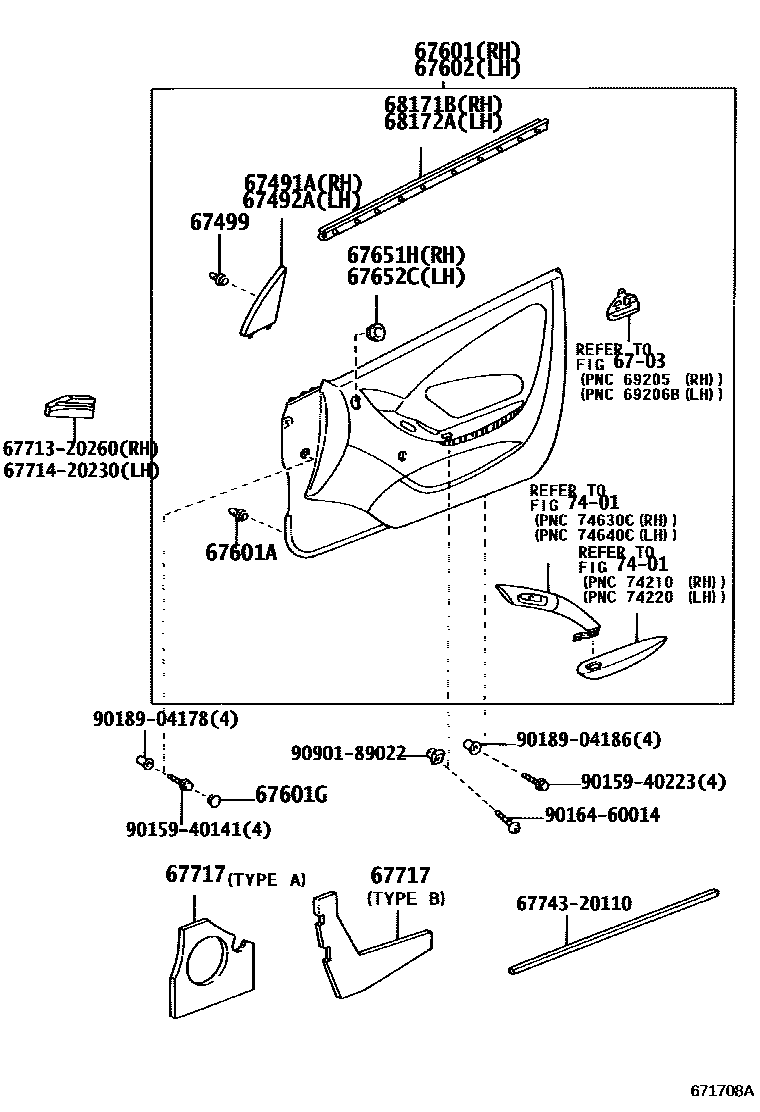

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1 0004 1

6703

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-20400iZZT23#199908-200509

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-20420iZZT23#199908-200509

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main90467-10167iZZT23#199908-200509

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-2G200-C0iZZT230..RHD199908-200008

DOOR TRIM=TYPE A-*104,BLACK,TRIM20

sub67610-2G202

main67610-2G200-C1iZZT230..RHD199908-200008

DOOR TRIM=TYPE A-*104,BLACK,TRIM21

sub67610-2G202

main67610-2G200-C2iZZT230..RHD199908-200008

DOOR TRIM=TYPE A-*104,BLACK,TRIM22

sub67610-2G202

main67610-2G680-C0iZZT230..RHD199908-200008

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM20

sub67610-2G682

main67610-2G680-C1iZZT230..RHD199908-200008

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM21

sub67610-2G682

main67610-2G680-C2iZZT230..RHD199908-200008

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM22

sub67610-2G682

main67610-2G682-C3iZZT23#..RHD200008-200208

DOOR TRIM=TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM20

sub67610-2G683

main67610-2G682-C4iZZT23#..RHD200008-200208

DOOR TRIM=TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM21

sub67610-2G683

main67610-2G682-C5iZZT23#..RHD200008-200208

DOOR TRIM=TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM22

sub67610-2G683

main67610-2G682-C6iZZT23#..RHD200208-200309

DOOR TRIM=TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM20

sub67610-2G683

main67610-2G682-C7iZZT23#..RHD200208-200309

DOOR TRIM=TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM21

sub67610-2G683

main67610-2G682-C8iZZT23#..RHD200208-200309

DOOR TRIM=TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM22

sub67610-2G683

main67610-2G683-C3iZZT23#..RHD200309-200509

DOOR TRIM=TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM20

main67610-2G683-C4iZZT23#..RHD200309-200509

DOOR TRIM=TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM21

main67610-2G683-C5iZZT23#..RHD200309-200509

DOOR TRIM=TYPE A-*104 & TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM22

main67610-2G690-C0iZZT230..RHD199908-200008

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

main67610-2G700-C0iZZT230..RHD199908-200008

DOOR TRIM=TYPE C-*104 & W(TWEETER SPEAKER),BLACK,TRIM2#

sub67610-2G702

main67610-2G702-C1iZZT23#..RHD200008-200208

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

sub67610-2G703

main67610-2G702-C2iZZT23#..RHD200208-200309

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

sub67610-2G703

main67610-2G703-C1iZZT23#..RHD200309-200509

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

main67610-2G721-C0iZZT23#..LHD200008-200208

DOOR TRIM=TYPE A-*104,BLACK,TRIM20

sub67610-2G722

main67610-2G721-C1iZZT23#..LHD200008-200208

DOOR TRIM=TYPE A-*104,BLACK,TRIM21

sub67610-2G722

main67610-2G721-C2iZZT23#..LHD200008-200208

DOOR TRIM=TYPE A-*104,BLACK,TRIM22

sub67610-2G722

main67610-2G721-C3iZZT23#..LHD200208-200309

DOOR TRIM=TYPE A-*104,BLACK,TRIM20

sub67610-2G722

main67610-2G721-C4iZZT23#..LHD200208-200309

DOOR TRIM=TYPE A-*104,GRAY,TRIM21

sub67610-2G722

main67610-2G721-C5iZZT23#..LHD200208-200309

DOOR TRIM=TYPE A-*104,BLACK,TRIM22

sub67610-2G722

main67610-2G722-C0iZZT23#..LHD200309-200509

DOOR TRIM=TYPE A-*104,BLACK,TRIM20

main67610-2G722-C1iZZT23#..LHD200309-200509

DOOR TRIM=TYPE A-*104,GRAY,TRIM21

main67610-2G722-C2iZZT23#..LHD200309-200509

DOOR TRIM=TYPE A-*104,BLACK,TRIM22

main67610-2G740-C0iZZT230..LHD199908-200008

DOOR TRIM=TYPE A-*104,BLACK,TRIM20

sub67610-2G741

main67610-2G740-C1iZZT230..LHD199908-200008

DOOR TRIM=TYPE A-*104,BLACK,TRIM21

sub67610-2G741

main67610-2G740-C2iZZT230..LHD199908-200008

DOOR TRIM=TYPE A-*104,BLACK,TRIM22

sub67610-2G741

main67610-2G760-C0iZZT230..LHD199908-200008

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

sub67610-2G761

main67610-2G770-C0iZZT230..LHD199908-200008

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM20

sub67610-2G771

main67610-2G770-C1iZZT230..LHD199908-200008

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM21

sub67610-2G771

main67610-2G770-C2iZZT230..LHD199908-200008

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM22

sub67610-2G771

main67610-2G790-C0iZZT230..LHD199908-200008

DOOR TRIM=TYPE C-*104 & W(TWEETER SPEAKER),BLACK,TRIM2#

sub67610-2G791

main67610-2G881-C0iZZT23#..LHD200008-200208

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

sub67610-2G882

main67610-2G881-C1iZZT23#..LHD200208-200309

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

sub67610-2G882

main67610-2G882-C0iZZT23#..LHD200309-200509

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main90467-10161iZZT23#199908-200509

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01800-B7iZZT23#199908-200208

AMETHYST,TRIM2#,20,21,22

sub90950-01800

main90950-01800-P0iZZT23#200208-200509

DK.GRAY,TRIM20,21,22,23

sub90950-01800

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67660-20040-C0iZZT230..RHD199908-200008

DOOR TRIM=TYPE A-*104,BLACK,TRIM20

sub67660-20042

main67660-20040-C1iZZT230..RHD199908-200008

DOOR TRIM=TYPE A-*104,BLACK,TRIM21

sub67660-20042

main67660-20040-C2iZZT230..RHD199908-200008

DOOR TRIM=TYPE A-*104,BLACK,TRIM22

sub67660-20042

main67660-20050-C0iZZT230..RHD199908-200008

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM20

sub67660-20052

main67660-20050-C1iZZT230..RHD199908-200008

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM21

sub67660-20052

main67660-20050-C2iZZT230..RHD199908-200008

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM22

sub67660-20052

main67660-20052-C3iZZT23#..RHD200008-200208

DOOR TRIM=TYPE A-*104,BLACK,TRIM20

sub67660-20053

main67660-20052-C4iZZT23#..RHD200008-200208

DOOR TRIM=TYPE A-*104,BLACK,TRIM21

sub67660-20053

main67660-20052-C5iZZT23#..RHD200008-200208

DOOR TRIM=TYPE A-*104,BLACK,TRIM22

sub67660-20053

main67660-20052-C6iZZT23#..RHD200208-200309

DOOR TRIM=TYPE A-*104,BLACK,TRIM20

sub67660-20053

main67660-20052-C7iZZT23#..RHD200208-200309

DOOR TRIM=TYPE A-*104,GRAY,TRIM21

sub67660-20053

main67660-20052-C8iZZT23#..RHD200208-200309

DOOR TRIM=TYPE A-*104,BLACK,TRIM22

sub67660-20053

main67660-20053-C3iZZT23#..RHD200309-200509

DOOR TRIM=TYPE A-*104,BLACK,TRIM20

main67660-20053-C4iZZT23#..RHD200309-200509

DOOR TRIM=TYPE A-*104,GRAY,TRIM21

main67660-20053-C5iZZT23#..RHD200309-200509

DOOR TRIM=TYPE A-*104,BLACK,TRIM22

main67660-20060-C0iZZT230..RHD199908-200008

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

main67660-20070-C0iZZT230..RHD199908-200008

DOOR TRIM=TYPE C-*104 & W(TWEETER SPEAKER),BLACK,TRIM2#

sub67660-20072

main67660-20072-C1iZZT23#..RHD200008-200208

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

sub67660-20073

main67660-20072-C2iZZT23#..RHD200208-200309

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

sub67660-20073

main67660-20073-C1iZZT23#..RHD200309-200509

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

main67660-20091-C0iZZT23#..LHD200008-200208

DOOR TRIM=TYPE A-*104,BLACK,TRIM20

sub67660-20092

main67660-20091-C1iZZT23#..LHD200008-200208

DOOR TRIM=TYPE A-*104,BLACK,TRIM21

sub67660-20092

main67660-20091-C2iZZT23#..LHD200008-200208

DOOR TRIM=TYPE A-*104,BLACK,TRIM22

sub67660-20092

main67660-20091-C3iZZT23#..LHD200208-200309

DOOR TRIM=TYPE A-*104,BLACK,TRIM20

sub67660-20092

main67660-20091-C4iZZT23#..LHD200208-200309

DOOR TRIM=TYPE A-*104,GRAY,TRIM21

sub67660-20092

main67660-20091-C5iZZT23#..LHD200208-200309

DOOR TRIM=TYPE A-*104,BLACK,TRIM22

sub67660-20092

main67660-20092-C0iZZT23#..LHD200309-200509

DOOR TRIM=TYPE A-*104,BLACK,TRIM20

main67660-20092-C1iZZT23#..LHD200309-200509

DOOR TRIM=TYPE A-*104,GRAY,TRIM21

main67660-20092-C2iZZT23#..LHD200309-200509

DOOR TRIM=TYPE A-*104,BLACK,TRIM22

main67660-20110-C0iZZT230..LHD199908-200008

DOOR TRIM=TYPE A-*104,BLACK,TRIM20

sub67660-20111

main67660-20110-C1iZZT230..LHD199908-200008

DOOR TRIM=TYPE A-*104,BLACK,TRIM21

sub67660-20111

main67660-20110-C2iZZT230..LHD199908-200008

DOOR TRIM=TYPE A-*104,BLACK,TRIM22

sub67660-20111

main67660-20130-C0iZZT230..LHD199908-200008

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

sub67660-20131

main67660-20140-C0iZZT230..LHD199908-200008

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM20

sub67660-20141

main67660-20140-C1iZZT230..LHD199908-200008

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM21

sub67660-20141

main67660-20140-C2iZZT230..LHD199908-200008

DOOR TRIM=TYPE A-*104 & W(TWEETER SPEAKER),BLACK,TRIM22

sub67660-20141

main67660-20160-C0iZZT230..LHD199908-200008

DOOR TRIM=TYPE C-*104 & W(TWEETER SPEAKER),BLACK,TRIM2#

sub67660-20161

main67660-20251-C0iZZT23#..LHD200008-200208

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

sub67660-20252

main67660-20251-C1iZZT23#..LHD200208-200309

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

sub67660-20252

main67660-20252-C0iZZT23#..LHD200309-200509

DOOR TRIM=TYPE C-*104,BLACK,TRIM2#

67651HGRILLE, SPEAKER DOOR, RH

main67651-20070-B0iZZT23#199908-200208

AMETHYST,TRIM2#,20,21,22

sub67651-20070

main67651-20070-B2iZZT23#200208-200509

DK.GRAY,TRIM20,21,22,23

sub67651-20070

67652CGRILLE, SPEAKER DOOR, LH

main67652-20060-B0iZZT23#199908-200208

AMETHYST,TRIM2#,20,21,22

sub67652-20060

main67652-20060-B2iZZT23#200208-200509

DK.GRAY,TRIM20,21,22,23

sub67652-20060

67717PAD, FRONT DOOR TRIM, CENTER RH

main67717-20280iZZT23#199908-200208

TYPE A:REFER TO ILLUSTRATION

main67717-20280iZZT23#200208-200509

TYPE A:REFER ILLUST.

main67731-20080iZZT23#199908-200208

TYPE B:REFER TO ILLUSTRATION

main67731-20080iZZT23#200208-200509

TYPE B:REFER ILLUST.

68171BWEATHERSTRIP, FRONT DOOR GLASS, INNER RH

main68171-20120iZZT23#199908-200308

sub68171-20121

main68171-20121iZZT23#200308-200509

68172AWEATHERSTRIP, FRONT DOOR GLASS, INNER LH

main68172-20110iZZT23#199908-200308

sub68172-20111

main68172-20111iZZT23#200308-200509

7401

6771320260

main67713-20260

6771420230

main67714-20230

6774320110MARK, SIDE TRIM

main67743-20110

9015940141

main90159-40141

9015940223

main90159-40223

9016460014

main90164-60014

9018904178

main90189-04178

9018904186

main90189-04186

9090189022

main90901-89022

23 parts on this diagram · 4 diagrams in section
