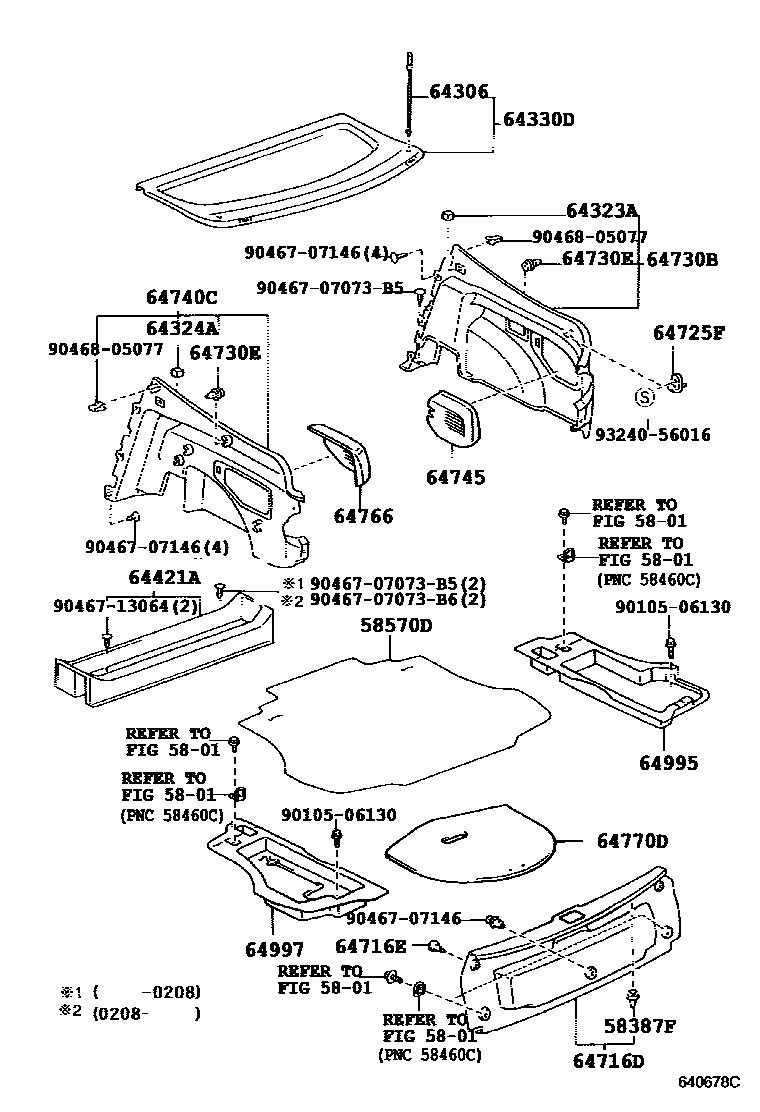

DECK BOARD & DECK TRIM COVER

5801

58387FCLIP, REAR FLOOR FINISH PLATE

main67159-32020iZZT23#¥260199908-200509

58570DCARPET ASSY, REAR FLOOR

main58570-20230-B0iZZT23#199908-200208

W(SPARE TIRE = TEMPORARY TIRE),AMETHYST,TRIM2#,20,21,22

sub58570-20231¥13,600

main58570-20230-B1iZZT23#200208-200308

W(SPARE TIRE = TEMPORARY TIRE),DARK GRAY,TRIM20,21,22,23

sub58570-20231¥13,600

main58570-20231-B1iZZT23#200308-200509

W(SPARE TIRE = TEMPORARY TIRE),DARK GRAY,TRIM20,21,22,23

main58570-20250-B0iZZT23#199908-200208

W(SPARE TIRE = GROUND TIRE),AMETHYST,TRIM2#,20,21,22

sub58570-20251¥25,300

main58570-20250-B1iZZT23#200208-200308

W(SPARE TIRE = GROUND TIRE),DARK GRAY,TRIM20,21,22,23

sub58570-20251¥25,300

main58570-20251-B1iZZT23#200308-200509

W(SPARE TIRE = GROUND TIRE),DARK GRAY,TRIM20,21,22,23

64306SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM

main64306-20060iZZT23#¥370199908-200509

64323ACLAMP, PACKAGE TRAY TRIM, RH

main64323-10040-B0iZZT23#199908-200208

AMETHYST,TRIM2#,20,21,22

sub64323-10040¥740

main64323-10040-B1iZZT23#200208-200509

DK.GRAY,TRIM20,21,22,23

sub64323-10040¥740

64324ACLAMP, PACKAGE TRAY TRIM, LH

main64324-10040-B0iZZT23#199908-200208

AMETHYST,TRIM2#,20,21,22

sub64324-10040¥740

main64324-10040-B1iZZT23#200208-200509

DK.GRAY,TRIM20,21,22,23

sub64324-10040¥740

64330DPANEL ASSY, PACKAGE TRAY TRIM

main64330-2D430-B1iZZT23#199908-200208

AMETHYST,TRIM2#,20,21,22

sub64330-2D430¥12,400

main64330-2D430-B2iZZT23#200208-200509

DARK GRAY,TRIM20,21,22,23

sub64330-2D430¥12,400

64421ATRAY, LUGGAGE COMPARTMENT

main64421-20010-B0iZZT23#199908-200208

AMETHYST,TRIM2#,20,21,22

sub64421-20010¥13,000

main64421-20010-B1iZZT23#200208-200509

DK.GRAY,TRIM20,21,22,23

sub64421-20010¥13,000

64716DCOVER, DECK TRIM, REAR

main64716-20620-B0iZZT23#199908-200208

AMETHYST,TRIM2#,20,21,22

sub64716-20620¥14,900

main64716-20620-B1iZZT23#200208-200509

DK.GRAY,TRIM20,21,22,23

sub64716-20620¥14,900

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-07073-B5iZZT23#199908-200208

AMETHYST,TRIM2#,20,21,22

sub90467-07073¥120

main90467-07073-B6iZZT23#200208-200509

MD.CHARCOAL,TRIM20,21,22,23

sub90467-07073¥120

64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main64725-20080-B0iZZT23#199908-200208

AMETHYST,TRIM2#,20,21,22

sub64725-20080¥800

main64725-20080-B1iZZT23#200208-200509

DK.GRAY,TRIM20,21,22,23

sub64725-20080¥800

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-20180-B0iZZT23#199908-200208

AMETHYST,TRIM2#,20,21,22

sub64730-20180¥21,700

main64730-20180-B1iZZT23#200208-200509

DK.GRAY,TRIM20,21,22,23

sub64730-20180¥21,700

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-10161iZZT23#¥90199908-200509

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-20180-B0iZZT23#199908-200208

AMETHYST,TRIM2#,20,21,22

sub64740-20180¥21,700

main64740-20180-B1iZZT23#200208-200509

DK.GRAY,TRIM20,21,22,23

sub64740-20180¥21,700

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-20080-B0iZZT23#199908-200208

AMETHYST,TRIM2#,20,21,22

sub64745-20080¥3,150

main64745-20080-B1iZZT23#200208-200509

DK.GRAY,TRIM20,21,22,23

sub64745-20080¥3,150

64766COVER SUB-ASSY, QUARTER TRIM JACK

main64766-20100-B0iZZT23#199908-200208

AMETHYST,TRIM2#,20,21,22

sub64766-20100¥4,550

main64766-20100-B1iZZT23#200208-200509

DK.GRAY,TRIM20,21,22,23

sub64766-20100¥4,550

64770DCOVER ASSY, SPARE WHEEL

main64770-20300iZZT23#¥3,500199908-200509

W(SPARE TIRE = TEMPORARY TIRE)

main64770-20310iZZT23#¥3,430199908-200509

W(SPARE TIRE = GROUND TIRE)

64995BOX, DECK FLOOR, RH

main64995-20010-B0iZZT23#199908-200208

AMETHYST,TRIM2#,20,21,22

sub64995-20010¥9,900

main64995-20010-B1iZZT23#200208-200509

DK.GRAY,TRIM20,21,22,23

sub64995-20010¥9,900

64997BOX, DECK FLOOR, LH

main64997-20010-B0iZZT23#199908-200208

AMETHYST,TRIM2#,20,21,22

sub64997-20010¥9,900

main64997-20010-B1iZZT23#200208-200509

DK.GRAY,TRIM20,21,22,23

sub64997-20010¥9,900

9010506130

main90105-06130¥70

9046707073B5

main90467-07073B5

9046707073B6

main90467-07073B6

9046707146

main90467-07146¥190

9046713064

main90467-13064¥170

9046805077

main90468-05077¥190

9324056016

main93240-56016¥110

26 parts on this diagram · 1 diagram in section
