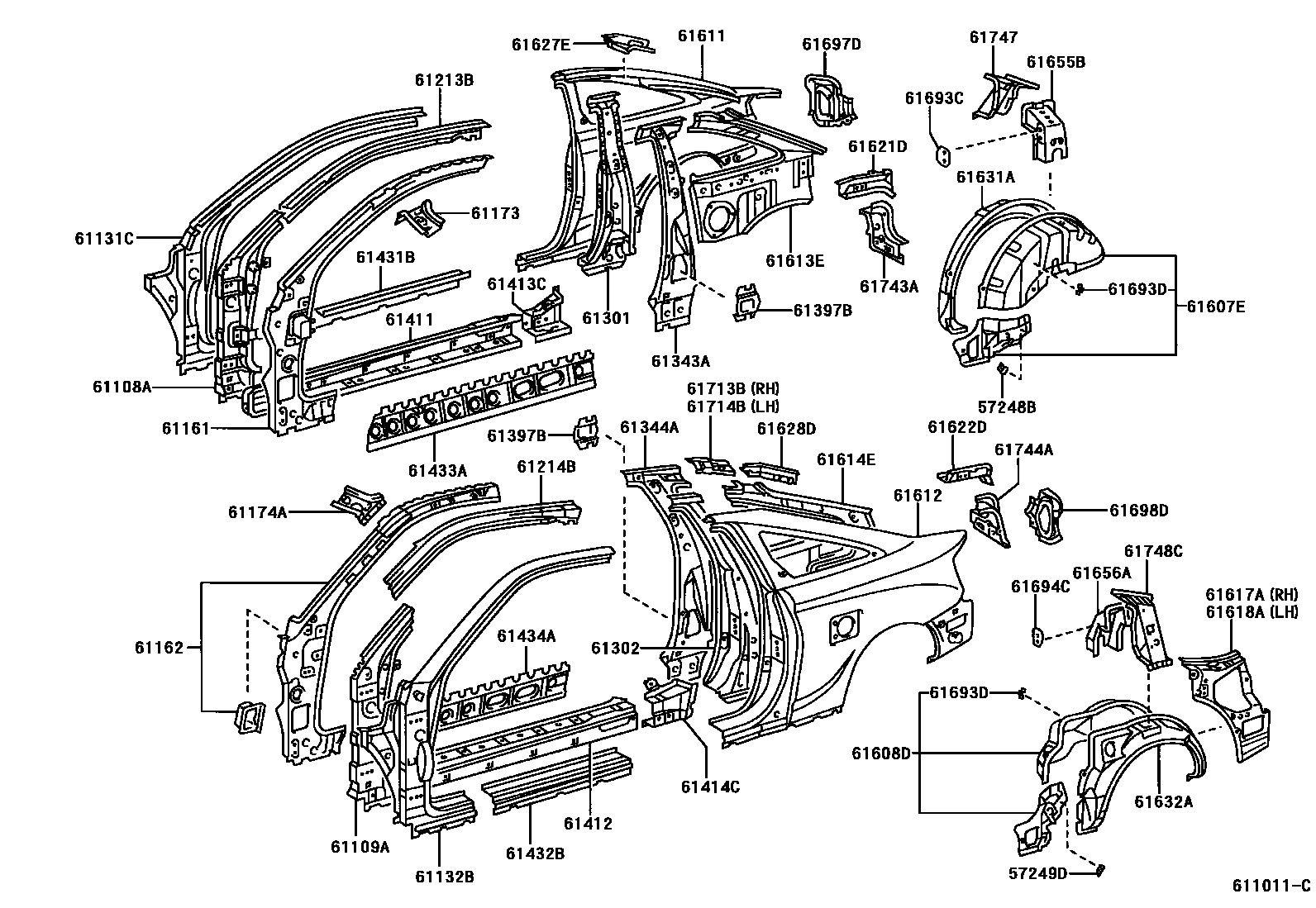

SIDE MEMBER
57248BBRACKET, FLEXIBLE HOSE, RH
57249DBRACKET, FLEXIBLE HOSE, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61131CPILLAR, FRONT BODY, OUTER RH
61132BPILLAR, FRONT BODY, OUTER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61173REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER
61174AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61214BRAIL, ROOF SIDE, OUTER NO.2 LH
61301PILLAR SUB-ASSY, CENTER BODY, RH
61302PILLAR SUB-ASSY, CENTER BODY, LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61397BRETAINER, CENTER BODY PILLAR
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH
61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH
61431BREINFORCEMENT, ROCKER PANEL, NO.6 RH
61432BREINFORCEMENT, ROCKER PANEL, NO.6 LH
61433AREINFORCEMENT, ROCKER PANEL, OUTER RH
61434AREINFORCEMENT, ROCKER PANEL, OUTER LH
61607EPANEL, QUARTER WHEEL HOUSE, INNER RH
61608DPANEL, QUARTER WHEEL HOUSE, INNER LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61613EPANEL, QUARTER, INNER RH
61614EPANEL, QUARTER, INNER LH
61617APANEL, QUARTER INNER, REAR RH
61618APANEL, QUARTER, INNER REAR LH
61621DTROUGH, BACK DOOR OPENING, RH
61622DTROUGH, BACK DOOR OPENING, LH
61627EEXTENSION, QUARTER PANEL, REAR LOWER RH
61628DEXTENSION, QUARTER PANEL, REAR LOWER LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61655BGUSSET, QUARTER WHEEL HOUSE, INNER RH
61656AGUSSET, QUARTER WHEEL HOUSE, INNER LH
61693CRETAINER, REAR SEATBACK SET, RH
61693DBRACKET, REAR WHEEL OPENING, NO.1
61694CRETAINER, REAR SEATBACK SET, LH
61697DHOUSING, QUARTER PANEL END, RH
61698DHOUSING, QUARTER PANEL END, LH
61713BREINFORCE, ROOF SIDE, OUTER RH
61714BREINFORCE, ROOF SIDE, OUTER LH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
52 parts on this diagram · 3 diagrams in section
