MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-2G100-B0iZZT23#..RHD199908-200205

DARK GRAY,TRIM2#,20,21,22

sub58510-2G101¥66,200

main58510-2G101-B0iZZT23#..RHD200205-200308

DARK GRAY,TRIM20,21,22,23

sub58510-2G102¥66,500

main58510-2G102-B0iZZT23#..RHD200308-200509

DARK GRAY,TRIM20,21,22,23

sub58510-2G112¥66,500

main58510-2G130-B0iZZT23#..LHD199908-200205

DARK GRAY,TRIM2#,20,21,22

sub58510-2G131¥66,200

main58510-2G131-B0iZZT23#..LHD200205-200308

DARK GRAY,TRIM20,21,22,23

sub58510-2G132¥66,500

main58510-2G132-B0iZZT23#..LHD200308-200509

DARK GRAY,TRIM20,21,22,23

sub58510-2G123¥65,800

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06001-C0iZZT23#199908-200509

BLACK,TRIM20,21,22,23

sub90467-06001¥110

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-08124iZZT23#..RHD¥260200301-200509

main90467-09118iZZT23#..RHD¥190199908-200301

58560BCLIP(FOR FLOOR CARPET, REAR)

main90467-06077iZZT23#¥120199908-200509

58561CSILENCER, FRONT FLOOR, NO.1

main58561-20020iZZT23#..RHD¥6,400199908-200208

main58561-20021iZZT23#..RHD¥6,400200208-200308

sub58561-20022¥6,400

main58561-20022iZZT23#..RHD¥6,400200308-200509

main58561-20040iZZT23#..LHD¥6,400199908-200208

main58561-20041iZZT23#..LHD¥6,400200208-200308

sub58561-20042¥6,400

main58561-20042iZZT23#..LHD¥6,400200308-200509

58562CSILENCER, FRONT FLOOR, NO.2

main58562-20010iZZT23#¥510200008-200509

9046706077

main90467-06077¥120

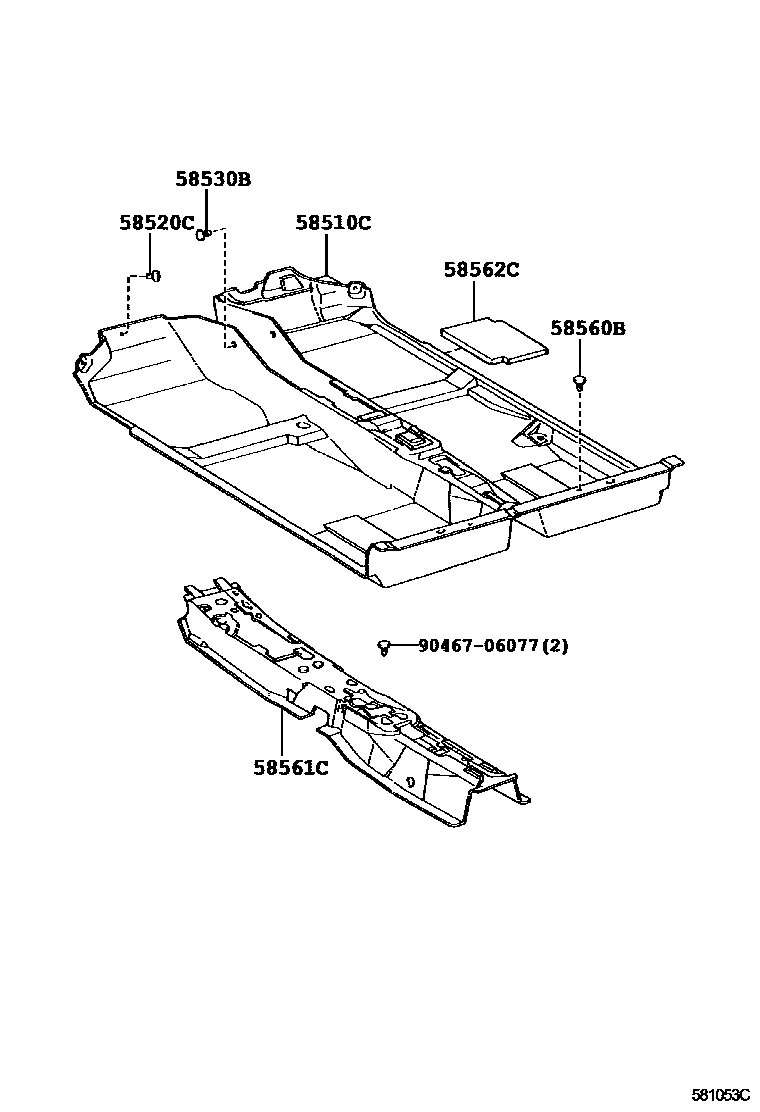

7 parts on this diagram · 1 diagram in section
