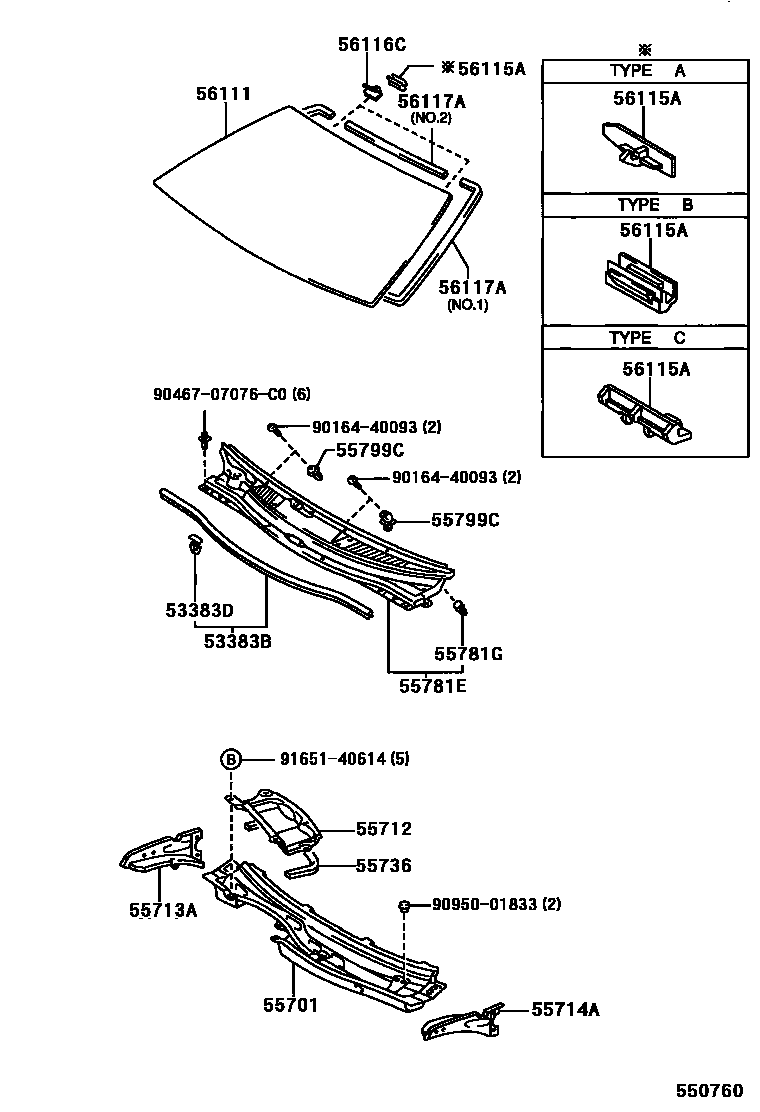

COWL PANEL & WINDSHIELD GLASS
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
55712PANEL, COWL TOP OUTSIDE, FRONT
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55736SEAL, WATER GUARD PLATE
55781GCLIP, COWL TOP VENTILATOR LOUVER
55799CCLIP, COWL TOP VENTILATOR LOUVER
BLUE
YELLOW
56111GLASS, WINDSHIELD
*TL,T=4.76
*TL,T=4.76
56115ASTOPPER, WINDSHIELD GLASS, NO.1
TYPE C:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=3204,NO.1:REFER TO ILLUSTRATION
9016440093
main90164-40093
9046707076C0
main90467-07076C0
9095001833
main90950-01833
9165140614
main91651-40614
18 parts on this diagram · 1 diagram in section
