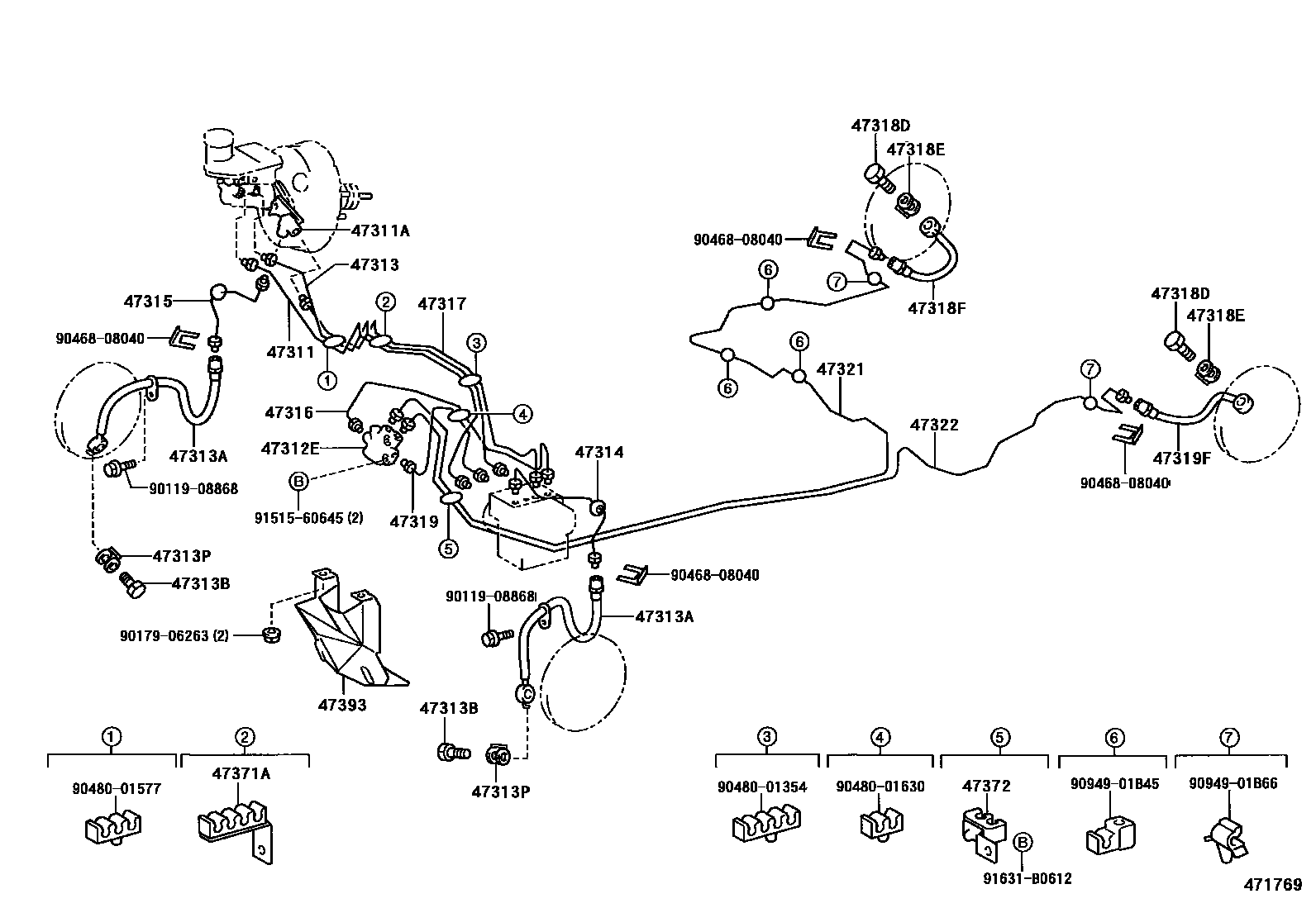

BRAKE TUBE & CLAMP
47311TUBE, FRONT BRAKE, NO.1
W(ABS)
W(VSC)
W(ABS)
W(VSC)
47311AWAY(FOR FRONT BRAKE TUBE)
47312EWAY, NO.2(FOR FRONT BRAKE TUBE)
47313TUBE, FRONT BRAKE, NO.3
W(ABS)
W(VSC)
W(ABS)
W(VSC)
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
RH
LH
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
W(ABS)
W(VSC)
W(ABS)
W(VSC)
47315TUBE, FRONT BRAKE, NO.5
47316TUBE, FRONT BRAKE, NO.6
W(ABS)
W(VSC)
W(ABS)
W(VSC)
47317TUBE, FRONT BRAKE, NO.7
W(ABS)
W(VSC)
W(ABS)
W(VSC)
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319TUBE, FRONT BRAKE, NO.9
W(ABS)
W(VSC)
W(ABS)
W(VSC)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321TUBE, REAR BRAKE, NO.1
47322TUBE, REAR BRAKE, NO.2
47371ACLAMP, BRAKE TUBE, NO.1
47372CLAMP, BRAKE TUBE, NO.2
47393INSULATOR, BRAKE TUBE HEAT
9011908868
main90119-08868
9017906263
main90179-06263
9046808040
main90468-08040
9048001354
main90480-01354
9048001577
main90480-01577
9048001630
main90480-01630
9094901B45
main90949-01B45
9094901B66
main90949-01B66
9151560645
main91515-60645
91631B0612
main91631-B0612
31 parts on this diagram · 7 diagrams in section
