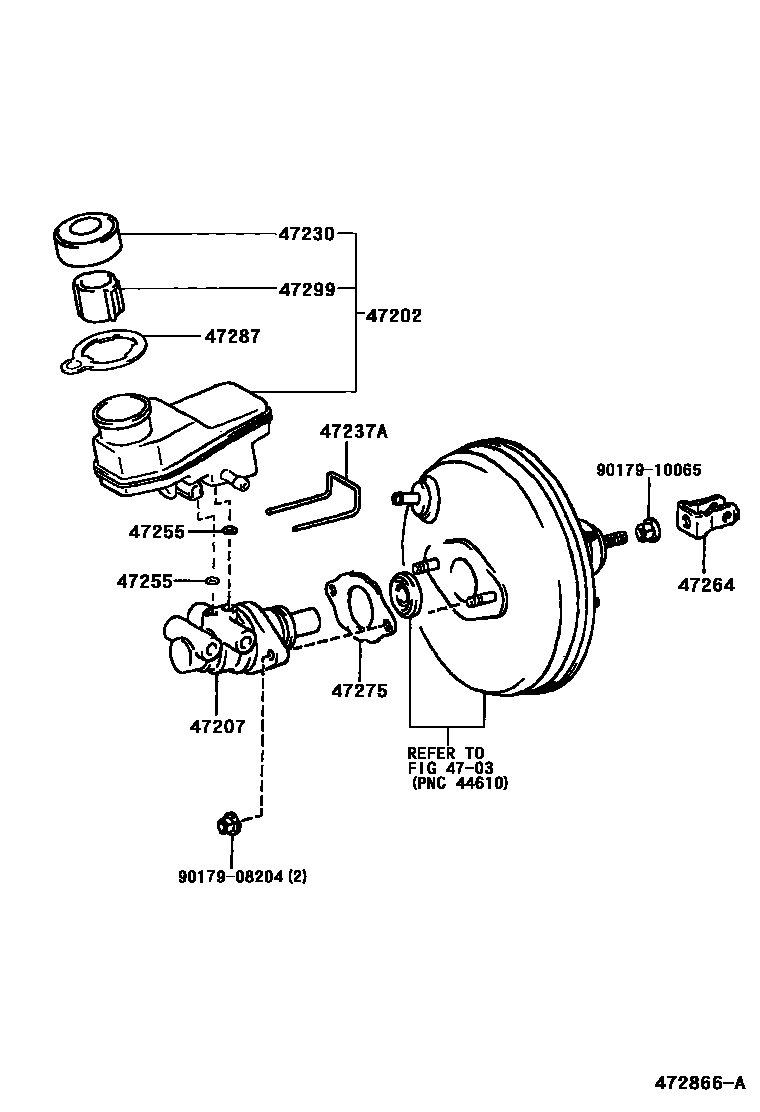

BRAKE MASTER CYLINDER

4703

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-20250iZZT23#..RHD199908-200208

sub47220-20251

main47220-20251iZZT23#..RHD200208-200509

main47220-20280iZZT23#..LHD199908-200208

sub47220-20281

main47220-20281iZZT23#..LHD200208-200509

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-20130iZZT23#..RHD199908-200311

main47207-20131iZZT230..RHD200311-200509

main47207-20140iZZT230..LHD199908-200311

main47207-20141iZZT230..LHD200311-200509

main47207-20150iZZT23#..RHD200208-200311

W(VSC)

main47207-20151iZZT23#..RHD200311-200509

W(VSC)

main47207-20160iZZT23#..LHD200208-200311

W(VSC)

main47207-20161iZZT23#..LHD200311-200509

W(VSC)

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20250iZZT23#199908-200110

sub47230-48090

main47230-48090iZZT23#200110-200509

sub47230-48091

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-20020iZZT23#199908-200509

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-52010iZZT23#199908-200509

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-32020iZZT23#199908-200311

47275GASKET, BRAKE MASTER CYLINDER

main47275-52010iZZT23#199908-200311

47287LABEL, BRAKE FLUID INFORMATION

main47287-20020iZZT231200008-200509

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52010iZZT23#199908-200509

9017908204

main90179-08204

9017910065

main90179-10065

12 parts on this diagram · 1 diagram in section
