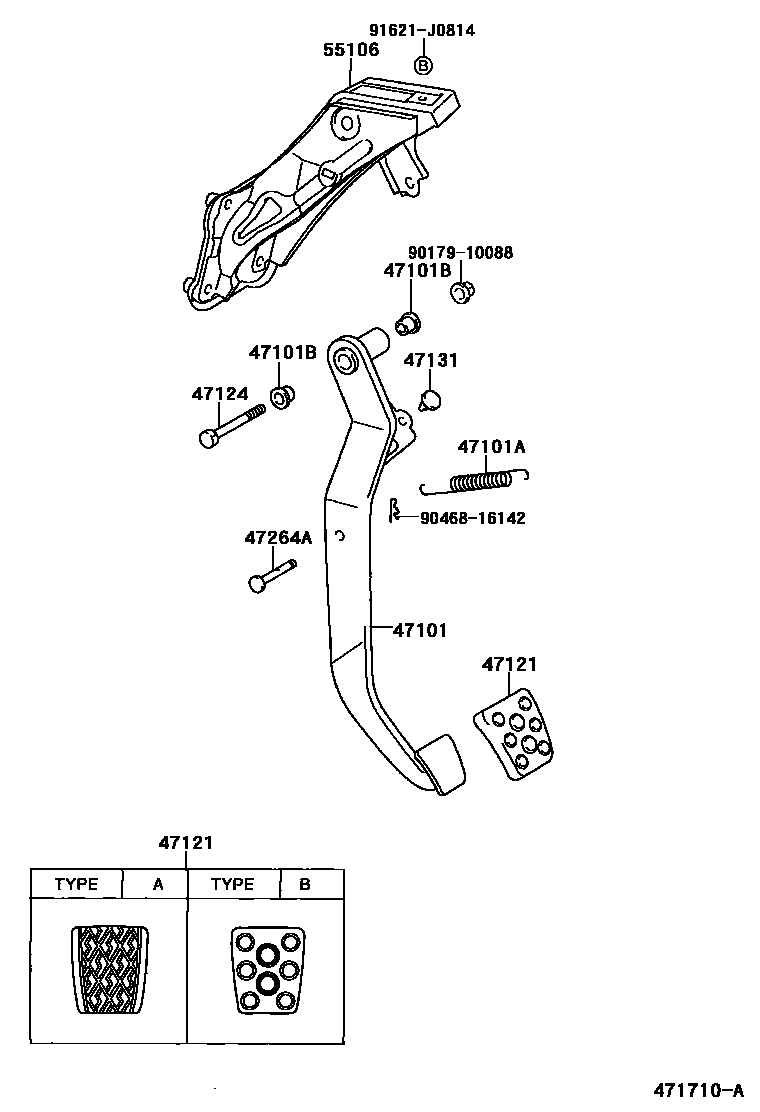

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-20580iZZT23#..RHD¥2,790199908-200509

main47101-20600iZZT23#..LHD¥2,790199908-200509

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90905-07025iZZT23#¥510199908-200509

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iZZT23#¥120199908-200509

47121PAD, BRAKE PEDAL

main31321-12040iZZT230¥380199908-200509

TYPE A:REFER TO ILLUSTRATION

main31321-53010iZZT23#¥2,330199908-200509

TYPE B:REFER TO ILLUSTRATION

47124SHAFT, BRAKE PEDAL

main90109-10167iZZT23#¥190199908-200509

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iZZT23#¥110199908-200509

47264APIN(FOR PUSH ROD)

main47148-12020iZZT23#..LHD¥250199908-200509

main47148-12060iZZT23#..RHD¥360199908-200509

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-20430iZZT23#..RHD¥3,370199908-200108

main55106-20431iZZT23#..RHD¥3,370200108-200509

main55106-20450iZZT23#..LHD¥3,370199908-200108

main55106-20451iZZT23#..LHD¥2,120200108-200509

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

91621J0814

main91621-J0814¥60

11 parts on this diagram · 1 diagram in section
