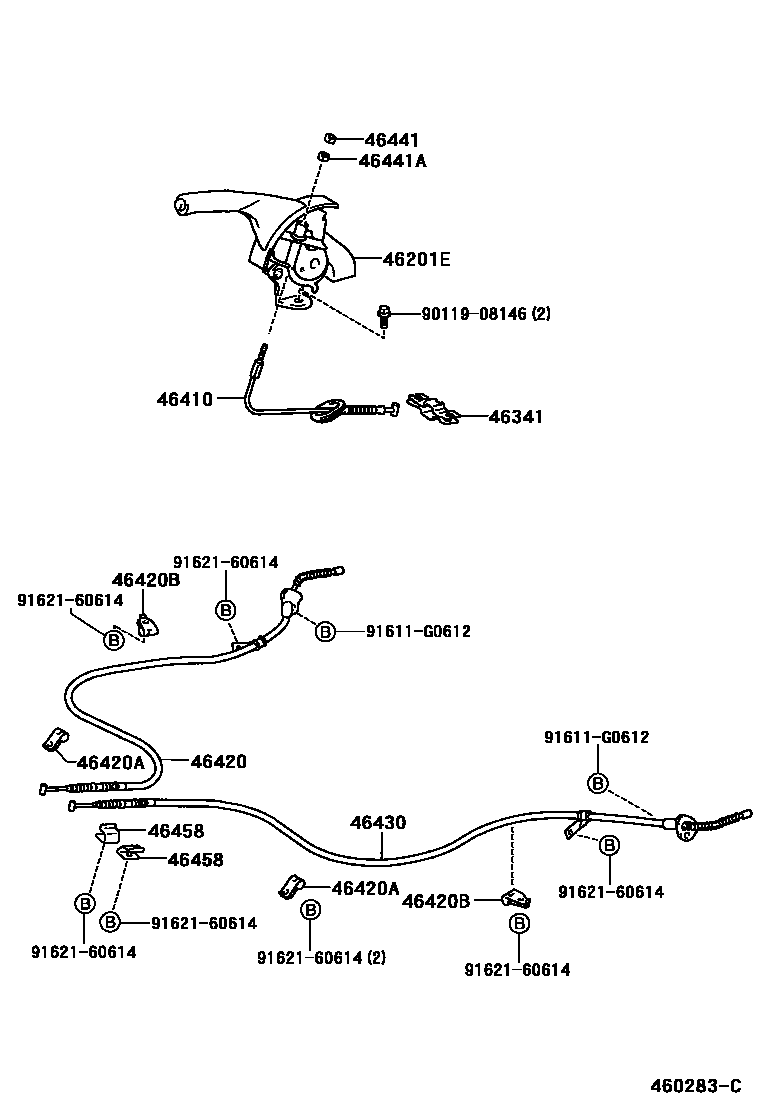

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-20360-C0iZZT23#..RHD199908-200208

BLACK,TRIM2#,20,21,22

main46201-20360-C0iZZT23#..RHD200208-200509

BLACK,TRIM20,21,22,23

main46201-20370-C0iZZT23#..LHD199908-200208

BLACK,TRIM2#,20,21,22

main46201-20370-C0iZZT23#..LHD200208-200509

BLACK,TRIM20,21,22,23

46341EQUALIZER, PARKING BRAKE

main46341-20070iZZT23#199908-200509

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-20450iZZT23#199908-200509

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-20460iZZT23#199908-200509

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01B76iZZT23#199908-200509

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01B88iZZT23#199908-200509

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-20580iZZT23#199908-200509

46441NUT, WIRE ADJUSTING, NO.1

main90179-06058iZZT23#199908-200208

sub90179-06299

main90179-06299iZZT23#200208-200509

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010iZZT23#200107-200509

main90179-06164iZZT23#199908-200107

sub90179-06171

46458RETAINER, CABLE

main46458-28010iZZT23#199908-200509

9011908146

main90119-08146

91611G0612

main91611-G0612

9162160614

main91621-60614

13 parts on this diagram · 2 diagrams in section
