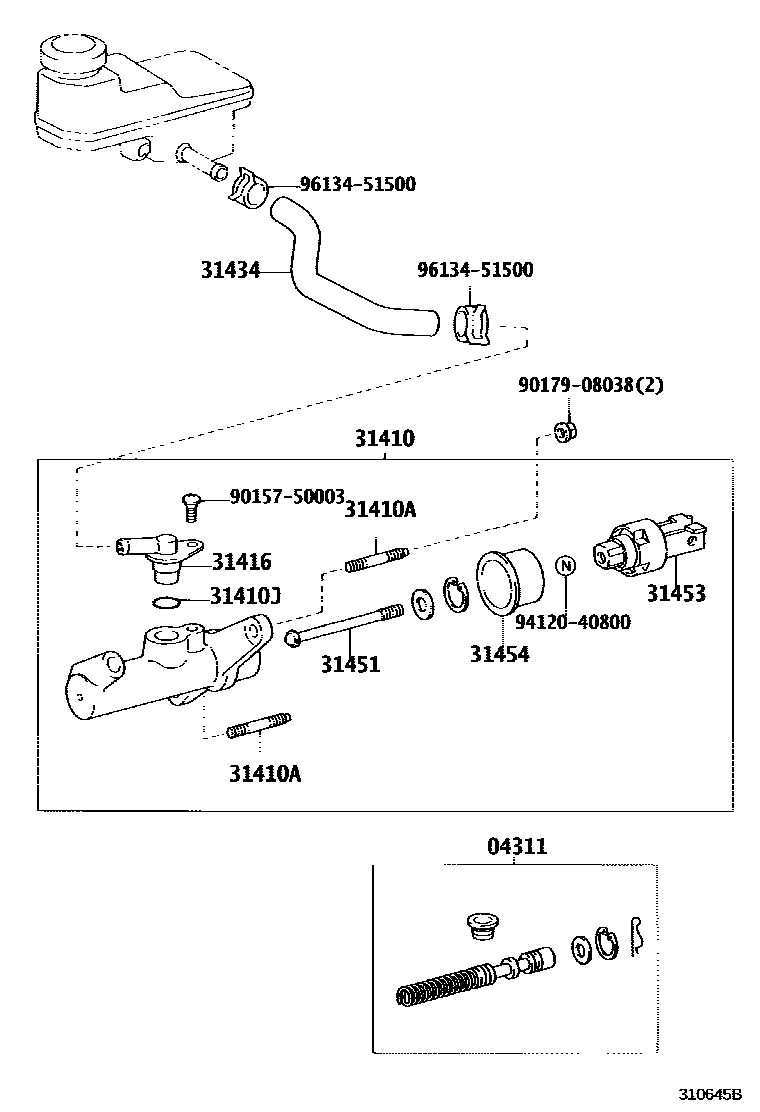

CLUTCH MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1 0005 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iZZT23#..RHD199908-200509

main04311-20090iZZT23#..RHD200507-200509

31410CYLINDER ASSY, CLUTCH MASTER

main31420-20070iZZT23#..LHD199908-200509

main31420-20080iZZT23#..RHD199908-200509

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iZZT23#199908-200208

31410JRING, O(FOR CLUTCH MASTER CYLINDER UNION)

main90301-14001iZZT23#..RHD199908-200208

31416UNION, CLUTCH MASTER CYLINDER INLET

main31416-20010iZZT23#..RHD199908-200208

main31416-20020iZZT23#..LHD199908-200208

31434TUBE, CLUTCH RESERVOIR

main31434-20020iZZT23#..RHD199908-200509

main31434-20030iZZT23#..LHD199908-200509

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22080iZZT23#..RHD199908-200208

main31451-35080iZZT23#..LHD199908-200208

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-17010iZZT23#199908-200208

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iZZT23#..LHD199908-200208

main31454-16010iZZT23#..RHD199908-200208

9015750003

main90157-50003

9017908038

main90179-08038

9412040800

main94120-40800

9613451500

main96134-51500

13 parts on this diagram · 5 diagrams in section
