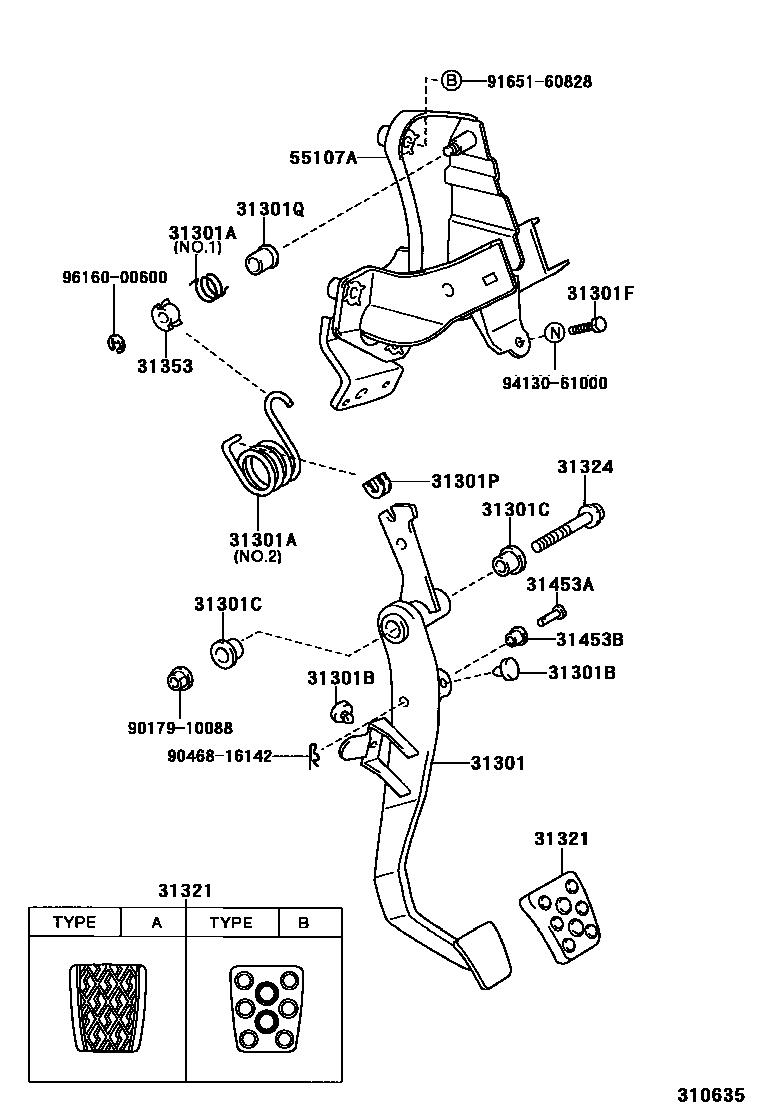

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-20500iZZT23#..RHD¥2,290199908-200509

main31301-20510iZZT23#..LHD¥2,500199908-200509

31301ASPRING(FOR CLUTCH PEDAL)

main90949-03017iZZT23#¥280199908-200509

NO.1

main90949-03090iZZT23#..RHD¥930199908-200509

NO.2

main90949-03091iZZT23#..LHD¥930199908-200509

NO.2

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iZZT23#¥110199908-200509

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iZZT23#¥120199908-200509

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iZZT23#¥110199908-200509

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90389-06055iZZT23#¥100199908-200509

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main90386-13015iZZT23#¥120199908-200509

31321PAD, CLUTCH PEDAL

main31321-12040iZZT230¥380199908-200509

TYPE A:REFER TO ILLUSTRATION

main31321-53010iZZT23#¥2,330199908-200509

TYPE B:REFER TO ILLUSTRATION

31324SHAFT, CLUTCH PEDAL

main90109-10167iZZT23#¥190199908-200509

31353HOLDER, CLUTCH PEDAL SPRING

main31353-35010iZZT23#¥660199908-200509

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-12010iZZT23#¥360199908-200509

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iZZT23#¥110199908-200509

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-20440iZZT23#..RHD¥3,370199908-200509

main55107-20450iZZT23#..LHD¥2,120199908-200509

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

9165160828

main91651-60828¥130

9413061000

main94130-61000¥70

9616000600

main96160-00600¥80

18 parts on this diagram · 4 diagrams in section
