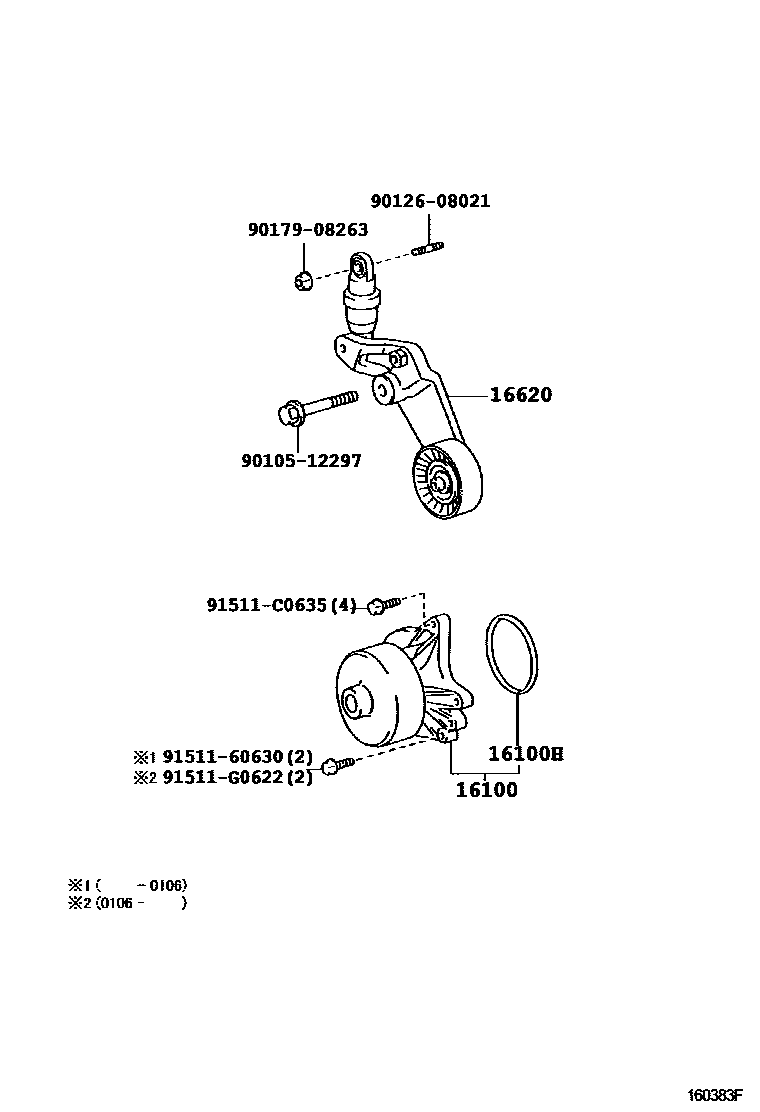

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-29095i1ZZFE..ZZT230¥8,900199908-200107

sub16100-29175¥13,000

sub91511-60622¥120

main16100-29145i2ZZGE..ZZT231¥13,000200008-200508

sub16100-29146¥13,000

sub90119-06969¥110

sub91511-G0622¥120

main16100-29146i2ZZGE..ZZT231¥13,000200508-200509

main16100-29175i1ZZFE..ZZT230¥13,000200107-200509

sub16100-29415¥11,300

16100HRING, O(FOR WATER PUMP)

main90301-69006i1ZZFE..ZZT230¥320199908-200509

main90301-69007i2ZZGE..ZZT231¥330200008-200509

16620TENSIONER ASSY, V-RIBBED BELT

main16620-22010i1ZZFE..ZZT230¥29,200199908-200106

sub16620-22011¥29,100

main16620-22011i1ZZFE..ZZT230¥29,100200106-200412

sub16620-22012¥29,100

main16620-22012i1ZZFE..ZZT230¥29,100200412-200509

sub16620-22013¥29,100

main16620-22030i2ZZGE..ZZT231¥29,200200008-200106

sub16620-22031¥29,100

main16620-22031i2ZZGE..ZZT231¥29,100200106-200412

sub16620-22032¥29,100

main16620-22032i2ZZGE..ZZT231¥29,100200412-200509

sub16620-22033¥29,100

9010512297

main90105-12297¥390

9012608021

main90126-08021¥1,090

9017908263

main90179-08263¥170

9151160630

main91511-60630¥120

91511C0635

main91511-C0635¥100

91511G0622

main91511-G0622¥120

9 parts on this diagram · 2 diagrams in section
