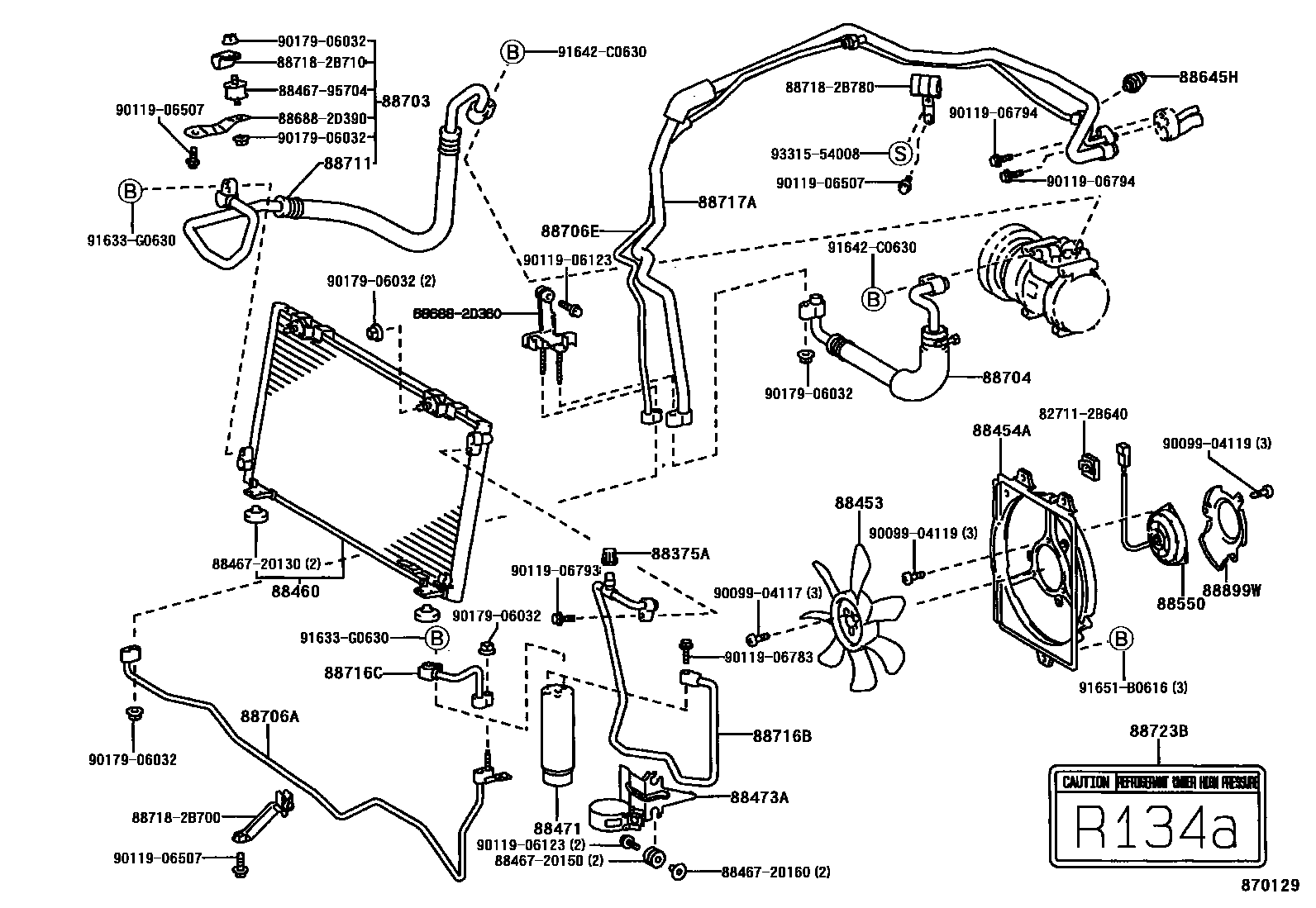

HEATING & AIR CONDITIONING - COOLER PIPING
88375ACAP, SERVICE VALVE (FOR COOLER PIPE)
88453FAN, COOLING (FOR CONDENSER)
88454ASHROUD, FAN
88460CONDENSER ASSY, COOLER
MAKER OPTION
DEALER OPTION
88471TANK, RECEIVER AIR CONDITIONER
sub88471-34010
88473AHOLDER, RECEIVER
88550MOTOR ASSY, BLOWER (FOR CONDENSER)
88645HSWITCH, PRESSURE NO.1
88703HOSE SUB-ASSY, DISCHARGE
MAKER OPTION
DEALER OPTION
88704HOSE SUB-ASSY, SUCTION
DEALER OPTION
MAKER OPTION
88706ATUBE SUB-ASSY, LIQUID, A
MAKER OPTION
DEALER OPTION
88706ETUBE SUB-ASSY, LIQUID, E
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
MAKER OPTION
DEALER OPTION
88716BPIPE, COOLER REFRIGERANT LIQUID, B
88716CPIPE, COOLER REFRIGERANT LIQUID, C
88717APIPE, COOLER REFRIGERANT SUCTION, A
88723BLABEL, COOLER SERVICE CAUTION
88899WSUPPORT SUB-ASSY, B
827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B640
8846720130CUSHION, COOLER CONDENSER, NO.1
main88467-20130
8846720150CUSHION, COOLER CONDENSER, NO.1
main88467-20150
8846720160CUSHION, COOLER CONDENSER, NO.1
main88467-20160
8846795704CUSHION, COOLER CONDENSER, NO.1
main88467-95704
886882D390BRACKET, COOLER DIAPHRAGM
main88688-2D390
887182B700PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2B700
887182B710PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2B710
887182B780PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-2B780
9009904117
main90099-04117
9009904119
main90099-04119
9011906123
main90119-06123
9011906507
main90119-06507
9011906783
main90119-06783
9011906793
main90119-06793
9011906794
main90119-06794
9017906032
main90179-06032
91633G0630
main91633-G0630
91642C0630
main91642-C0630
91651B0616
main91651-B0616
9331554008
main93315-54008
39 parts on this diagram · 5 diagrams in section
