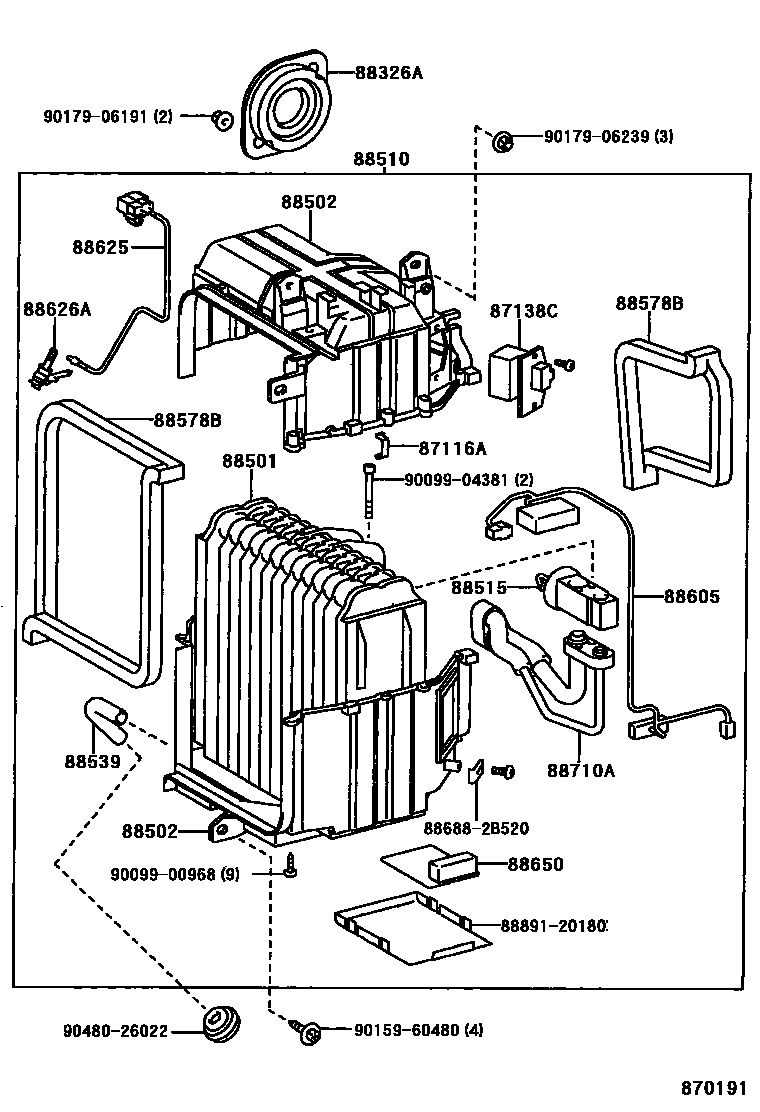

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MAKER OPTION 0002 1DEALER OPTION 0003 1

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-14010iAT200,ST20#199311

87138CRESISTOR, BLOWER

main87138-20150iST20#..LHD199311

DEALER OPTION

main87138-20180iAT200,ST20#..RHD199311

main87138-20300iAT200..LHD199311

MAKER OPTION

88326APLATE, COVER

main88326-20050iAT200,ST20#199311

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20360iST20#..RHD199311-199410

sub88501-20361

main88501-20361iST202..RHD..CVT199410-199512

main88501-20380iAT200,ST202..LHD199311-199410

sub88501-20381

main88501-20380iST205..LHD199402-199410

MAKER OPTION

sub88501-20381

main88501-20381iST205..LHD199402-199410

DEALER OPTION

main88501-20381iAT200,ST20#..LHD199410

main88501-20430iAT200,ST20#..RHD..LB199508-199512

88502CASE SUB-ASSY, COOLING UNIT

main88502-20160iAT200,ST20#..RHD199311-199508

UPPER

main88502-20160iST202..RHD..CVT199508-199512

main88502-20240iAT200,ST20#..RHD199311-199512

LOWER

main88502-20250iAT200,ST20#..LHD199311

UPPER

main88502-20260iAT200,ST20#..LHD199311

LOWER

main88502-20310iAT200,ST20#..RHD..LB199508-199512

UPPER

main88502-20340iAT200,ST20#..RHD..LB199508-199512

LOWER

88510UNIT ASSY, COOLER

main88510-2B380iST20#..RHD199311-199512

MAKER OPTION

main88510-2B390iST20#..LHD199311

MAKER OPTION

main88510-2B400iAT200..LHD199311

MAKER OPTION

main88510-2B460iST20#..RHD199311-199512

DEALER OPTION

main88510-2B470iAT200..LHD199311

DEALER OPTION

main88510-2B480iST20#..LHD199311

DEALER OPTION

main88510-2B510iAT200..RHD199505-199508

MAKER OPTION

sub88510-2B570

main88510-2B540iST202..RHD..LB199508-199512

MAKER OPTION

main88510-2B560iST205..RHD199508-199606

MAKER OPTION

main88510-2B570iAT200..RHD199508

MAKER OPTION

main88510-2B590iAT200..RHD199505-199508

DEALER OPTION

main88510-2B600iST202..RHD..LB199508-199512

DEALER OPTION

main88510-2B610iST205..RHD199508-199606

DEALER OPTION

main88510-2B620iAT200..RHD199508

DEALER OPTION

88515VALVE, COOLER EXPANSION

main88515-20100iST20#;AT200..LHD199311-199512

DEALER OPTION

sub88515-22240

main88515-20120iAT200,ST20#199311

MAKER OPTION

sub88515-22240

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-20230iST205..RHD;ST202..RHD..CVT199311-199606

MAKER OPTION

sub88539-20250

main88539-20250iAT200,ST20#..RHD199311

DEALER OPTION

main88539-20260iAT200,ST20#..LHD199311

88578BPACKING, COOLING UNIT, NO.1

main88578-20460iAT200,ST20#199311-199410

FRONT

main88578-20470iAT200,ST20#199311

REAR

main88578-20570iAT200..RHD199505-199508

main88578-20570iST205199402-199410

DEALER OPTION,FRONT

main88578-20570iAT200,ST20#199410

FRONT

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-2D290iST20#199311

main88605-2D300iAT200199311

88625THERMISTOR, COOLER, NO.1

main88625-20270iAT200,ST20#199311-199512

MAKER OPTION

main88625-60050iAT200,ST20#199311

DEALER OPTION

88626AHOLDER, THERMISTOR

main88626-28010iAT200,ST20#199311

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-2B280iST205;ST202..LHD199311-199512

main88650-2B290iAT200199311

main88650-2B420iST202..RHD..LB199508-199512

88710ATUBE ASSY, AIR CONDITIONER

main88710-20490iAT200,ST20#..RHD199311-199512

main88710-20510iAT200,ST20#..LHD199311

main88710-20580iAT200,ST20#..RHD..LB199508-199512

886882B520BRACKET, COOLER DIAPHRAGM

main88688-2B520

8889120180PACKING (FOR COOLER)

main88891-20180

9009900968

main90099-00968

9009904381

main90099-04381

9015960480

main90159-60480

9017906191

main90179-06191

9017906239

main90179-06239

9048026022

main90480-26022

22 parts on this diagram · 3 diagrams in section
