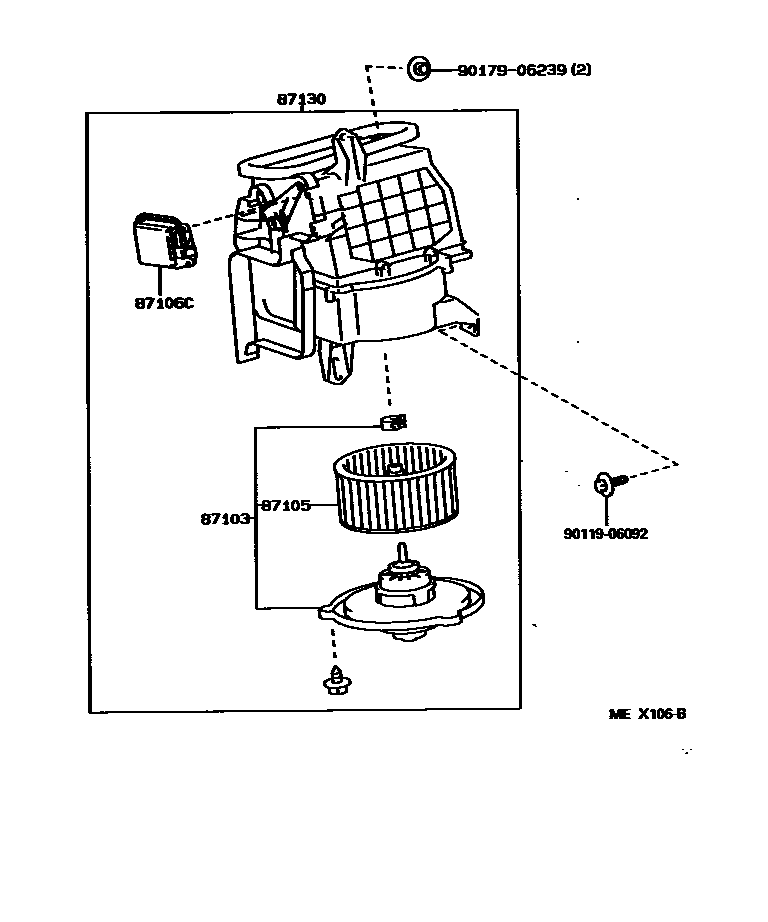

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1BLOWER 0002 1RADIATOR 0003 1

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-20050iAT200,ST20#..RHD199311

main87103-20100iAT200,ST20#..LHD199311

87105FAN SUB-ASSY, HEATER BLOWER

main87105-20100iAT200,ST20#..RHD199311

main87105-20110iAT200,ST20#..LHD199311

87106CSERVO SUB-ASSY, DAMPER(FOR BLOWER)

main87106-20160iAT200,ST20#..RHD199311

main87106-20170iAT200,ST20#..LHD199311

87130BLOWER ASSY, HEATER, FRONT

main87130-20570iAT200,ST20#..RHD199311

main87130-20580iAT200,ST20#..LHD199311

9011906092

main90119-06092

9017906239

main90179-06239

6 parts on this diagram · 3 diagrams in section
