RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1

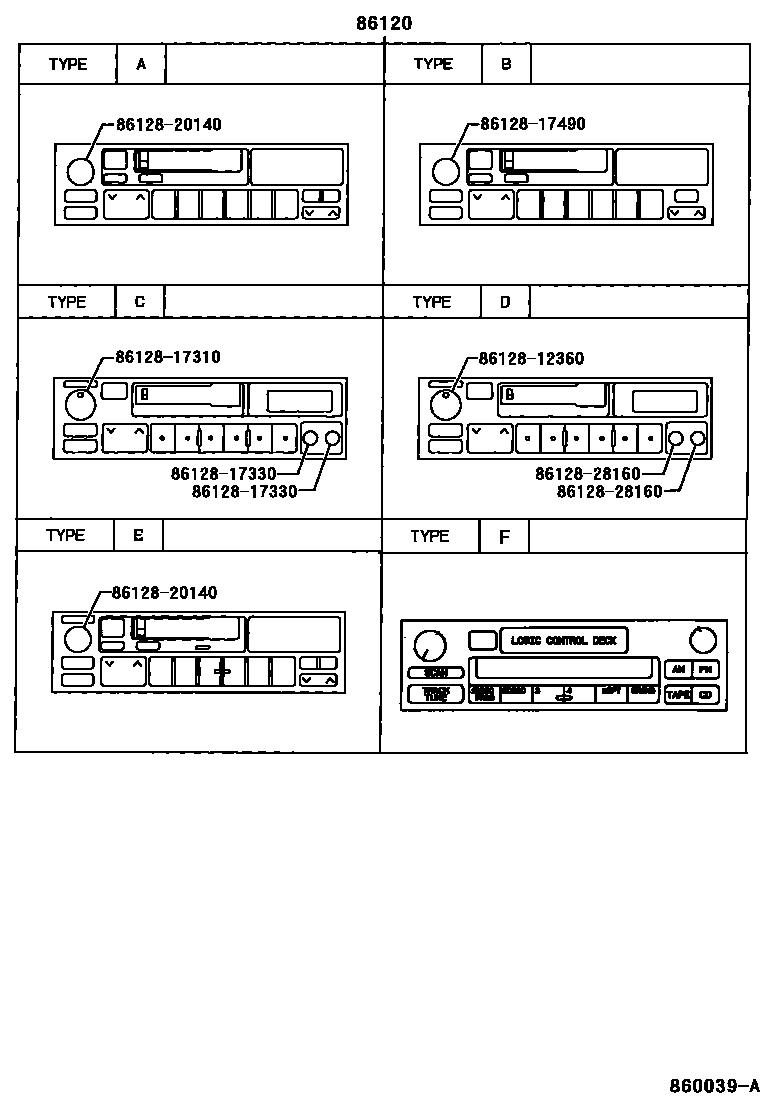

86120RECEIVER ASSY, RADIO

main86120-14820iST20#199311-199407

FUJITSU TEN,TYPE A:REFER TO ILLUSTRATION

sub86120-14821

main86120-14821iST20#199407-199505

FUJITSU TEN,TYPE A:REFER TO ILLUSTRATION

sub86120-14822

main86120-14822iST202..CVT;ST20#..LHD..LB199505-199606

FUJITSU TEN,TYPE E:REFER TO ILLUSTRATION

main86120-2B360iST202..RHD..LB199311-199712

MATSUSHITA,ID=57400,TYPE C:REFER TO ILLUSTRATION

main86120-2B400iST202..RHD..LB199311-199712

FUJITSU TEN,TYPE D:REFER TO ILLUSTRATION

main86120-2B450iAT200,ST20#199311-199606

MATSUSHITA,ID=58405,TYPE B:REFER TO ILLUSTRATION

main86120-2B560iAT200,ST202199606-199712

FUJITSU TEN,ID=18401,TYPE G:REFER TO ILLUSTRATION

main86120-2B610iST202..RHD..LB199712

FUJITSU TEN,ID=17411,TYPE F:REFER TO ILLUSTRATION

main86120-2B620iST202..RHD..LB199712

MATSUSHITA,ID=57410,TYPE F:REFER TO ILLUSTRATION

main86120-60210iAT200,ST202199606

MATSUSHITA, ID=58408,TYPE H:REFER TO ILLUSTRATION

8612812360KNOB, RADIO RECEIVER

main86128-12360

8612817310KNOB, RADIO RECEIVER

main86128-17310

8612817330KNOB, RADIO RECEIVER

main86128-17330

8612817490KNOB, RADIO RECEIVER

main86128-17490

8612820140KNOB, RADIO RECEIVER

main86128-20140

8612828160KNOB, RADIO RECEIVER

main86128-28160

7 parts on this diagram · 4 diagrams in section
