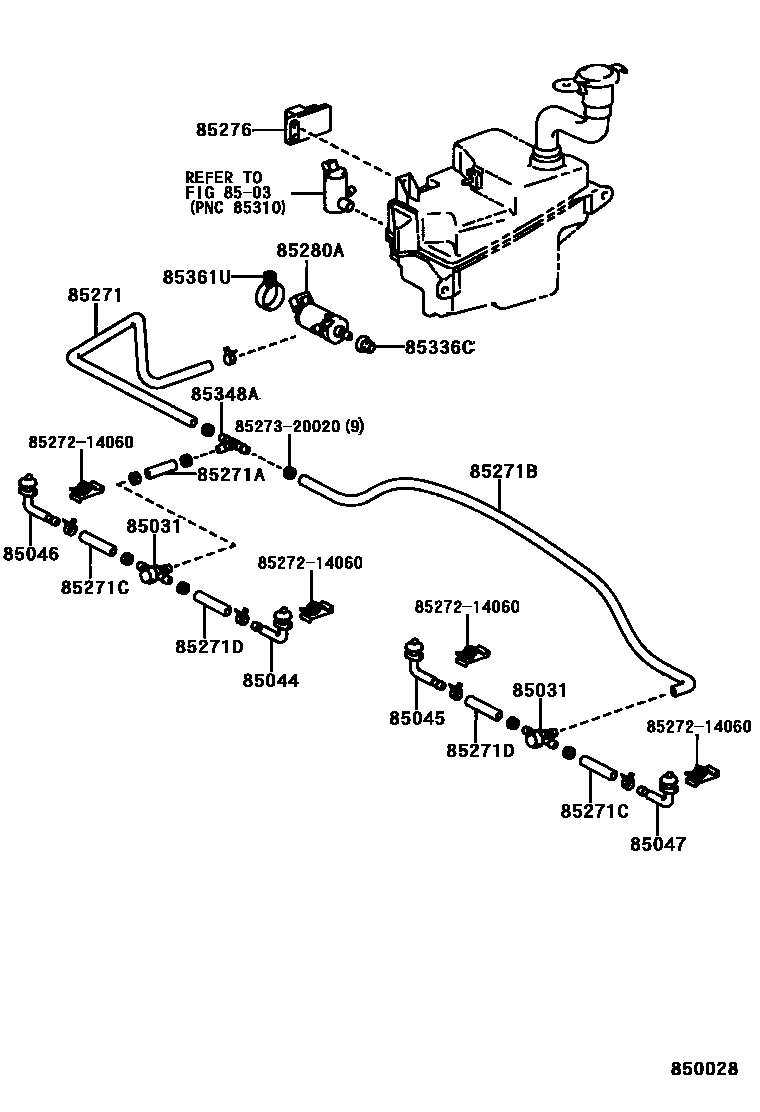

HEADLAMP CLEANER
8503
85031VALVE, HEADLAMP CLEANER WASHER HOSE
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
85046NOZZLE SUB-ASSY, TYPE2 H/LAMP WASHER, RH
85047NOZZLE SUB-ASSY, TYPE2 H/LAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
85271AHOSE, HEADLAMP CLEANER, NO.2
L=45
85271BHOSE, HEADLAMP CLEANER, NO.3
L=90
85271CHOSE, HEADLAMP CLEANER, NO.4
85271DHOSE, HEADLAMP CLEANER, NO.5
L=50
85276RELAY, CLEANER CONTROL
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85336CPACKING, HEADLAMP CLEANER MOTOR
GROUP A SPEC
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85361UBRACKET, HEADLAMP CLEANER WASHER
GROUP A SPEC
8527214060CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-14060
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
18 parts on this diagram · 2 diagrams in section
