ANTI-THEFT DEVICE

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-20010iAT200,ST202..LHD199508-199712

main89703-20020iAT200,ST202..RHD199508-199712

main89703-20030iAT200,ST202..LHD199712

main89703-20040iAT200,ST202..RHD199712

89709COMPUTER SET, TRANSPONDER KEY

main89709-20010iAT200,ST202..LHD..LB199508-199712

main89709-20020iAT200,ST202..RHD..LB199508-199712

main89709-20030iST202..LHD..CVT199512-199712

main89709-20040iST202..RHD..CVT199512-199712

main89709-20050iAT200,ST202..LHD..LB199712

main89709-20060iAT200,ST202..RHD..LB199712

main89709-20070iST202..LHD..CVT199712

main89709-20080iST202..RHD..CVT199712

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-20050iAT200,ST202..LHD..LB199508-199712

main89780-20060iAT200,ST202..RHD..LB199508-199712

main89780-20080iAT200,ST202..LHD199712

main89780-20090iAT200,ST202..RHD199712

89782COIL, TRANSPONDER KEY

main89782-20020iAT200,ST202..LB199508-199512

89783AMPLIFIER, TRANSPONDER KEY

main89783-20020iAT200,ST202..LB199508-199512

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-20020iAT200,ST202..LB199508-199512

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-20020iAT200,ST202..LB199508-199512

9015950193

main90159-50193

9017906058

main90179-06058

9331914012

main93319-14012

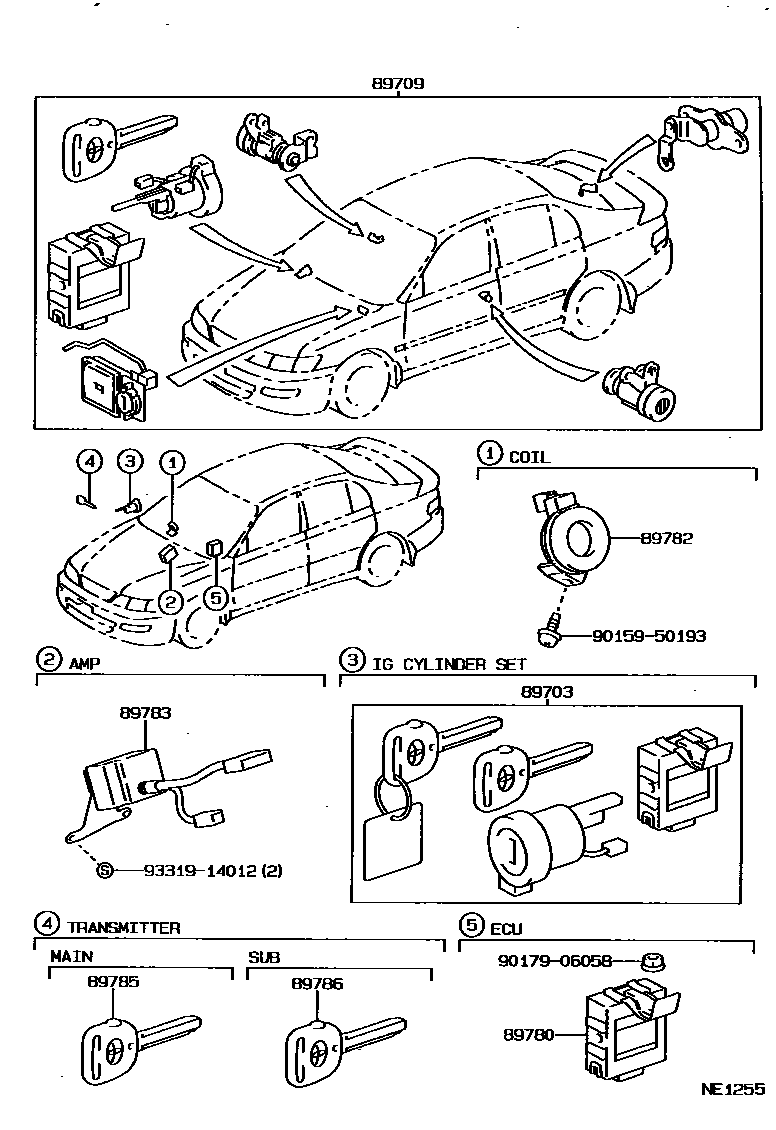

10 parts on this diagram · 1 diagram in section
