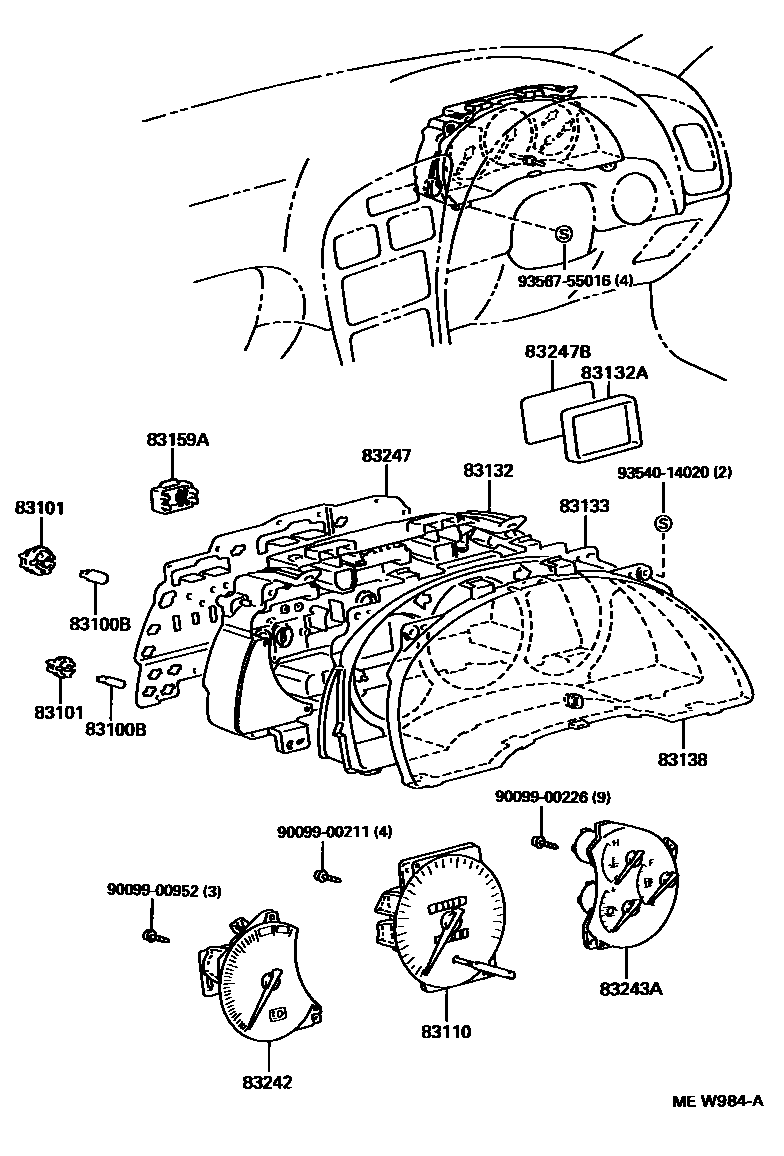

METER

0001 1 0002 1 0003 1BULB SOCKET

83100BBULB, COMBINATION METER, NO.1

main83109-24020iAT200,ST20#199311

12V3.4W W(GREEN CAP)

main83109-30070iAT200,ST20#199508-199512

14V 2.0W,W/O SOCKET

main83119-32010iAT200,ST20#199311

14V 3.0W

main90981-11018iST20#199311

12V 1.2W W/O SOCKET

main99132-12034iST202..CVT199311-199512

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030iAT200,ST20#199311

TYPE A:REFER TO ILLUSTRATION

main83101-14040iAT200;ST202..CVT199311-199512

TYPE B:REFER TO ILLUSTRATION

main83101-24010iAT200,ST20#199311

TYPE C:REFER TO ILLUSTRATION

83110SPEEDOMETER ASSY

main83110-2D500iAT200..LHD199311

main83110-2D540iST202..RHD199311

MPH & KM/H

main83110-2D540iST205..RHD199402-199606

main83110-2D550iST202;ST205..LHD199405-199512

KM/H

main83110-2D550iST20#..LHD199311-199405

main83220-20010iAT200..RHD199505

83132CASE, COMBINATION METER

main83132-2D050iST202..CVT199311-199512

main83132-2D051iAT200,ST202..LB199508-199512

main83132-2D170iST205199402-199508

main83132-2D171iST205199508-199606

83132ACASE, METER

main83132-2D210iST205199402-199606

83133PLATE, COMBINATION METER, NO.1

main83133-20690iAT200,ST20#199311

83138GLASS, SPEEDOMETER

main83138-2B370iAT200,ST20#199311

83159ASWITCH, METER, NO.2

main83159-22370iST20#199311

83242TACHOMETER ASSY, ENGINE

main83242-20770iAT200199311

main83242-20790iST202199311

main83242-20810iST205199402-199606

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-20650iAT200,ST202199311

main83243-20690iST205199402-199606

83247PLATE, METER CIRCUIT

main83247-2D090iAT200,ST202199311-199512

main83247-2D091iAT200,ST202199508-199512

main83247-2D150iST205199402-199508

main83247-2D151iST205199508-199606

83247BPLATE, METER CIRCUIT, NO.2

main83247-2D290iST205199402-199606

9009900211

main90099-00211

9009900226

main90099-00226

9009900952

main90099-00952

9354014020

main93540-14020

9356755016

main93567-55016

17 parts on this diagram · 3 diagrams in section
