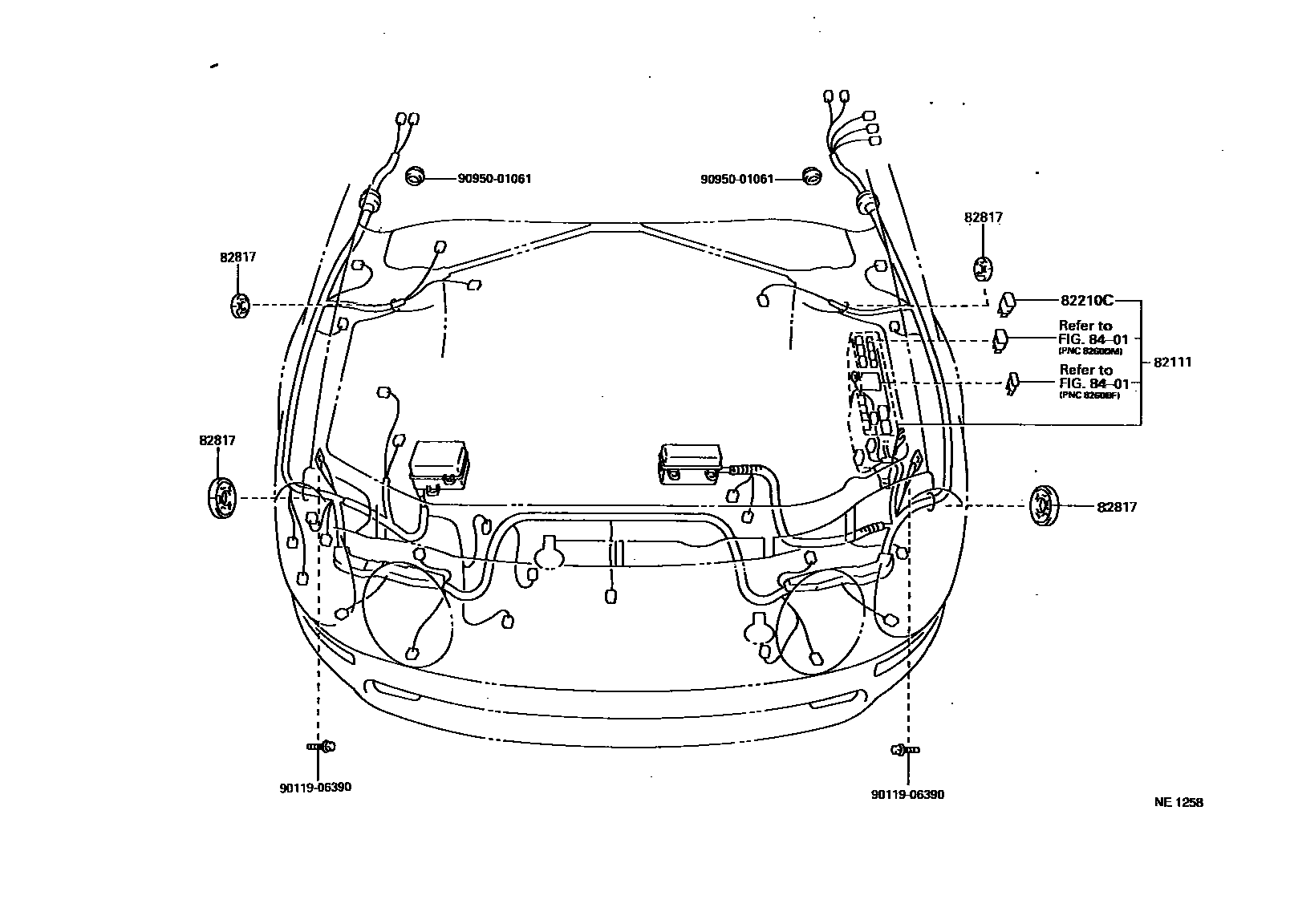

WIRING & CLAMP

82111WIRE, ENGINE ROOM MAIN

main82111-2G830i199311-199512

main82111-2G840i199311-199512

W(ABS)

main82111-2G850i199402-199508

W/O(ABS)

main82111-2G860i199402-199508

main82111-2G870i199311-199505

W(HEADLAMP LEVELING)

sub82111-2G871

main82111-2G871i199505-199512

W(HEADLAMP LEVELING)

main82111-2G880i199311-199505

W(ABS & HEADLAMP LEVELING)

sub82111-2G881

main82111-2G881i199505-199512

W(ABS & HEADLAMP LEVELING)

main82111-2G890i199402-199508

W/O(ABS) & W(HEADLAMP LEVELING)

main82111-2H010i199402-199508

W(HEADLAMP LEVELING)

main82111-2H020i199311-199512

main82111-2H030i199311-199512

W(ABS)

main82111-2H040i199402-199508

W/O(ABS)

main82111-2H050i199402-199508

main82111-2H060i199311-199512

W(HEADLAMP LEVELING & *FRG)

main82111-2H070i199311-199512

W(ABS & HEADLAMP LEVELING & *FRG)

main82111-2H080i199402-199508

W(HEADLAMP LEVELING & *FRG)

main82111-2H090i199402-199508

W(ABS & HEADLAMP LEVELING & *FRG)

main82111-2H100i199311-199512

DENMARK OR NORWAY OR SWEDEN SPEC

main82111-2H110i199311-199512

W(ABS & DENMARK OR NORWAY OR SWEDEN SPEC)

main82111-2H120i199402-199508

DENMARK OR NORWAY OR SWEDEN SPEC

main82111-2H130i199402-199508

W(ABS & DENMARK OR NORWAY OR SWEDEN SPEC)

main82111-2H270i199311-199512

W(HEADLAMP LEVELING)

main82111-2H280i199311-199512

W(ABS & HEADLAMP LEVELING)

main82111-2H290i199402-199508

W/O(ABS) & W(HEADLAMP LEVELING)

main82111-2H300i199402-199508

W(HEADLAMP LEVELING)

main82111-2H840i199508-199606

main82111-2H841i199606-199712

main82111-2H842i199712

main82111-2H850i199508-199606

main82111-2H860i199508-199606

main82111-2H861i199606-199711

sub82111-2H862

main82111-2H862i199711

main82111-2H870i199508-199606

W(ABS)

main82111-2H871i199606-199712

W(ABS)

main82111-2H872i199712

W(ABS)

main82111-2H880i199508-199606

main82111-2H890i199508-199606

FINLAND SPEC OR W(WVTA VIN PLATE)

main82111-2H891i199606-199711

FINLAND SPEC OR W(WVTA VIN PLATE)

sub82111-2H892

main82111-2H892i199711

FINLAND SPEC OR W(WVTA VIN PLATE)

main82111-2L010i199508-199606

FINLAND SPEC & W(ABS & WVTA VIN PLATE)

main82111-2L011i199606-199712

FINLAND SPEC & W(ABS & WVTA VIN PLATE)

main82111-2L012i199712

FINLAND SPEC & W(ABS & WVTA VIN PLATE)

main82111-2L020i199508-199606

FINLAND SPEC OR W(WVTA VIN PLATE)

main82111-2L030i199508-199606

*FRG

main82111-2L031i199606-199711

*FRG

sub82111-2L032

main82111-2L032i199711

*FRG

main82111-2L040i199508-199606

W(ABS & *FRG)

main82111-2L041i199606-199712

W(ABS & *FRG)

main82111-2L042i199712

W(ABS & *FRG)

main82111-2L050i199508-199606

*FRG

main82111-2L060i199508-199711

DENMARK OR NORWAY SPEC

sub82111-2L061

main82111-2L061i199711

DENMARK OR NORWAY SPEC

main82111-2L070i199508-199606

W(ABS & DENMARK OR NORWAY OR SWEDEN SPEC)

main82111-2L071i199606-199712

W(ABS & DENMARK OR NORWAY OR SWEDEN SPEC)

main82111-2L072i199712

W(ABS & DENMARK OR NORWAY OR SWEDEN SPEC)

main82111-2L080i199508-199606

DENMARK OR NORWAY OR SWEDEN SPEC

main82111-2L090i199508-199606

DENMARK SPEC & W(WVTA VIN PLATE)

main82111-2L091i199606-199711

DENMARK SPEC & W(WVTA VIN PLATE)

sub82111-2L092

main82111-2L092i199711

DENMARK SPEC & W(WVTA VIN PLATE)

main82111-2L100i199508-199606

DENMARK SPEC & W(ABS & WVTA VIN PLATE)

main82111-2L101i199606-199712

DENMARK SPEC & W(ABS & WVTA VIN PLATE)

main82111-2L102i199712

DENMARK SPEC & W(ABS & WVTA VIN PLATE)

main82111-2L110i199508-199606

DENMARK SPEC & W(WVTA VIN PLATE)

82210CFUSIBLE LINK

main90982-08189i199311

40A,TERM.:FEMALE,GRN

main90982-08190i199311

60A,TERM.:FEMALE,YEL

main90982-08227i199311

50A,TERM.:FEMALE,RED

main90982-08246i199311

100A,TERM.:MALE,BLUE

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-2B730i199311

REAR

main82817-2D840i199311

FRONT

8401

9011906390

main90119-06390

9095001061

main90950-01061

6 parts on this diagram · 10 diagrams in section
