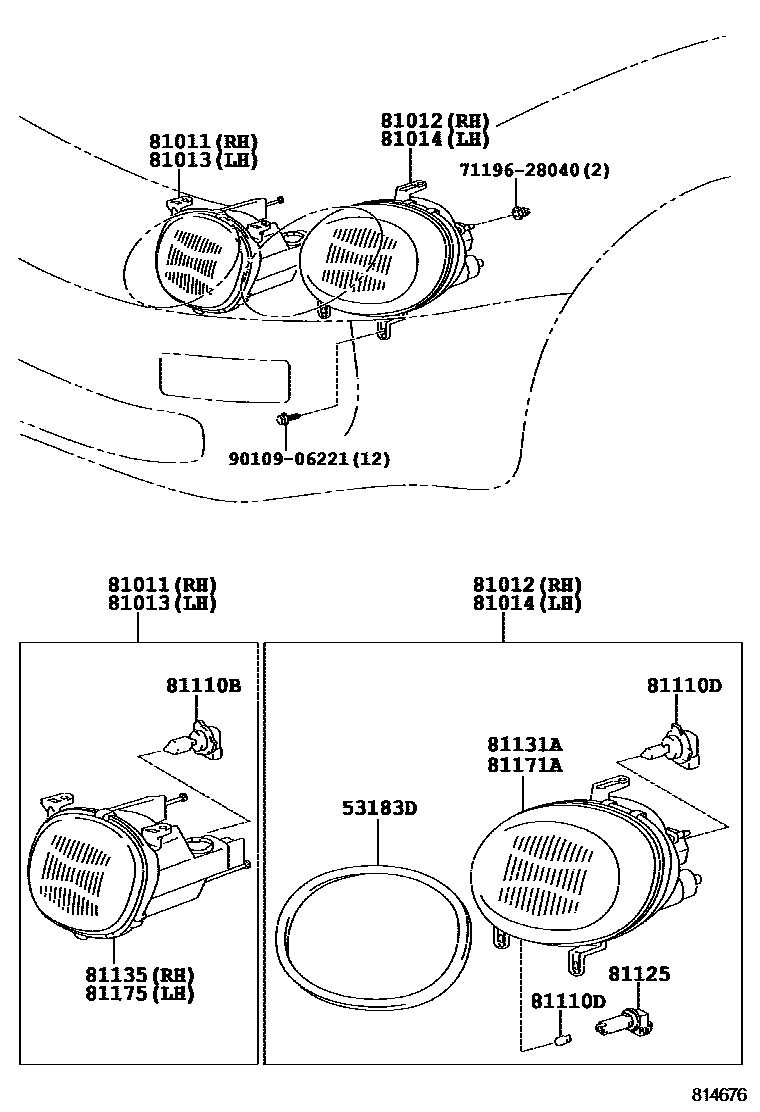

HEADLAMP
53183DSEAL, HEADLAMP COVER TO HOOD
RH
LH
81011HEADLAMP SUB-ASSY, NO.1
81012HEADLAMP SUB-ASSY, NO.2
W(LIGHT DISTRIBUTION FOR LHD)
W(LEVELING & LIGHT DISTRIBUTION FOR LHD)
W(LEVELING)
W(LEVELING)
W(LEVELING)
W(LIGHT DISTRIBUTION FOR LHD)
81013HEADLAMP SUB-ASSY, TYPE 1, LH
81014HEADLAMP SUB-ASSY, TYPE 2, LH
W(LIGHT DISTRIBUTION FOR LHD)
W(LEVELING & LIGHT DISTRIBUTION FOR LHD)
W(LEVELING)
W(LEVELING)
W(LEVELING)
W(LIGHT DISTRIBUTION FOR LHD)
81110BBULB(FOR HEADLAMP, NO.1)
81110DBULB(FOR HEADLAMP, NO.2)
12V 5W
81125CORD, HEADLAMP
81131AUNIT, HEADLAMP, RH
W(LIGHT DISTRIBUTION FOR LHD)
W(LEVELING)
W(LEVELING & LIGHT DISTRIBUTION FOR LHD)
W(LEVELING)
W(LIGHT DISTRIBUTION FOR LHD)
W(LEVELING)
81135UNIT ASSY, HEADLAMP, RH
81171AUNIT, HEADLAMP, LH
W(LIGHT DISTRIBUTION FOR LHD)
W(LEVELING & LIGHT DISTRIBUTION FOR LHD)
W(LEVELING)
W(LEVELING)
W(LEVELING)
W(LIGHT DISTRIBUTION FOR LHD)
81175UNIT ASSY, HEADLAMP, LH
7119628040CLIP(FOR REAR SPOILER)
main71196-28040
9010906221
main90109-06221
14 parts on this diagram · 1 diagram in section
