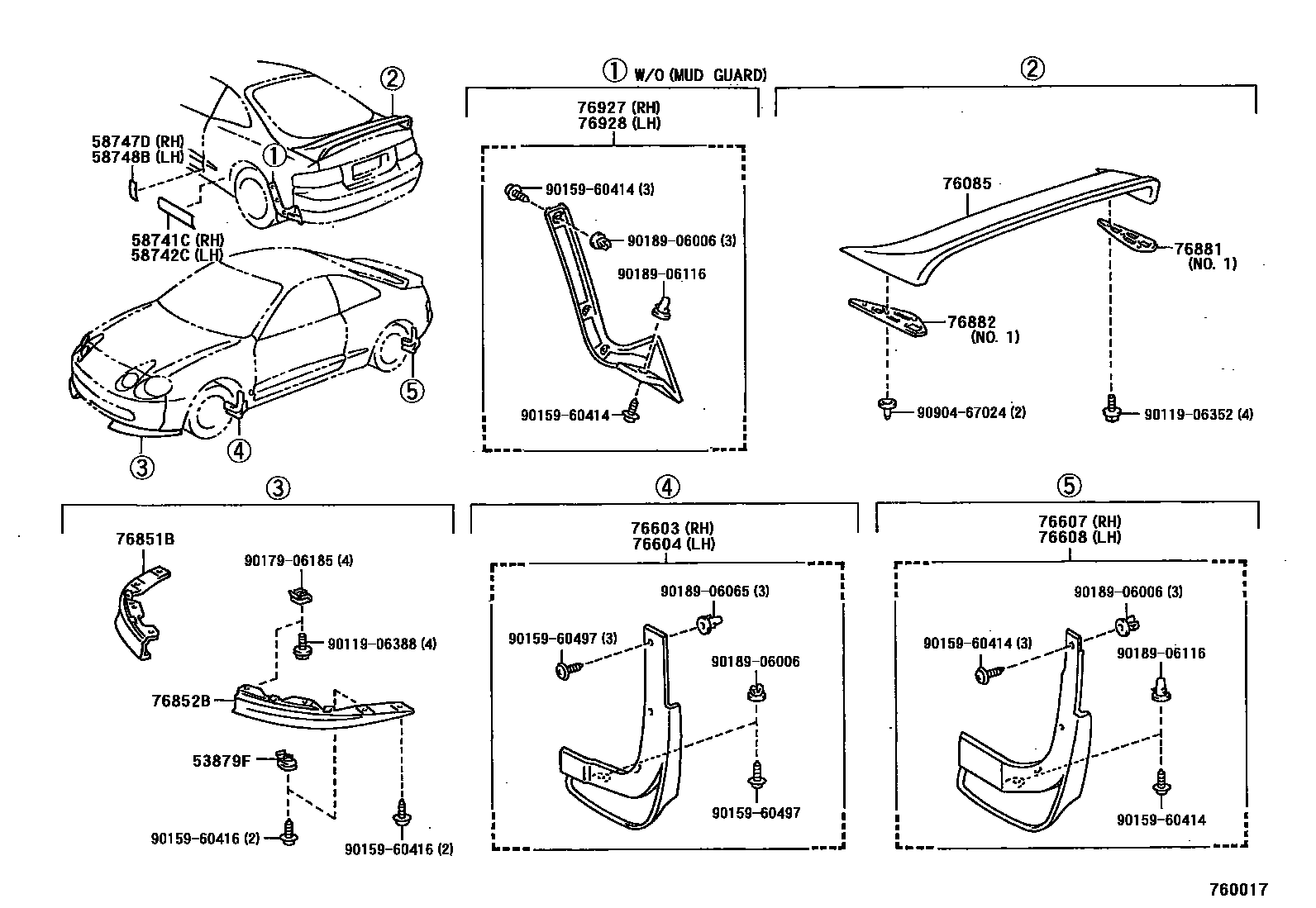

MUDGUARD & SPOILER

0001 1 0002 1(GROUP A PACK) 0003 1 0004 1 0005 1

53879FRETAINER, FRONT FENDER LINER

main53879-14010iST20#..LB199311

58741CPROTECTOR, QUARTER PANEL, RH

main58741-20140iAT200,ST20#199311-199508

58742CPROTECTOR, QUARTER PANEL, LH

main58742-20130iAT200,ST20#199311-199508

58747DPROTECTOR, QUARTER PANEL, REAR RH

main58747-20020iAT200,ST20#199311

58748BPROTECTOR, QUARTER PANEL, REAR LH

main58748-20020iAT200,ST20#199311

76085SPOILER SUB-ASSY, REAR

main76085-20915iST20#199311-199508

sub76085-20920

main76871-20911iAT200,ST20#..LB199508

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-29165iAT200,ST20#..LB199311-199508

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-29165iAT200,ST20#..LB199311-199508

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-29195iAT200,ST20#199311

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-29195iAT200,ST20#199311

76851BSPOILER, FRONT, RH

main76851-20040iST20#..LB199311

76852BSPOILER, FRONT, LH

main76852-20030iST20#..LB199311

76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH

main76881-20080iST20#199311-199508

main76881-20090iST205199402-199410

GROUP A SPEC

76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH

main76882-20080iAT200,ST20#..LB199311-199508

main76882-20090iST205199402-199410

GROUP A SPEC

76927PROTECTER, REAR MUDGUARD, RH

main76927-29015iAT200,ST20#..LB199311-199512

76928PROTECTER, REAR MUDGUARD, LH

main76928-29015iAT200,ST20#..LB199311-199512

9011906352

main90119-06352

9011906388

main90119-06388

9015960414

main90159-60414

9015960416

main90159-60416

9015960497

main90159-60497

9017906185

main90179-06185

9018906006

main90189-06006

9018906065

main90189-06065

9018906116

main90189-06116

9090467024

main90904-67024

26 parts on this diagram · 5 diagrams in section
