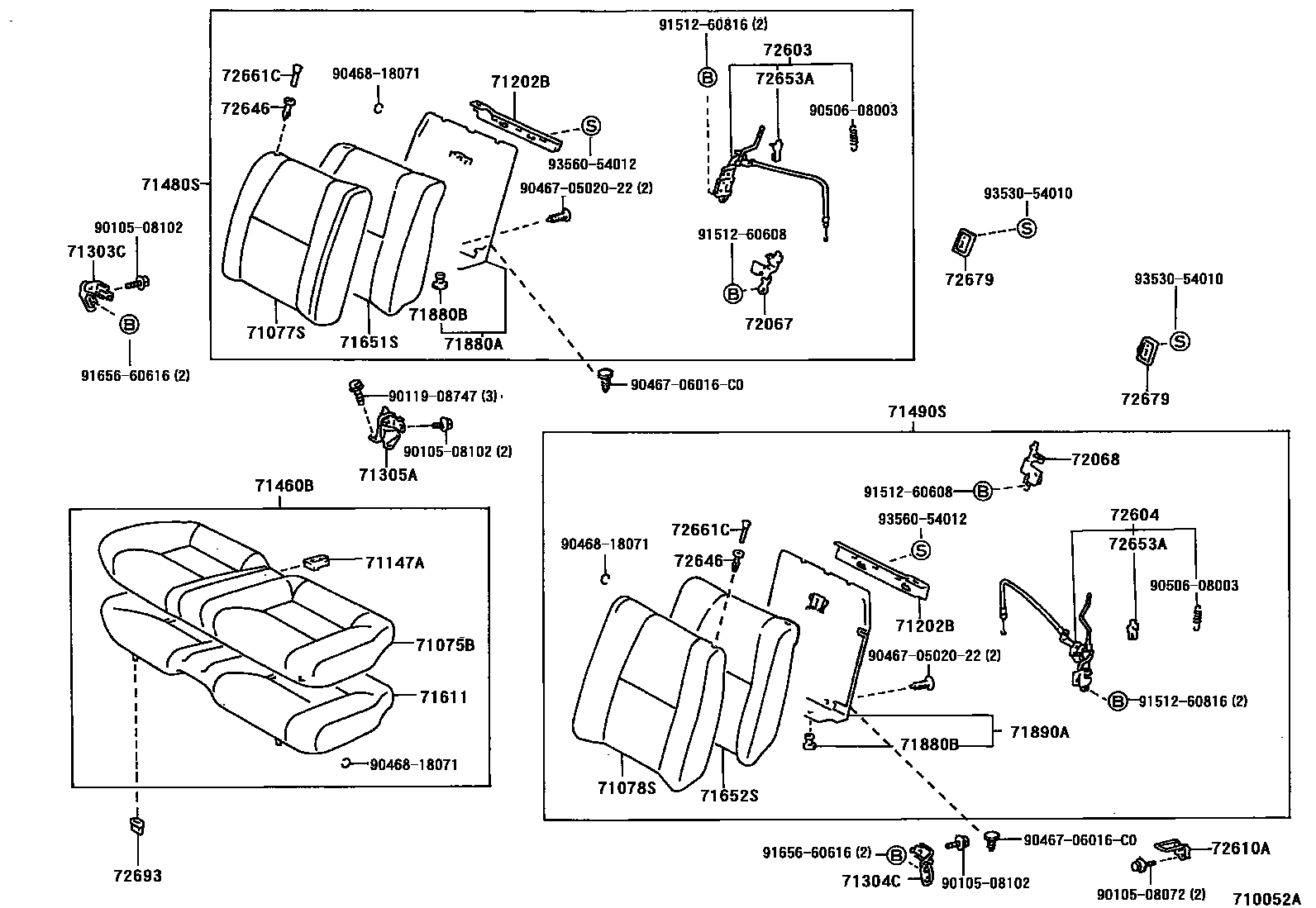

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-2B020-C0iST202..LB199508-199712

BLACK,TRIM2#

main71065-2B021-C2iST202..LB199712

BLACK,TRIM2#

main71065-2B310-C0iST202..LB199311-199508

BLACK,TRIM2#

main71065-2B350-C1iAT200199311-199508

BLACK,TRIM2#

main71065-2B380-C0iST205199402-199508

BLACK,TRIM2#

main71065-2B420-C0iST202..CVT199408-199512

BLACK,TRIM2#

main71065-2B490-C0iST202..LB199311-199508

LEATHER,BLACK,TRIM2#

main71065-2B500-C0iST205199402-199508

LEATHER,BLACK,TRIM2#

main71065-2B510-C0iST202..CVT199408

LEATHER,BLACK,TRIM2#

main71065-2B540-C1iAT200199508-199712

BLACK,TRIM2#

main71065-2B541-C2iAT200199712

BLACK,TRIM2#

main71065-2B560-C0iST205199508-199606

BLACK,TRIM2#

main71065-2B580-C0iST202..CVT199512-199712

BLACK,TRIM2#

sub71065-2B580¥57,900

main71065-2B600-C0iST202..LB199508-199712

LEATHER,BLACK,TRIM2#

sub71065-2B600

main71065-2B600-C1iST202..LB199712

LEATHER,BLACK,TRIM2#

sub71065-2B600

main71065-2B610-C0iST205199508-199606

LEATHER,BLACK,TRIM2#

main71065-2B890-C0iST202..CVT199712

BLACK,TRIM2#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-2G200-C0iST20#..LB199311-199508

BLACK,TRIM2#

main71077-2G240-C1iAT200199311-199508

BLACK,TRIM2#

main71077-2G380-C0iST20#..LB199311-199606

LEATHER,BLACK,TRIM2#

main71077-2G381-C4iST202..LB199606

LEATHER,BLACK,TRIM2#

sub71077-2G381¥50,900

main71077-2G390-C0iST20#..LB199508-199606

BLACK,TRIM2#

main71077-2G420-C1iAT200199508-199606

BLACK,TRIM2#

sub71077-2G450

main71077-2G421-C1iAT200199606-199712

BLACK,TRIM2#

main71077-2G422-C2iAT200199712

BLACK,TRIM2#

main71077-2G720-C0iST202..LB199606-199712

BLACK,TRIM2#

main71077-2G850-C0iST202..LB199712

BLACK,TRIM2#

sub71077-2G840¥39,400

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-2B180-C0iST20#..LB199311-199508

BLACK,TRIM2#

main71078-2B220-C1iAT200199311-199508

BLACK,TRIM2#

main71078-2B310-C0iST20#..LB199311-199606

LEATHER,BLACK,TRIM2#

main71078-2B311-C2iST202..LB199606

LEATHER,BLACK,TRIM2#

sub71078-2B311¥50,900

main71078-2B330-C0iST20#..LB199508-199606

BLACK,TRIM2#

main71078-2B360-C1iAT200199508-199606

BLACK,TRIM2#

sub71078-2B390

main71078-2B361-C1iAT200199606-199712

BLACK,TRIM2#

main71078-2B362-C2iAT200199712

BLACK,TRIM2#

main71078-2B560-C0iST202..LB199606-199712

BLACK,TRIM2#

main71078-2B660-C0iST202..LB199712

BLACK,TRIM2#

sub71078-2B650¥39,400

71147ASILENCER, REAR SEAT SPRING

main71147-16020iAT200,ST202..LB¥170199311-199508

71202BPANEL, REAR SEATBACK

main71202-20030iAT200,ST20#..LB¥3,210199311-199606

RH

main71203-20040iAT200,ST20#..LB¥3,210199311-199606

LH

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-20080iAT200,ST20#..LB¥2,550199311-199606

main71303-20140iAT200,ST202..LB¥2,560199606

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71303-20080iAT200,ST20#..LB¥2,550199311-199606

main71303-20140iAT200,ST202..LB¥2,560199606

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-20180iAT200,ST20#..LB¥4,950199311-199606

main71305-20220iAT200,ST202..LB¥5,900199606

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-2D170-C0iST202..CVT199712

BLACK,TRIM2#

main71560-2B450-C1iST202..LB199311-199508

BLACK,TRIM2#

main71560-2B470-C0iST202..LB199508-199712

BLACK,TRIM2#

main71560-2B471-C2iST202..LB199712

BLACK,TRIM2#

main71560-2B510-C1iAT200199311-199508

BLACK,TRIM2#

main71560-2B520-C0iST205199402-199508

BLACK,TRIM2#

main71560-2B560-C0iST202..CVT199408-199512

BLACK,TRIM2#

main71560-2B640-C1iST202..LB199311-199508

LEATHER,BLACK,TRIM2#

main71560-2B650-C0iST205199402-199508

LEATHER,BLACK,TRIM2#

main71560-2B660-C0iST202..CVT199408

LEATHER,BLACK,TRIM2#

main71560-2B690-C1iAT200199508-199712

BLACK,TRIM2#

main71560-2B691-C2iAT200199712

BLACK,TRIM2#

main71560-2B720-C0iST205199508-199606

BLACK,TRIM2#

main71560-2B730-C1iST202..LB199508

LEATHER,BLACK,TRIM2#

sub71560-2B730

main71560-2B740-C0iST205199508-199606

LEATHER,BLACK,TRIM2#

main71560-2B750-C0iST202..CVT199512-199712

BLACK,TRIM2#

sub71560-2B750¥105,000

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-2G570-C1iST202..LB199311-199508

BLACK,TRIM2#

main71480-2G620-C1iAT200199311-199508

BLACK,TRIM2#

main71480-2G710-C0iST205199402-199508

BLACK,TRIM2#

main71480-2G850-C1iST202..LB199311-199508

LEATHER,BLACK,TRIM2#

main71480-2G870-C0iST205199402-199508

LEATHER,BLACK,TRIM2#

main71480-2G880-C1iAT200199508-199606

BLACK,TRIM2#

main71480-2G881-C1iAT200199606-199712

BLACK,TRIM2#

main71480-2G882-C2iAT200199712

BLACK,TRIM2#

main71480-2G890-C0iST202..LB199508-199606

BLACK,TRIM2#

main71480-2G891-C0iST202..LB199606-199712

BLACK,TRIM2#

main71480-2H060-C1iST202..LB199508-199606

LEATHER,BLACK,TRIM2#

main71480-2H061-C1iST202..LB199606

LEATHER,BLACK,TRIM2#

sub71480-2H061

main71480-2H090-C0iST205199508-199606

BLACK,TRIM2#

main71480-2H100-C0iST205199508-199606

LEATHER,BLACK,TRIM2#

main71480-2H440-C0iST202..LB199712

BLACK,TRIM2#

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-2B430-C1iST202..LB199311-199508

BLACK,TRIM2#

main71490-2B480-C1iAT200199311-199508

BLACK,TRIM2#

main71490-2B560-C0iST205199402-199508

BLACK,TRIM2#

main71490-2B680-C1iST202..LB199311-199508

LEATHER,BLACK,TRIM2#

main71490-2B700-C0iST205199402-199508

LEATHER,BLACK,TRIM2#

main71490-2B790-C1iAT200199508-199606

BLACK,TRIM2#

main71490-2B791-C1iAT200199606-199712

BLACK,TRIM2#

main71490-2B792-C2iAT200199712

BLACK,TRIM2#

main71490-2B800-C0iST202..LB199508-199606

BLACK,TRIM2#

main71490-2B801-C0iST202..LB199606-199712

BLACK,TRIM2#

main71490-2B860-C1iST202..LB199508-199606

LEATHER,BLACK,TRIM2#

main71490-2B861-C1iST202..LB199606

LEATHER,BLACK,TRIM2#

sub71490-2B861

main71490-2B890-C0iST205199508-199606

BLACK,TRIM2#

main71490-2D010-C0iST205199508-199606

LEATHER,BLACK,TRIM2#

main71490-2D220-C0iST202..LB199712

BLACK,TRIM2#

71611PAD, REAR SEAT CUSHION

main71503-20070iAT200,ST202..LB¥27,800199311

main71503-20080iST205¥27,800199402-199606

main71611-20540iST202..CVT¥24,900199408

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71507-20230iAT200,ST20#..LB¥24,900199311-199606

main71651-20750iAT200,ST202..LB¥15,300199606

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71508-20050iAT200,ST20#..LB¥24,900199311-199606

main71652-20490iAT200,ST202..LB¥15,300199606

71880ACARPET ASSY, REAR SEATBACK BOARD, RH

main71880-20250-C0iAT200,ST202..LB199311-199606

BLACK,TRIM2#

main71880-20270-C0iST205199402-199606

BLACK,TRIM2#

71880BCLIP(FOR REAR SEATBACK CARPET)

main90467-05083iAT200,ST202..LB¥300199311-199606

71890ACARPET ASSY, REAR SEATBACK BOARD, LH

main71890-20180-C0iAT200,ST202..LB199311-199606

BLACK,TRIM2#

main71890-20200-C0iST205199402-199606

BLACK,TRIM2#

72067LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH

main72067-20040iAT200,ST20#..LB¥990199311-199508

main72067-20070iAT200,ST20#..LB¥940199508-199606

main72067-20080iAT200,ST202..LB¥1,000199606

72068LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH

main72068-20040iAT200,ST20#..LB¥990199311-199508

main72068-20070iAT200,ST20#..LB¥940199508-199606

main72068-20080iAT200,ST202..LB¥1,000199606

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72630-20190iAT200,ST20#..LB¥2,170199311-199606

main72630-20230iAT200,ST202..LB¥4,160199606

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72640-20180iAT200,ST20#..LB¥2,170199311-199606

main72640-20230iAT200,ST202..LB¥4,160199606

72610ASTRIKER ASSY, REAR SEATBACK LOCK

main72601-20050iAT200,ST20#..LB¥1,420199311

sub72610-20020¥2,220

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-20020-C0iAT200,ST20#..LB199311

BLACK,TRIM2#

sub72646-20020¥600

72653ASNAP, REAR SEATBACK LOCK ROD

main69759-24010iAT200,ST20#..LB¥180199311

WHITE

main69759-24020iAT200,ST20#..LB¥180199311

BLUE

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-12010-C0iAT200,ST20#..LB199311-199908

BLACK,TRIM2#

sub72661-12010¥740

72679BEZEL, REAR SEATBACK LOCK CONTROL

main72679-20020-C0iAT200,ST20#..LB199311

BLACK,TRIM2#

sub72679-20020¥1,090

72693HOOK, REAR SEAT CUSHION LOCK

main72693-20060iAT200,ST20#¥180199311

9010508072

main90105-08072¥120

9010508102

main90105-08102¥160

9011908747

main90119-08747¥140

904670502022

main90467-0502022

9046706016C0

main90467-06016C0

9046818071

main90468-18071¥160

9050608003

main90506-08003¥210

9151260608

main91512-60608¥200

9151260816

main91512-60816¥120

9165660616

main91656-60616¥130

9353054010

main93530-54010¥70

9356054012

main93560-54012¥60

39 parts on this diagram · 3 diagrams in section
