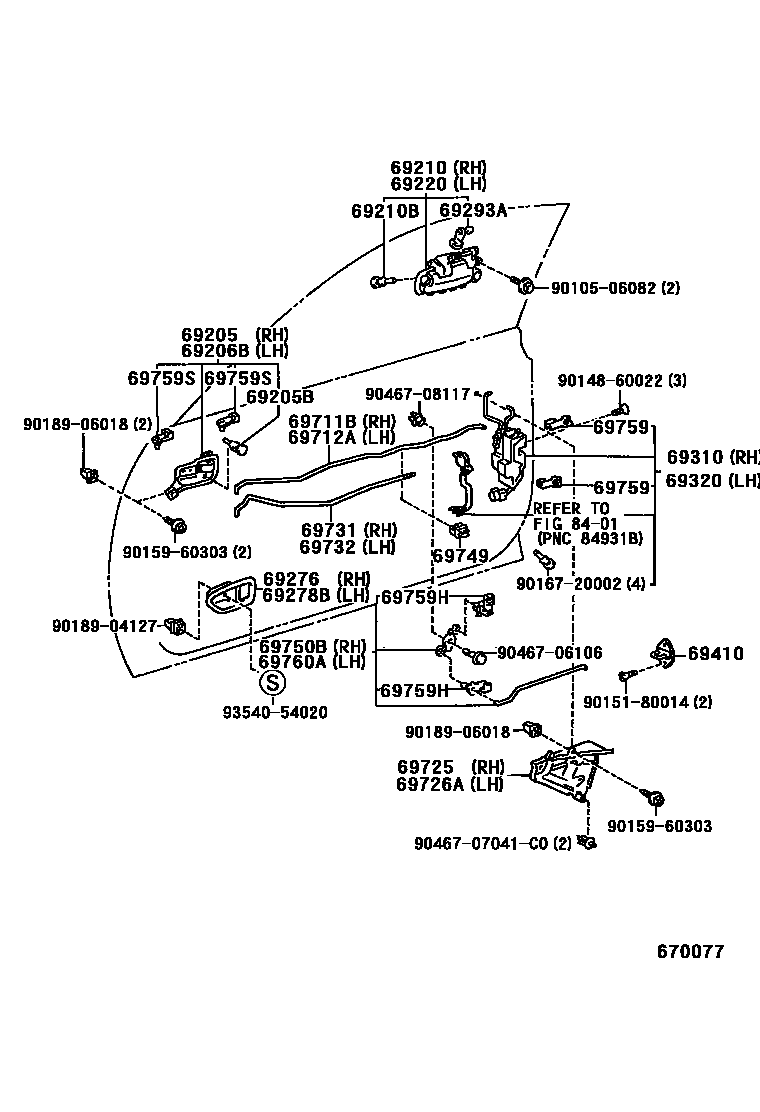

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,040
SILVER ME.,199
BLACK,202
SUPER RED 4,3L2
ORANGE MC,3K6
SUPER BRIGHT YELLOW,576
DEEP TEAL ME.,752
TURQUOISE M.M,746
TURQUOISE M.M.,756
PURPLISH BLUE M.M.,8K9
DK.BLUE M.M.,8L2
BLUE ME.,8M2
PURPLE ME OP.,933
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,040
SILVER ME.,199
BLACK,202
SUPER RED 4,3L2
ORANGE MC,3K6
SUPER BRIGHT YELLOW,576
DEEP TEAL ME.,752
TURQUOISE M.M,746
TURQUOISE M.M.,756
PURPLISH BLUE M.M.,8K9
DK.BLUE M.M.,8L2
BLUE ME.,8M2
PURPLE ME OP.,933
69276BEZEL, FRONT DOOR INSIDE HANDLE
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
LH
RH
69310LOCK ASSY, FRONT DOOR, RH
W(POWER WINDOW)
69320LOCK ASSY, FRONT DOOR, LH
W(POWER WINDOW)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69749CLAMP, FRONT DOOR LOCK LINK
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69759SNAP, DOOR LOCK CONTROL LINK, NO.1
YELLOW
BROWN
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
YELLOW
BROWN
WHITE
69759SSNAP, FRONT DOOR INSIDE HANDLE
PINK
YELLOW
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
8401
9010506082
main90105-06082
9014860022
main90148-60022
9015180014
main90151-80014
9015960303
main90159-60303
9016720002
main90167-20002
9018904127
main90189-04127
9018906018
main90189-06018
9046706106
main90467-06106
9046707041C0
main90467-07041C0
9046708117
main90467-08117
9354054020
main93540-54020
36 parts on this diagram · 1 diagram in section
