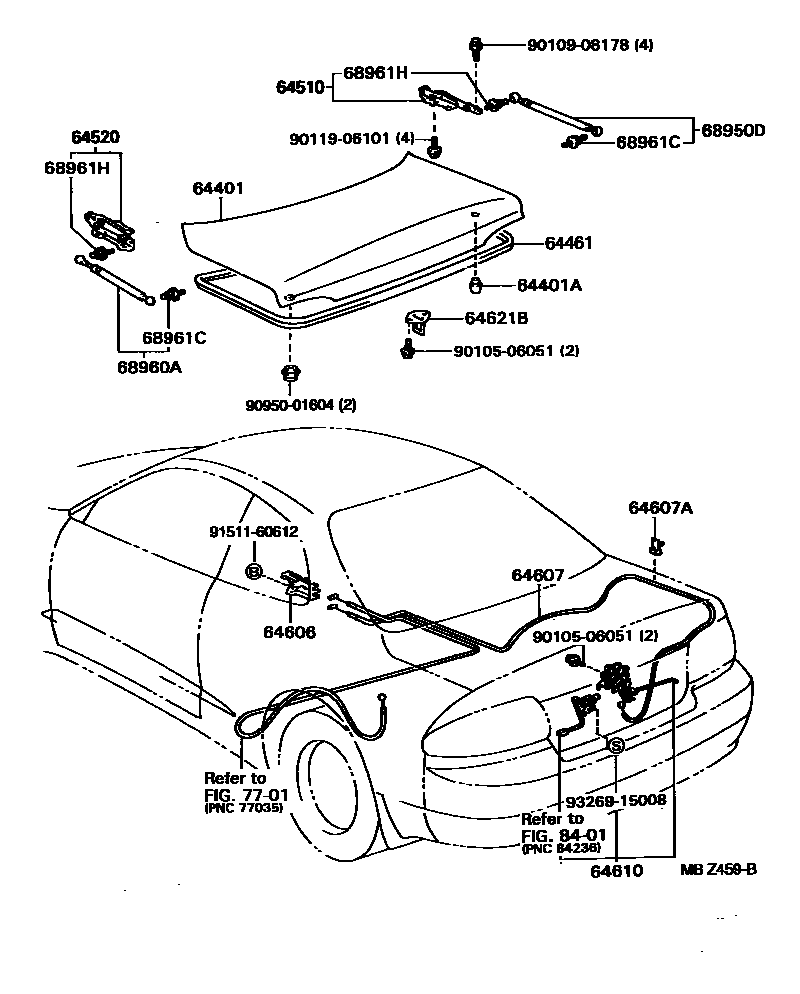

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1 0002 1

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-2B680iST202..CVT199408

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09075iST202..CVT199408

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-20380iST202..CVT199408

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-20210iST202..CVT199408

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-20200iST202..CVT199408

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-20120iST202..RHD..CVT199408-199508

sub64606-20121

main64606-20121iST202..RHD..CVT199508

main64606-20170iST202..LHD..CVT199408-199508

sub64606-20171

main64606-20171iST202..LHD..CVT199508

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-20890iST202..CVT199408

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010iST202..CVT199408

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20240iST202..CVT199408

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64620-20180iST202..CVT199408

sub64620-32050

68950DSTAY ASSY, LUGGAGE DOOR, RH

main68950-80032iST202..CVT199408

68960ASTAY ASSY, LUGGAGE DOOR, LH

main68950-80032iST202..CVT199408

68961CBOLT, LUGGAGE DOOR STAY

main68961-20130iST202..CVT199408

68961HBOLT, LUGGAGE DOOR STAY

main68961-20120iST202..CVT199408

7701

8401

9010506051

main90105-06051

9010908178

main90109-08178

9011906101

main90119-06101

9095001604

main90950-01604

9151160612

main91511-60612

9326915008

main93269-15008

22 parts on this diagram · 2 diagrams in section
