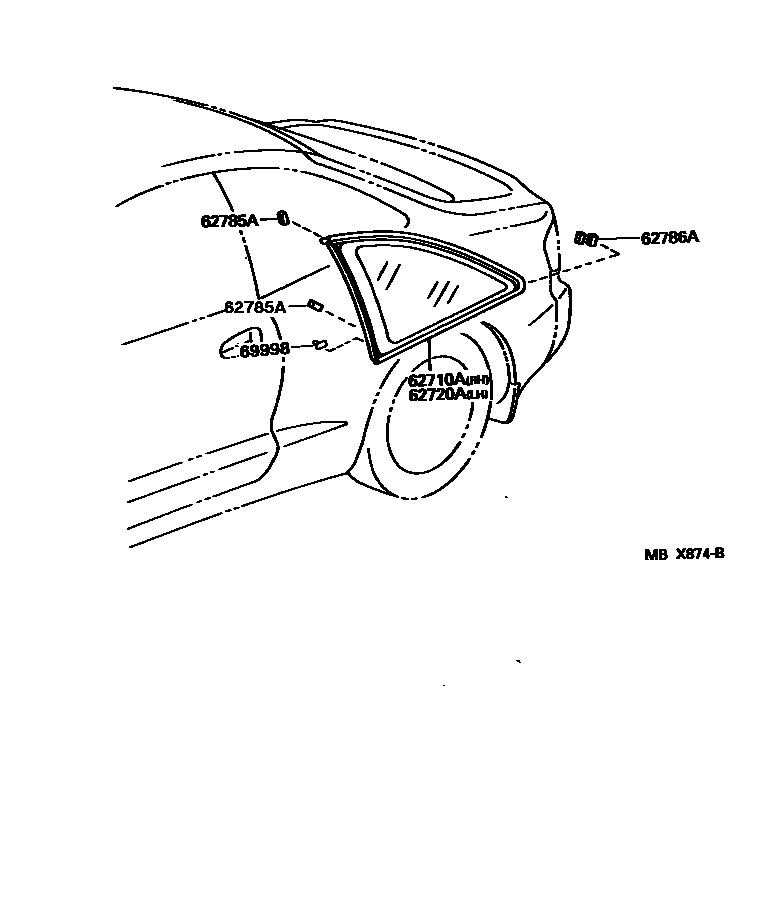

QUARTER WINDOW

62710AWINDOW ASSY, QUARTER, RH

main62710-20260iAT200,ST20#..LB199311-199508

*TT,T=3.1,BLUE

sub62710-20290

main62710-20290iAT200,ST20#..LB199508

*TT,T=3.1,GREEN

62720AWINDOW ASSY, QUARTER, LH

main62720-20260iAT200,ST20#..LB199311-199508

*TT,T=3.1,BLUE

sub62720-20290

main62720-20290iAT200,ST20#..LB199508

*TT,T=3.1,GREEN

62785ASPACER, QUARTER WINDOW GLASS

main62785-16030iAT200,ST20#..LB199501-199505

main62785-20020iAT200,ST20#..LB199311-199501

sub62785-16030

62786ASPACER, QUARTER WINDOW GLASS, NO.2

main62786-20020iAT200,ST20#..LB199311-199412

69998PIN, QUARTER WINDOW GUIDE PIECE, NO.1

main69998-20020iAT200,ST20#..LB199311

5 parts on this diagram · 1 diagram in section
