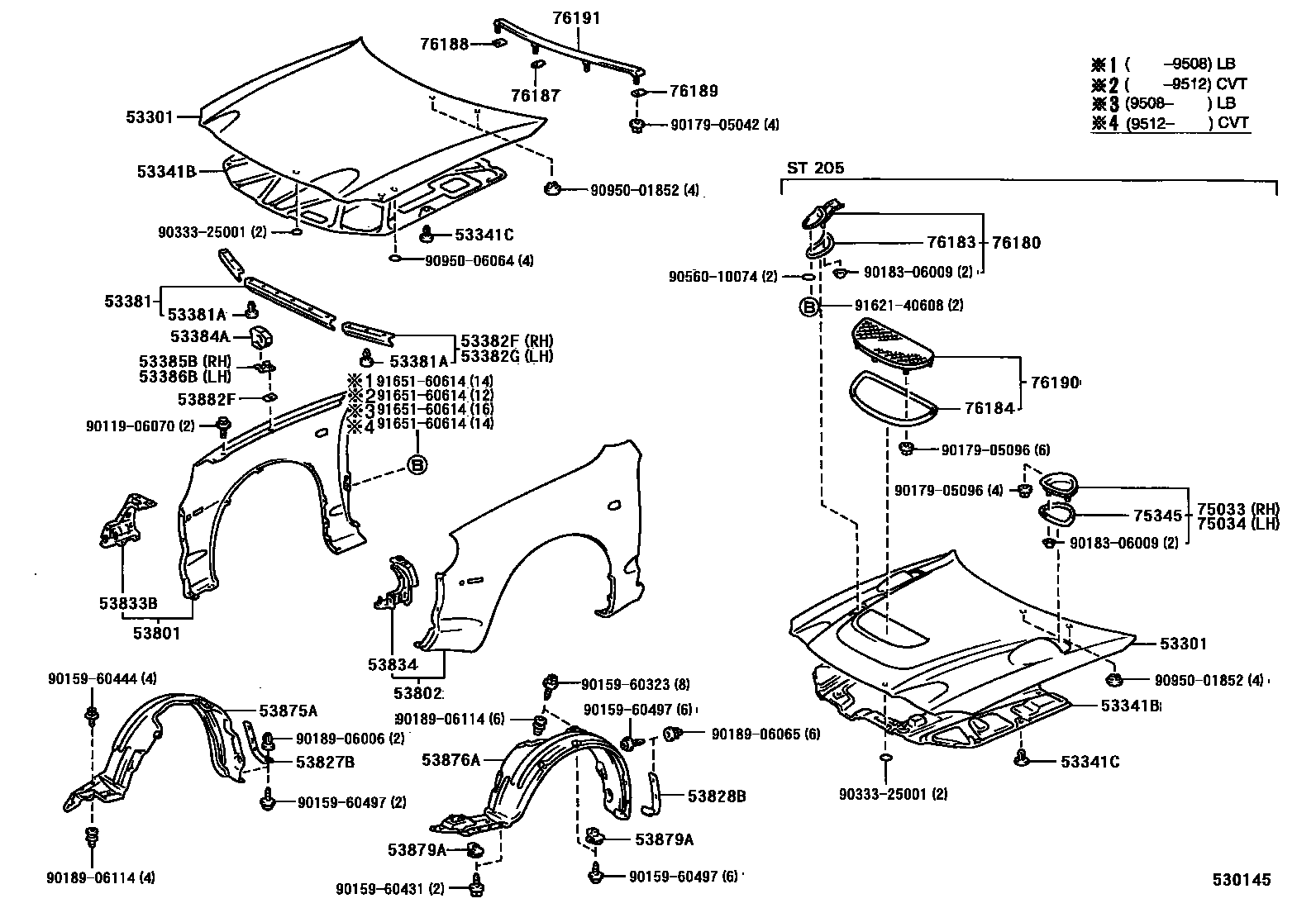

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53382FSEAL, HOOD TO RADIATOR SUPPORT, RH
53382GSEAL, HOOD TO RADIATOR SUPPORT, LH
53384ABUMPER, FENDER TO HOOD
53385BBRACKET, FENDER TO HOOD BUMPER, RH
53386BBRACKET, FENDER TO HOOD BUMPER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53827BPROTECTOR, FRONT FENDER SIDE PANEL
53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH
53833BPANEL, FRONT FENDER SIDE, RH
53834PANEL, FRONT FENDER SIDE, LOWER LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53879ARETAINER, FRONT FENDER LINER
53882FSEAL, FRONT FENDER
75033ORNAMENT SUB-ASSY, HOOD, RH
SUPER WHITE 2,040
SILVER ME,199
BLACK,202
SUPER RED 2,3L2
DEEP TEAL ME,752
75034ORNAMENT SUB-ASSY, HOOD, LH
SUPER WHITE 2,040
SILVER ME,199
BLACK,202
SUPER RED 2,3L2
DEEP TEAL ME,752
75345PAD, HOOD ORNAMENT, NO.1
76180BULGE ASSY, HOOD
SUPER WHITE 2,040
SILVER ME,199
BLACK,202
SUPER RED 2,3L2
DEEP TEAL ME,752
76183PROTECTOR, HOOD BULGE, NO.1
76184PROTECTOR, HOOD BULGE, NO.2
76187RETAINER, HOOD AIR INTAKE GUIDE, NO.1
76188RETAINER, HOOD AIR INTAKE GUIDE, NO.2
76189RETAINER, HOOD AIR INTAKE GUIDE, NO.3
76190PLATE ASSY, HOOD BULGE
76191GUIDE, AIR TO COWL
9011906070
9015960323
9015960431
9015960444
9015960497
9017905042
9017905096
9018306009
9018906006
9018906065
9018906114
9033325001
9056010074
9095001852
9095006064
9162140608
9165160614
48 parts on this diagram · 1 diagram in section
