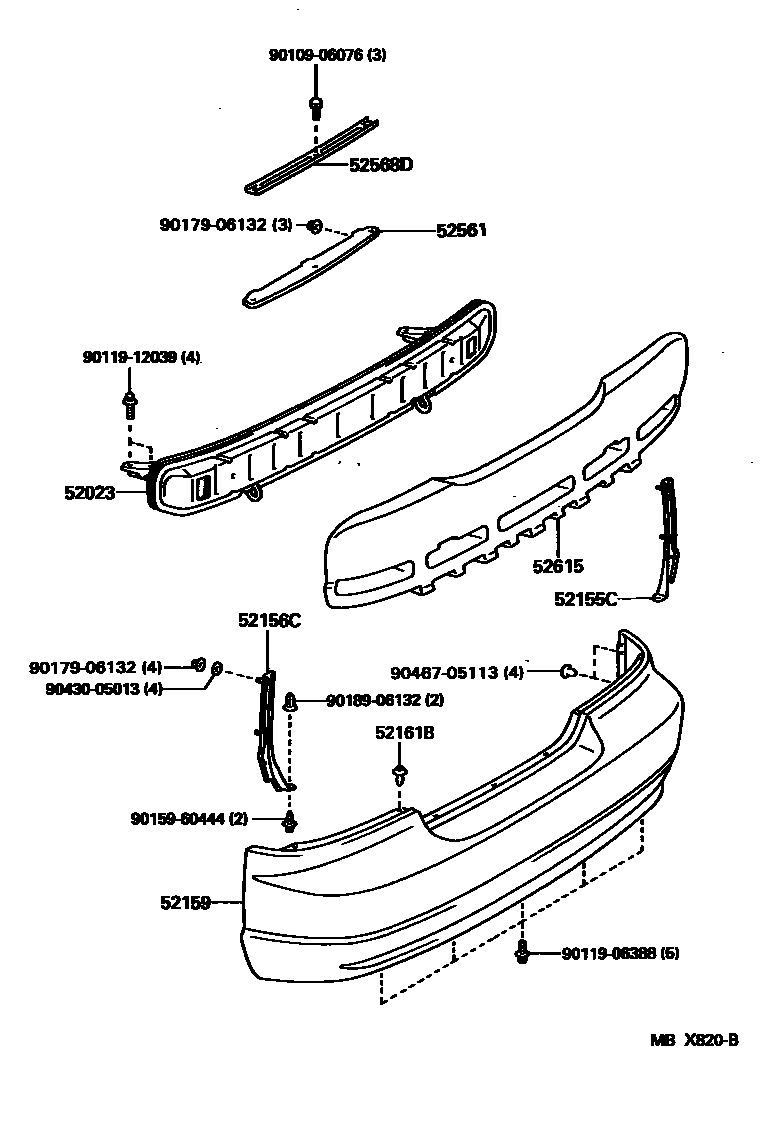

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-20280iAT200,ST202..LB¥36,000199311

main52023-20290iST202..CVT¥36,800199408

main52023-20340iST205¥35,400199402-199606

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-20310iAT200,ST20#..LB¥850199311

main52155-20320iST202..CVT¥850199408

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-20200iAT200,ST20#..LB¥850199311

main52156-20210iST202..CVT¥850199408

52159COVER, REAR BUMPER

main52159-20932iAT200,ST20#..LB¥36,400199311

main52159-20933iST202..CVT¥36,500199408

52161BPIECE, REAR BUMPER

main52161-16010iAT200,ST20#¥120199311

sub52161-0K040¥120

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-20220iAT200,ST20#¥1,940199311

52568DRETAINER, REAR BUMPER, UPPER NO.2

main52568-20020iAT200,ST20#¥1,590199311

52615ABSORBER, REAR BUMPER ENERGY

main52615-20170iAT200,ST20#..LB¥15,900199311

main52615-20180iST202..CVT¥15,900199408

9010906076

main90109-06076¥130

9011906388

main90119-06388¥120

9011912039

main90119-12039¥310

9015960444

main90159-60444¥100

9017906132

main90179-06132¥120

9018906132

main90189-06132¥130

9043005013

main90430-05013¥140

9046705113

main90467-05113¥250

16 parts on this diagram · 1 diagram in section
