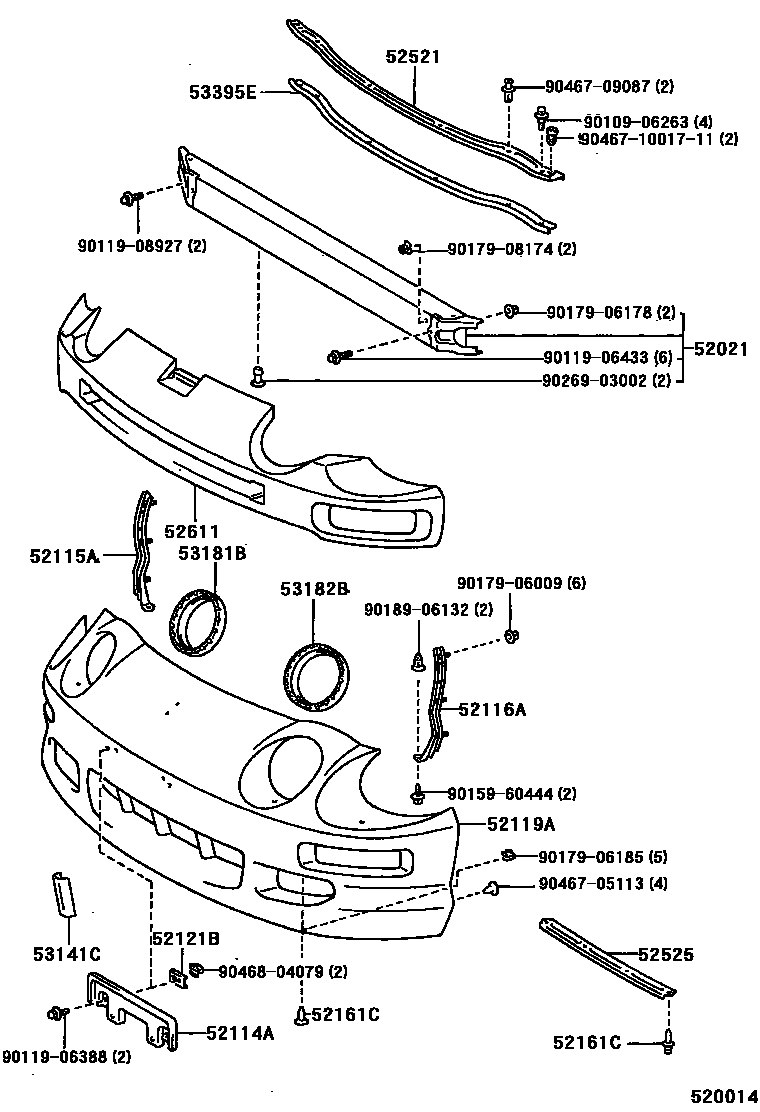

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0004 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-20240iAT200,ST202199311-199508

main52021-20250iAT200,ST202199512

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-20120iAT200,ST202199311

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-20320iAT200,ST20#199311

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-20220iAT200,ST20#199311

52119ACOVER, FRONT BUMPER

main52119-2B902iST202..CVT199508-199512

main52119-2B904iAT200,ST202199311-199508

W(HEADLAMP CLEANER)

main52119-2B905iST205199402-199606

main52119-2B906iST205199402-199606

W(HEADLAMP CLEANER)

main52119-2B907iST202..LHD..CVT199508-199512

W(FOG LAMP)

main52119-2B908iAT200,ST202..LHD199311-199508

THE FEDERAL REPUBLIC OF GERMANY SPECIFICATION & W(HEAD LAMP CLEANER)

main52119-2B914iST202..LB;AT200..LHD199508-199512

main52119-2B916iAT200,ST202..LB199508-199512

W(HEADLAMP CLEANER)

main52119-2B917iAT200,ST202..LHD199512

THE FEDERAL REPUBLIC OF GERMANY SPECIFICATION

main52119-2B918iAT200,ST202..LHD..LB199508-199512

THE FEDERAL REPUBLIC OF GERMANY SPECIFICATION & W(HEAD LAMP CLEANER)

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-24020×2iAT200,ST202199311

52161CPIECE, FRONT BUMPER

main52161-16010×6iST205199402-199501

W(FOG LAMP)

sub52161-0K040

main90467-09143×4iAT200,ST202199501-199508

CENTER

main90467-11021-01×4iAT200,ST202..LB199508-199606

BLACK,040 ,199 ,202 ,3L2 ,756 ,8K9 ,8L2

sub90467-11068

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-20190iAT200,ST202199311-199312

main52521-20191iAT200,ST202199312

main52521-20200iST205199402-199606

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52525-20110iAT200,ST202199311-199606

52611ABSORBER, FRONT BUMPER ENERGY

main52611-20130iAT200,ST202199311-199508

main52611-20150iST205199402-199606

main52611-20180iAT200,ST202..LB199508-199512

53141CGARNISH, RADIATOR GRILLE

main53141-20070×3iAT200,ST202..LB199508-199512

53181BSEAL, HEADLAMP COVER, NO.1, RH

main53182-20030iAT200,ST20#199311

53182BSEAL, HEADLAMP COVER, NO.1, LH

main53182-20030iAT200,ST20#199311

53395ESEAL, HOOD TO FRONT END PANEL

main53395-20010iAT200,ST202199311

main53395-20020iST205199402-199606

9010906263

main90109-06263

9011906388

main90119-06388

9011906433

main90119-06433

9011908927

main90119-08927

9015960444

main90159-60444

9017906009

main90179-06009

9017906178

main90179-06178

9017906185

main90179-06185

9017908174

main90179-08174

9018906132

main90189-06132

9026903002

main90269-03002

9046705113

main90467-05113

9046709087

main90467-09087

904671001711

main90467-1001711

9046804079

main90468-04079

29 parts on this diagram · 3 diagrams in section
