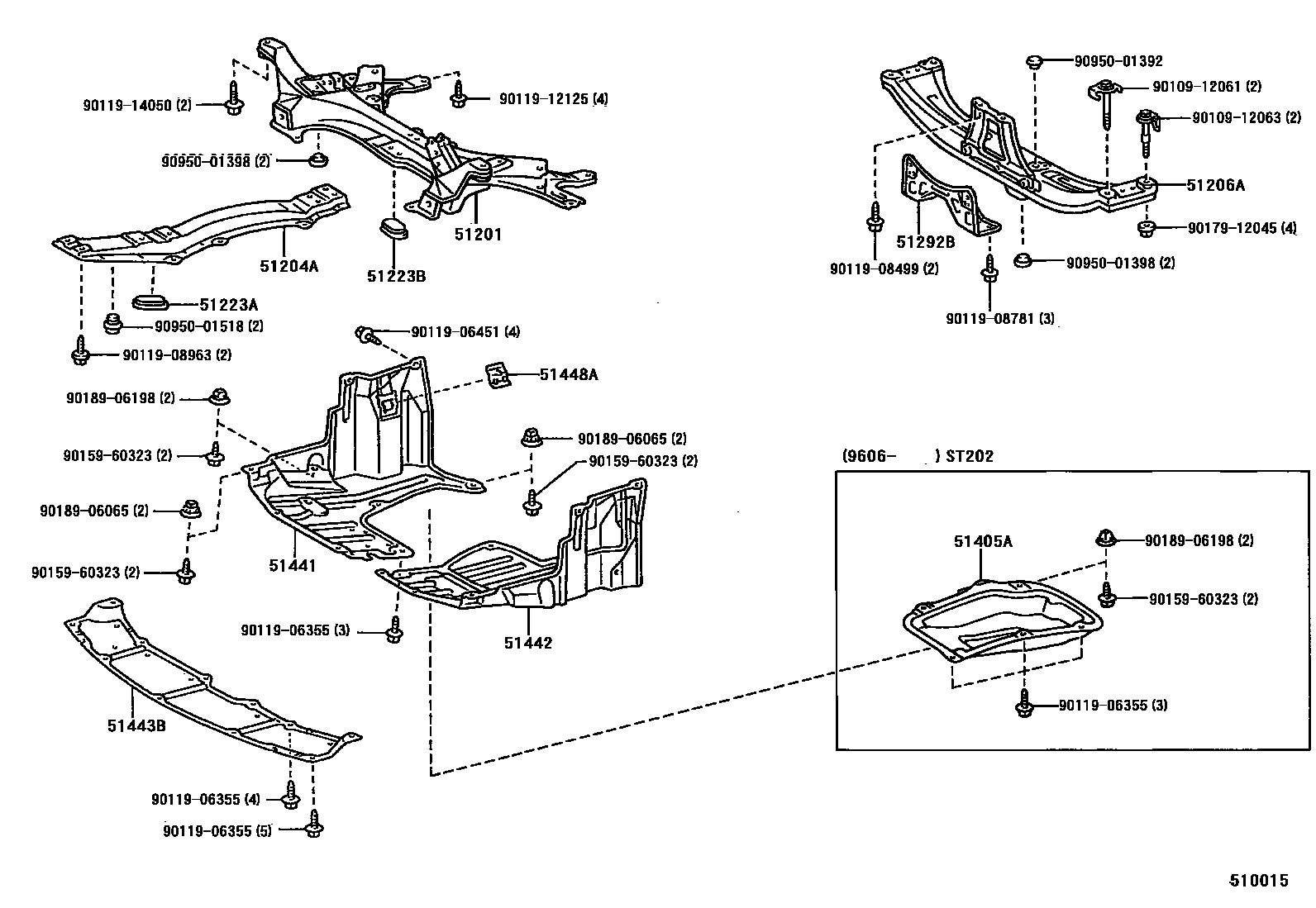

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20300iAT200,ST202199311

main51201-20310iST20#..LB199311

W(SUPER STRUT SUSPENSION)

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20130iAT200,ST20#199311

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-20011iST205199402-199606

main51206-20070iAT200,ST202199311

51223ACOVER, ENGINE MOUNTING HOLE

main51223-20030iAT200,ST20#199311

51223BCOVER, ENGINE MOUNTING HOLE

main51223-20050iAT200,ST20#199311

51292BBRACKET, FRAME CROSSMEMBER, REAR

main51292-20020iST202199311

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-20050iST202199605

51441COVER, ENGINE UNDER, NO.1

main51408-20070iST20#199605

main51408-20080iST205199402-199605

sub51408-20070

main51441-20360iAT200,ST202199311-199605

sub51441-20400

main51441-20400iAT200199605

51442COVER, ENGINE UNDER, NO.2

main51409-20100iST202199605

main51409-20110iST205199402-199606

main51442-20460iAT200,ST202199311-199605

51443BCOVER, ENGINE UNDER, NO.3

main51443-20090iAT200,ST20#199311

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20030iAT200,ST20#199311-199605

9010912061

main90109-12061

9010912063

main90109-12063

9011906355

main90119-06355

9011906451

main90119-06451

9011908499

main90119-08499

9011908781

main90119-08781

9011908963

main90119-08963

9011912125

main90119-12125

9011914050

main90119-14050

9015960323

main90159-60323

9017912045

main90179-12045

9018906065

main90189-06065

9018906198

main90189-06198

9095001392

main90950-01392

9095001398

main90950-01398

9095001518

main90950-01518

27 parts on this diagram · 2 diagrams in section
