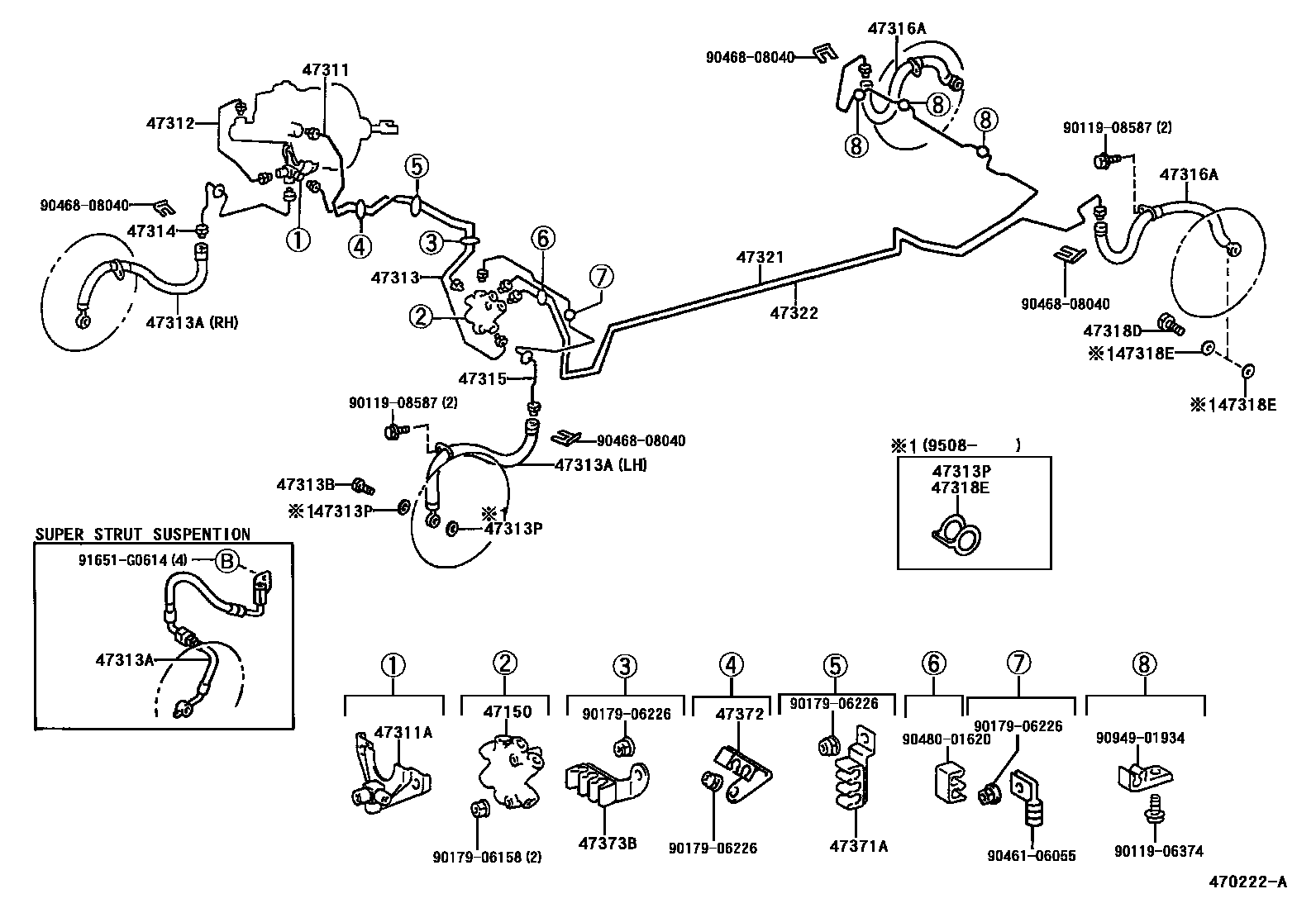

BRAKE TUBE & CLAMP
47311TUBE, FRONT BRAKE, NO.1
W(ABS)
W(ABS)
W(ABS)
W(ABS)
47311AWAY(FOR FRONT BRAKE TUBE)
47313TUBE, FRONT BRAKE, NO.3
W(ABS)
W(ABS)
W(ABS)
W(ABS)
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
RH
LH
RH
LH
W(SUPER STRUT SUSPENSION),RH
W(SUPER STRUT SUSPENSION),LH
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
W(ABS)
W(ABS)
W(ABS)
W(ABS)
47315TUBE, FRONT BRAKE, NO.5
W(ABS)
47316TUBE, FRONT BRAKE, NO.6
47318TUBE, FRONT BRAKE, NO.8
W(ABS)
W(ABS)
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47371ACLAMP, BRAKE TUBE, NO.1
W(ABS)
47372CLAMP, BRAKE TUBE, NO.2
W(ABS)
47373BCLAMP, BRAKE TUBE, NO.3
W(ABS)
9011906374
main90119-06374
9011908587
main90119-08587
9017906158
main90179-06158
9017906226
main90179-06226
9046106055
main90461-06055
9046808040
main90468-08040
9048001620
main90480-01620
9094901934
main90949-01934
91651G0614
main91651-G0614
29 parts on this diagram · 12 diagrams in section
