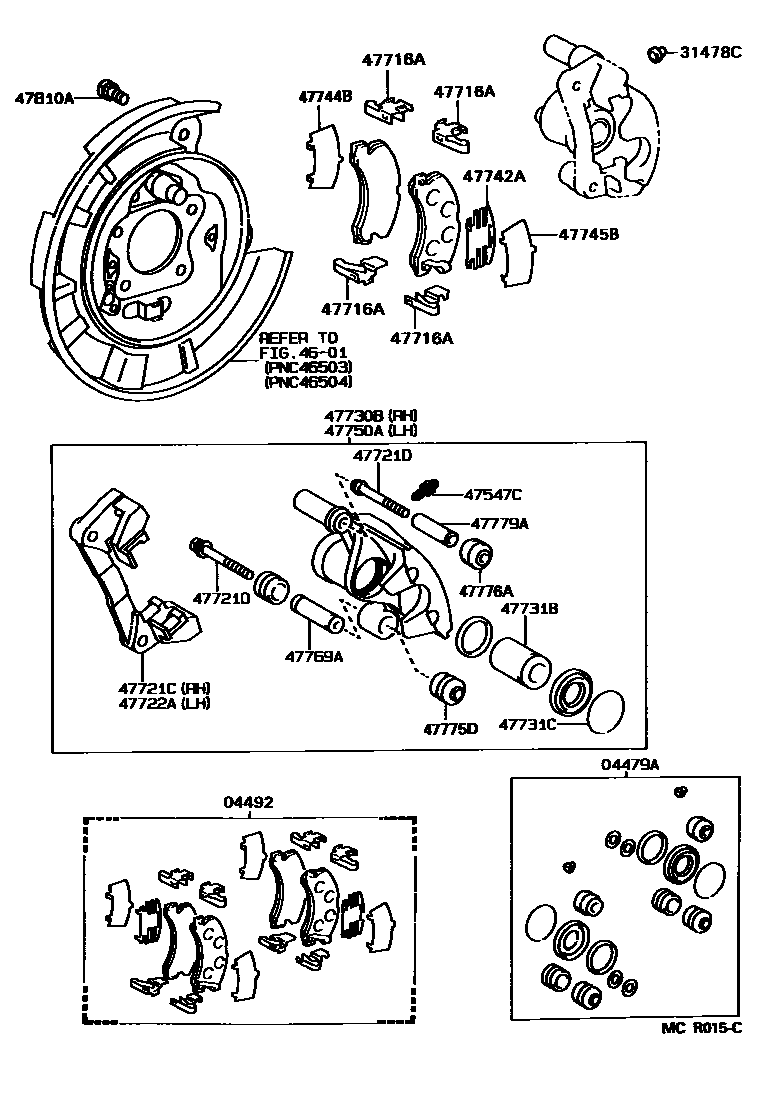

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-20090iAT200199311

main04479-20180iST202199311

main04479-20200iST205199402-199508

main04479-20270iST205199508-199606

04492PAD KIT, DISC BRAKE, REAR

main04492-20100iAT200,ST202199311-199505

sub04466-32010

main04492-20110iST205199402-199505

sub04466-20050

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-14010iST205199402-199606

main31478-30010iAT200,ST202199311

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iAT200,ST202199311

main47547-20030iST205199402-199606

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-12020iAT200,ST202199311

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-20430iAT200,ST202199311

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08317iST205199402-199606

*8-1.00PX77.5-24

main90109-08098iAT200,ST202199311

*8-1.25PX56-15

main90119-08431iAT200,ST202199311

*8-1.25PX62-20

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-20430iAT200,ST202199311

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-20420iAT200199311

main47730-20540iST202199311

main47730-20570iST205199402-199508

main47730-20571iST205199508-199606

47731BPISTON, REAR DISC BRAKE

main47731-20110iAT200199311

main47731-20210iST202199311

main47731-20230iST205199402-199606

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-44002iST205199402-199606

main90522-45001iAT200,ST202199311

47742ASHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47742-32090iST202..CVT199311-199512

main47744-20180iST205199402-199508

RH

main47744-20190iST205199402-199508

LH

47744BSHIM, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47744-12080iAT200,ST202199311-199512

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-14090iST205199402-199508

LH

main47745-14120iST205199402-199508

RH

main47745-32090iAT200,ST202199311-199512

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-20420iAT200199311

main47750-20540iST202199311

main47750-20570iST205199402-199508

main47750-20571iST205199508-199606

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010iAT200,ST202199311

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-14010iAT200,ST202199311

47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-12010iAT200,ST202199311-199506

sub47776-12020

main47776-12020iAT200,ST202199506

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-12010iAT200,ST202199311

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379iAT200,ST202199311

main90119-10445iST205199402-199606

21 parts on this diagram · 3 diagrams in section
