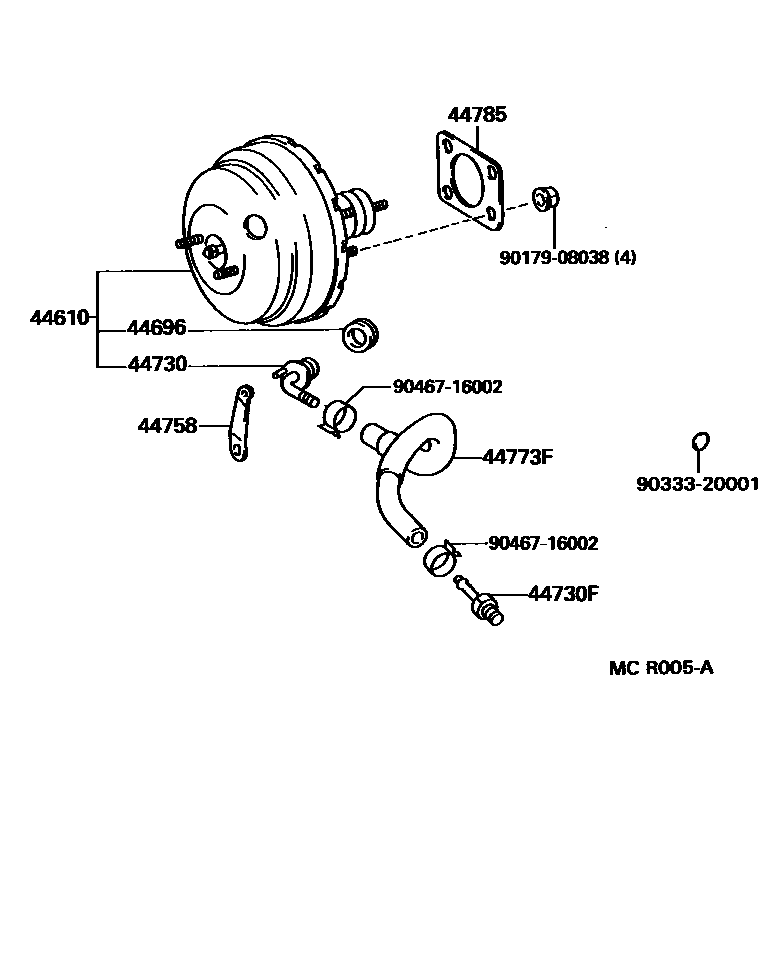

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44610BOOSTER ASSY, BRAKE

main44610-2D140iAT200..LHD199408-199512

main44610-2D410iST202..LHD..LB199508

main44610-2D410iST20#..LHD..LB199408-199508

W/O(ABS)

main44610-2D440iST205..LHD199408-199601

main44610-2D460iAT200,ST202..LHD199408

W(ABS)

main44610-2D590iAT200,ST202..LHD199311-199408

sub44610-2D140

main44610-2D600iST20#..LHD199311-199408

W(SUPER STRUT SUSPENSION)

sub44610-2D410

main44610-2D610iST202..RHD..LB199411-199508

W(SUPER STRUT SUSPENSION),AISIN

main44610-2D610iST20#..RHD..LB199311-199411

W(SUPER STRUT SUSPENSION)

main44610-2D640iAT200,ST202..RHD199311

main44610-2D660iST20#..RHD..LB199411-199508

W(SUPER STRUT SUSPENSION),JKC

main44610-2D670iAT200,ST202..LHD199311-199408

W(ABS)

sub44610-2D460

main44610-2D720iST205..RHD199405-199606

main44610-2D730iST205..LHD199405-199408

sub44610-2D440

44696GROMMET, CHECK VALVE

main90480-24015iAT200,ST20#..LHD199311-199512

main90480-24015iST20#..RHD..LB199411-199508

JKC

main90480-24439iST202..RHD..LB199411-199508

AISIN

main90480-24439iAT200,ST202199311-199411

W(ABS)

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iST20#..RHD..LB199411-199508

AISIN

main44730-14050iAT200,ST202199311-199411

W(ABS)

main44730-28010iST205;AT200,ST202..LHD..LB199311-199512

main44730-28010iST20#..RHD..LB199411-199508

JKC

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51046iST205199402-199606

main90404-51319iAT200,ST202199311

44758BRACKET, VACUUM CHECK VALVE

main44758-14150iAT200,ST20#..LHD199311

main44758-20280iAT200,ST20#..RHD199311

44773FHOSE, UNION TO CHECK VALVE

main44773-2B020iAT200..RHD199505

main44773-2B030iST205..RHD199402-199606

main44773-2B040iST202..RHD199311

44785GASKET, BRAKE BOOSTER

main44785-20020iAT200,ST20#199311

9017908038

main90179-08038

9033320001

main90333-20001

9046716002

main90467-16002

10 parts on this diagram · 2 diagrams in section
