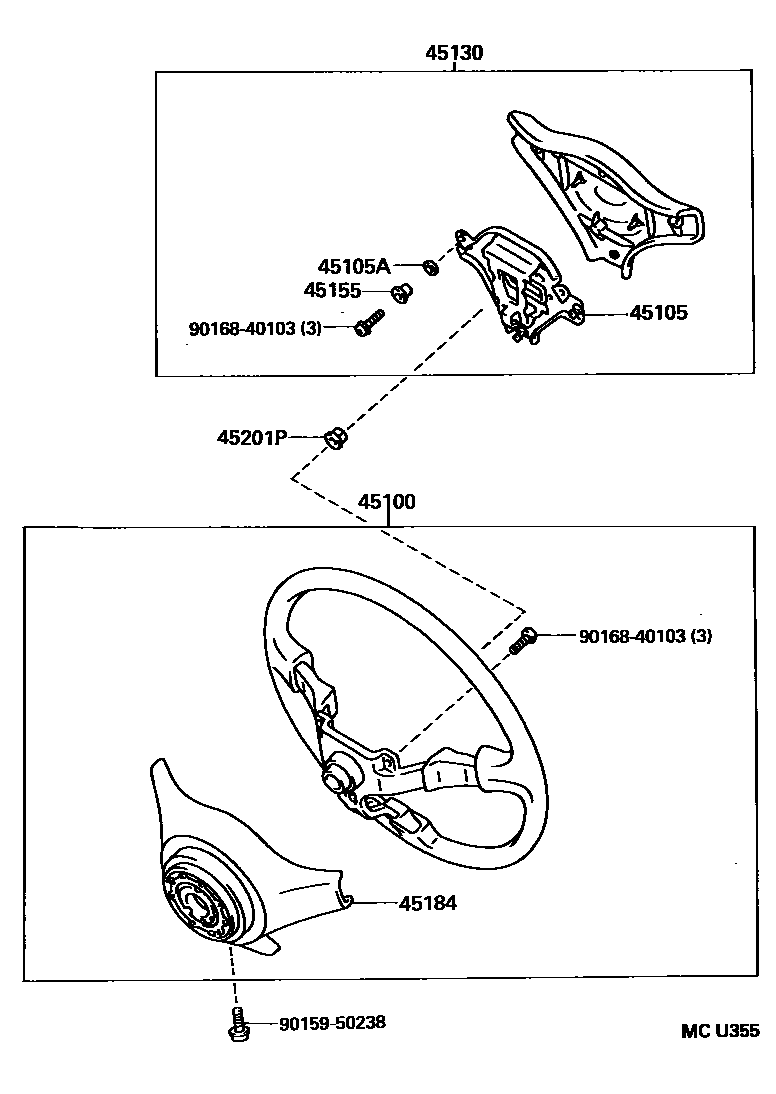

STEERING WHEEL

0001 13-SPOKE 0003 1W(MECHANICAL TYPE *80) 0005 1W(ELECTRICAL TYPE *80) 0007 13-SPOKE

45100WHEEL ASSY, STEERING

main45100-12891-C1iST202199712

3-SPOKE,LEATHER,BLACK / RED,TRIM2#

sub45100-12891

main45100-12891-C2iST202199712

3-SPOKE,LEATHER,BLACK,TRIM20

sub45100-12891

main45100-14640-C0iAT200199712

3-SPOKE,URETHANE,BLACK,TRIM2#

main45100-2B290-C0iAT200..LHD199311-199508

3-SPOKE,URETHANE,BLACK,TRIM2#

main45100-2B310-C0iST202..CVT199311-199512

3-SPOKE,LEATHER,BLACK,TRIM2#

sub45100-2B310

main45100-2B340-C0iAT200199311-199508

4-SPOKE,URETHANE,BLACK,TRIM2#

sub45100-2B340

main45100-2B360-C0iST20#199311-199512

4-SPOKE,LEATHER,BLACK,TRIM2#

sub45100-2B360

main45100-2B460-C0iAT200199508-199612

4-SPOKE,URETHANE,BLACK,TRIM2#

main45100-2B540-C0iST20#..LB199508-199712

4-SPOKE,LEATHER,BLACK,TRIM2#

main45100-2B590-C0iAT200199612-199712

4-SPOKE,URETHANE,BLACK,TRIM2#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-20500iST20#;AT200..LHD199311-199512

45105ACUSHION(FOR HORN BUTTON CONTACT PLATE)

main90540-08014iST202..CVT199311-199512

45130BUTTON ASSY, HORN

main45130-14360-C0iAT200,ST202199712

BLACK,TRIM2#

sub45130-14360

main45130-2B230-C0iAT200,ST20#..LB199508-199712

BLACK,TRIM2#

main45130-2B270-C0iST202..CVT199508-199512

W(CRUISE CONTOROL),BLACK,TRIM2#

sub45130-2B270

main45130-2B270-C0iST20#;AT200..LHD199311-199508

BLACK,TRIM2#

sub45130-2B270

main45130-2B290-C0iAT200,ST20#199311-199512

W(*80;DRIVER SIDE),BLACK,TRIM2#

sub45130-2B290

45155SPACER, HORN BUTTON CONTACT PLATE

main45155-22040iST20#;AT200..LHD199311-199512

45184COVER, STEERING WHEEL BOSS, LOWER

main45180-20270-C0iAT200,ST20#199311-199512

BLACK,TRIM2#

sub45180-20270

45201PNUT, STEERING WHEEL SET

main90179-12071iAT200,ST20#199311

9015950238

main90159-50238

9016840103

main90168-40103

9 parts on this diagram · 4 diagrams in section
