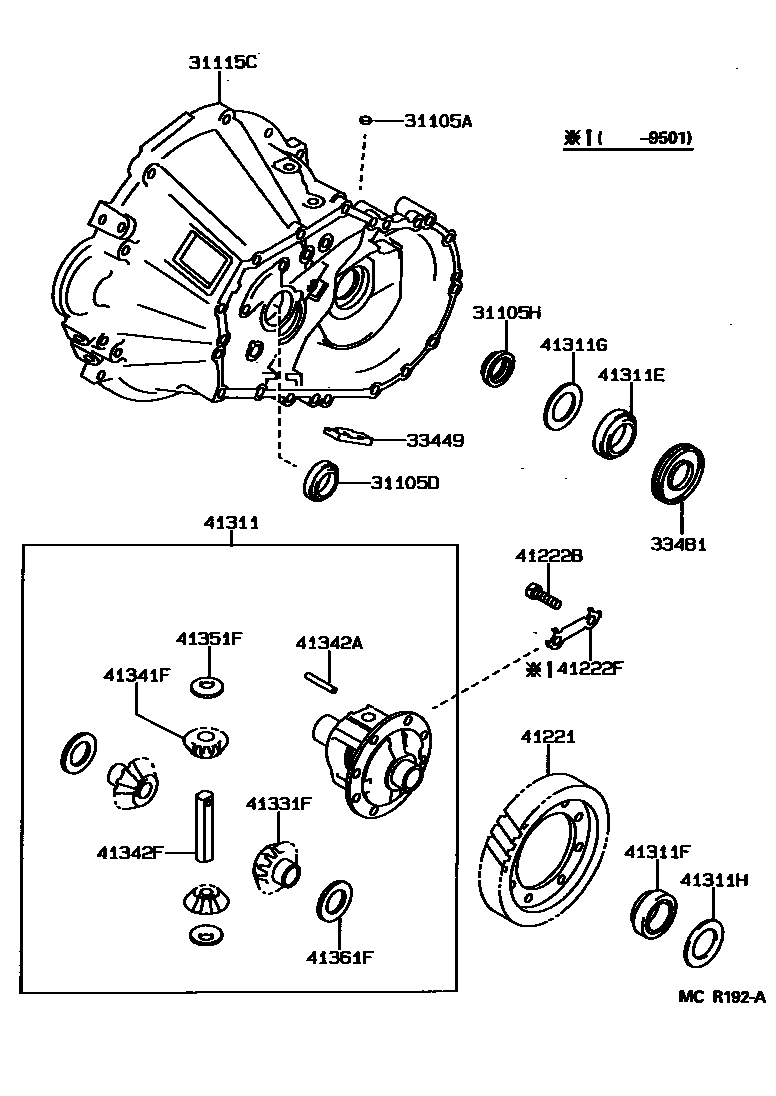

FRONT AXLE HOUSING & DIFFERENTIAL
31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)
33449MAGNET, TRANSMISSION
W(SUPER STRUT SUSPENSION)
33481GEAR, SPEEDOMETER DRIVE (MTM)
W(SUPER STRUT SUSPENSION)
N=35
N=27
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
W(SUPER STRUT SUSPENSION)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
W(SUPER STRUT SUSPENSION)
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
sub90366-40064
W(SUPER STRUT SUSPENSION)
41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)
T=2.10
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
41331FGEAR, FRONT DIFFERENTIAL SIDE
W(SUPER STRUT SUSPENSION),NO.1
W(SUPER STRUT SUSPENSION),NO.2
41341FPINION, FRONT DIFFERENTIAL
W(SUPER STRUT SUSPENSION)
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
W(SUPER STRUT SUSPENSION)
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.00,MARK B
T=1.05,MARK C
T=1.10,MARK D
T=1.15,MARK E
T=1.20,MARK F
T=1.25,MARK G
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
T=0.80
T=0.85
T=0.90
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
T=1.25
T=1.30
21 parts on this diagram · 5 diagrams in section
