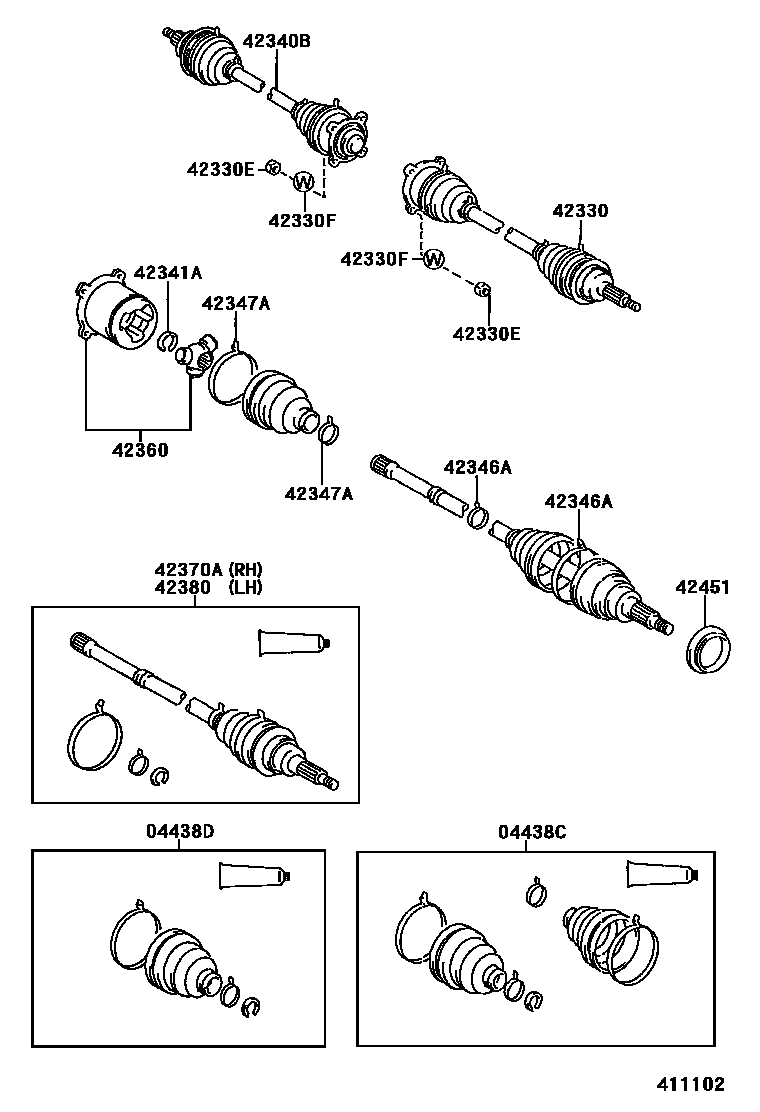

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

04438CBOOT KIT, REAR DRIVE SHAFT

main04437-20020iST205¥10,800199402-199606

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04438-28011iST205¥6,700199402-199606

sub04437-28021¥6,700

42330SHAFT ASSY, REAR DRIVE, RH

main42340-20040iST205¥57,400199402-199606

sub42340-20041¥57,400

sub90178-22001¥310

42330ENUT(FOR REAR DRIVE SHAFT)

main90170-10191iST205¥110199402-199606

42330FWASHER(FOR REAR DRIVE SHAFT)

main94511-01000iST205¥110199402-199606

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-20040iST205¥57,400199402-199606

sub42340-20041¥57,400

sub90178-22001¥310

42341ARING, SNAP (FOR REAR DRIVE SHAFT)

main90520-26028iST205¥110199402-199606

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main42345-14010iST205¥700199402-199606

ID=35.75

main90949-01339iST205¥350199402-199606

ID=102.2

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main42345-14010iST205¥700199402-199606

ID=35.75

main42345-30010iST205¥970199402-199606

ID=99.9

42360JOINT ASSY, REAR DRIVE SHAFT INBOARD

main42360-30011iST205¥16,100199402-199606

sub42360-20010¥17,800

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-29215iST205¥46,900199402-199508

sub42370-29216¥47,100

main42370-29216iST205¥47,100199508-199606

sub42370-29217¥47,100

sub90178-22001¥310

42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

main42370-29215iST205¥46,900199402-199508

sub42370-29216¥47,100

main42370-29216iST205¥47,100199508-199606

sub42370-29217¥47,100

sub90178-22001¥310

42451DEFLECTOR, REAR WHEEL BEARING DUST, NO.1

main42451-20040iST205¥790199402-199606

13 parts on this diagram · 3 diagrams in section
