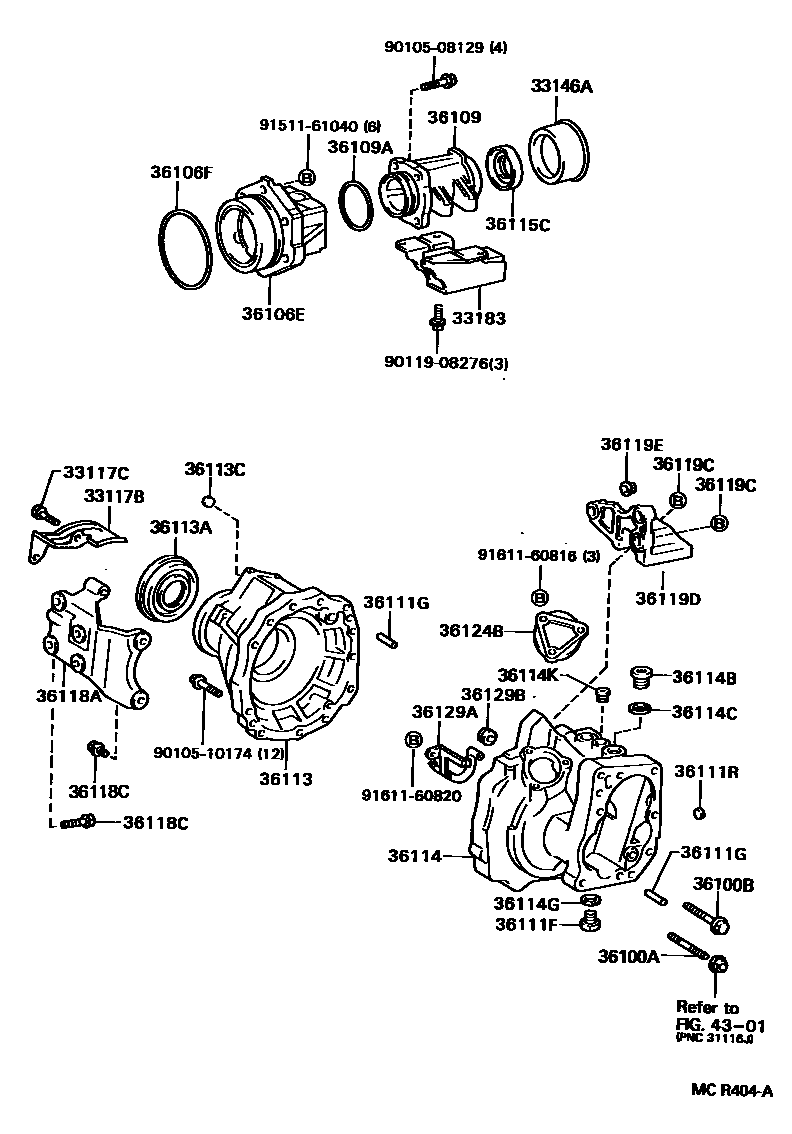

TRANSFER CASE & EXTENSION HOUSING
33117BPROTECTOR, TRANSFER CASE
33117CBOLT(FOR TRANSFER CASE PROTECTOR)
sub91641-H0820
33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33183DAMPER, TRANSFER DYNAMIC
36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
S=27 & 27,L=75
S=22 & 22,L=69
36100BBOLT (FOR TRANSFER & TRANSAXLE SETTING)
*12-1.25PX52-30
36106ECAGE SUB-ASSY, TRANSFER PINION BEARING
36106FRING, O (FOR TRANSFER PINION BEARING CAGE)
36109HOUSING SUB-ASSY, TRANSFER EXTENSION
36109ARING, O (FOR TRANSFER EXTENSION HOUSING)
36111FPLUG (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=20,OD=10
L=24,OD=12
36111RPLUG, TIGHT (FOR TRANSFER CASE)
36113CASE, TRANSFER, RH
36113ASEAL, OIL (FOR TRANSFER CASE RH)
36113CPLUG (FOR TRANSFER CASE)
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114CGASKET, NO.1 (FOR TRANSFER CASE)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36114KPLUG, TRANSFER SHIFT DETENT BALL
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36118APLATE, TRANSFER STIFFENER, RH
36118CBOLT (FOR TRANSFER STIFFENER PLATE)
sub91512-B1020
36119CBOLT (FOR TRANSFER OIL RECEIVER NO.1)
*10-1.25PX30-30
36119DPLATE, TRANSFER STIFFENER, CENTER
36119ENUT (FOR TRANSFER STIFFENER CENTER PLATE)
sub90179-10132
36124BCOVER, TRANSFER INSPECTION HOLE
36129ATUBE, TRANSFER OIL
36129BCUSHION (FOR TRANSFER OIL TUBE)
4301
9010508129
main90105-08129
9010510174
main90105-10174
9011908276
main90119-08276
9151161040
main91511-61040
9161160816
main91611-60816
9161160820
main91611-60820
37 parts on this diagram · 1 diagram in section
