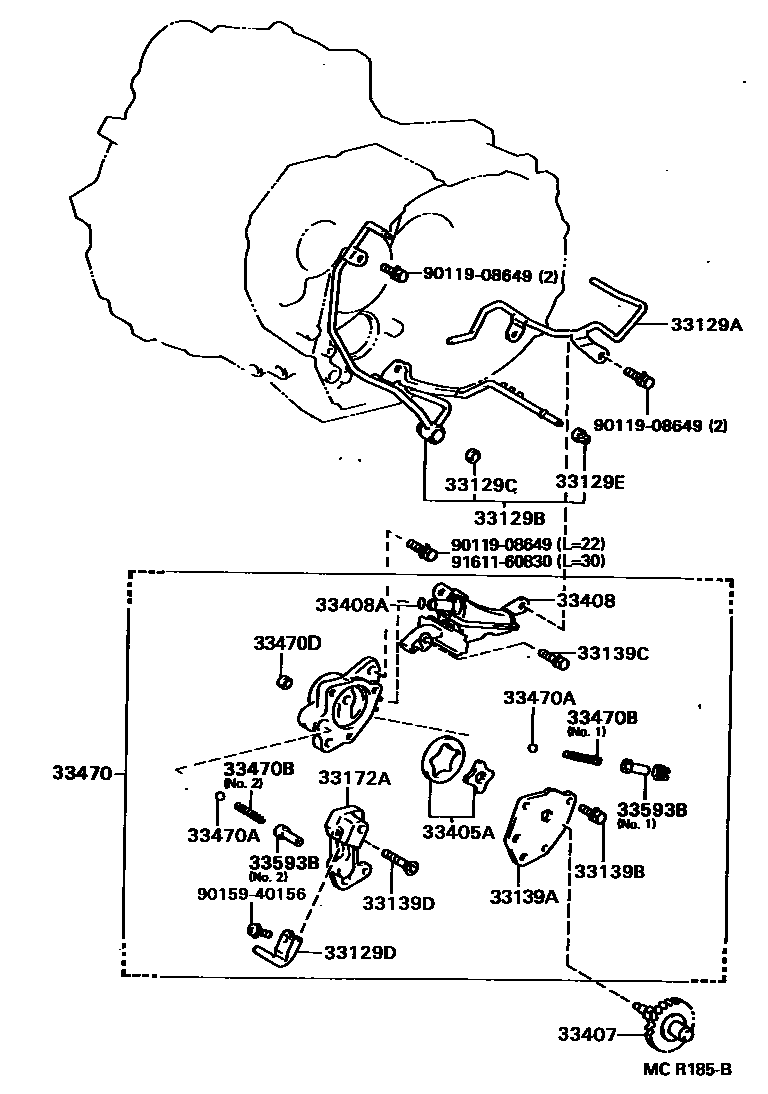

OIL PUMP, OIL COOLER & PIPE (MTM)

33129APIPE, MANUAL TRANSMISSION OIL, NO.1

main33129-32010i199311-199606

33129BPIPE, MANUAL TRANSMISSION OIL, NO.2

main33106-12040i199311-199508

main33106-33010i199402-199606

33129CGASKET(FOR MANUAL TRANSMISSION OIL PIPE)

main90430-09004i199311-199606

33129DPIPE, TRANSMISSION OIL, NO.3

main33129-20040i199311-199606

33129EBUSH(FOR MANUAL TRANSMISSION OIL PIPE)

main90389-05012i199311-199606

33139ACOVER, OIL PUMP(FOR MANUAL TRANSMISSION)

main33139-20020i199311-199606

33139BBOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER)

main90119-06199i199311-199606

33139CBOLT(FOR TRANSMISSION OIL PUMP COVER)

main90119-06268i199311-199606

33139DSCREW(FOR TRANSMISSION OIL PUMP COVER)

main90149-60064i199311-199606

33172ABY-PASS, TRANSMISSION OIL PUMP

main33172-20020i199311-199606

33405AROTOR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP

main33405-20020i199311-199606

33407GEAR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP DRIVE

main33407-12041i199311-199508

main33407-20011i199402-199606

33408STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL

main33408-20020i199311-199606

sub33408-20021

33408ARING, O (FOR MANUAL TRANSMISSION OIL STRAINER)

main96721-19012i199311-199606

33470PUMP ASSY, MANUAL TRANSMISSION OIL

main33470-20030i199311-199606

sub33470-20031

33470ABALL (FOR MANUAL TRANSMISSION OIL PUMP)

main90360-09001i199311-199606

33470BSPRING, COMPRESSION (FOR MANUAL TRANSMISSION OIL PUMP)

main90501-07062i199311-199606

NO.2

main90501-08094i199311-199606

NO.1

33470DGASKET (FOR MANUAL TRANSMISSION OIL PUMP)

main90430-09004i199311-199606

33593BHOLDER, SPRING (FOR MANUAL TRANSMISSION OIL PUMP)

main33593-20020i199311-199606

NO.1

main33593-20030i199311-199606

NO.2

9011908649

main90119-08649

9015940156

main90159-40156

9161160830

main91611-60830

22 parts on this diagram · 3 diagrams in section
