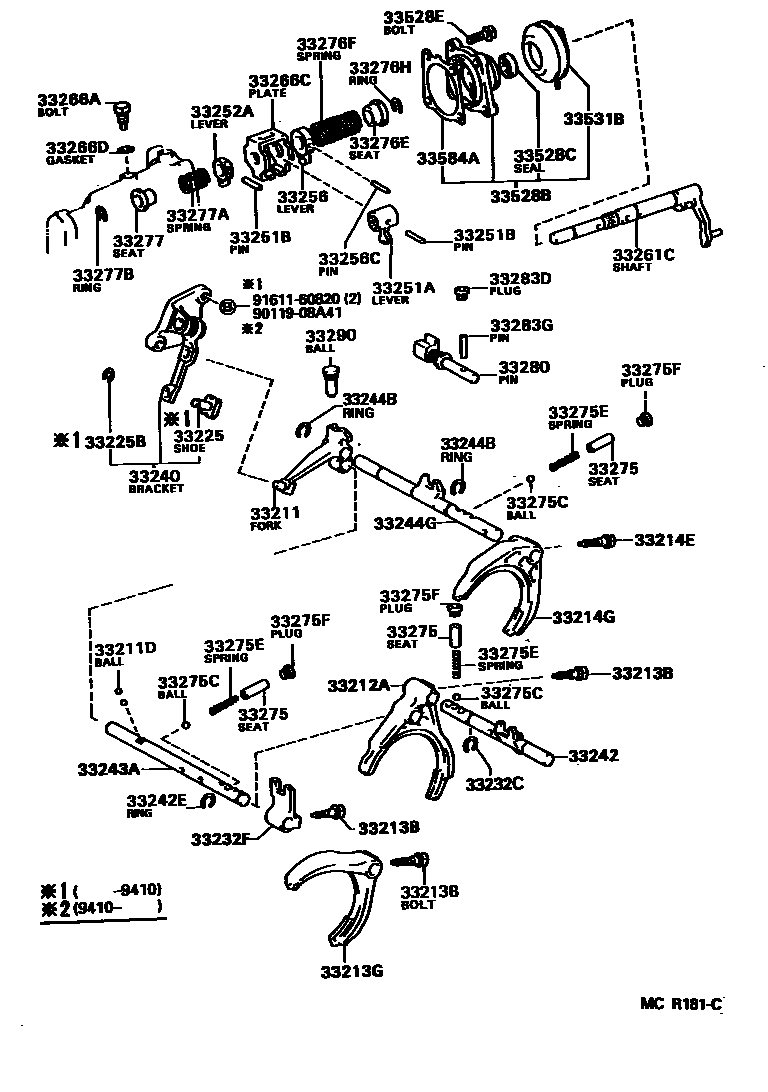

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33211FORK, REVERSE SHIFT
W(SUPER STRUT SUSPENSION)
33211DBALL(FOR REVERSE SHIFT FORK)
33212AFORK, GEAR SHIFT, NO.1
W(SUPER STRUT SUSPENSION)
33213BBOLT(FOR SHIFT FORK SET)
W(SUPER STRUT SUSPENSION)
33214EBOLT(FOR GEAR SHIFT FORK LOCK)
33214GFORK, GEAR SHIFT, NO.3
W(SUPER STRUT SUSPENSION)
33225SHOE, SHIFT ARM
33225BRING, E(FOR SHIFT ARM SHOE)
33232CRING, SNAP (FOR 1ST & 2ND SHIFT HEAD)
33232FHEAD, GEAR SHIFT, NO.1
W(SUPER STRUT SUSPENSION)
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=32
L=47.0
L=25.5
33252ALEVER, SHIFT, INNER NO.2
W(SUPER STRUT SUSPENSION)
33256LEVER, SELECT INNER
33256CPIN, SLOTTED SPRING (FOR SELECT INNER LEVER)
33261CSHAFT, SHIFT & SELECT LEVER
W(SUPER STRUT SUSPENSION)
33266ABOLT (FOR SHIFT INTERLOCK PLATE)
33266CPLATE, SHIFT INTERLOCK
W(SUPER STRUT SUSPENSION)
33266DGASKET (FOR SHIFT INTERLOCK PLATE)
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)
33275FPLUG (FOR SHIFT DETENT BALL)
33276ESEAT, SELECT SPRING, NO.1
W(SUPER STRUT SUSPENSION)
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
W(SUPER STRUT SUSPENSION)
33276HRING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)
33277SEAT, SELECT SPRING, NO.2
W(SUPER STRUT SUSPENSION)
33277BRING, E (FOR SELECT SPRING NO.2 SEAT)
33280PIN ASSY, REVERSE RESTRICT
W(SUPER STRUT SUSPENSION)
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
W(SUPER STRUT SUSPENSION)
33528BCOVER, CONTROL SHAFT
W(SUPER STRUT SUSPENSION)
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
33528EBOLT (FOR CONTROL SHAFT COVER)
*10-1.25PX20-20
*10-1.25PX25-19.8
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
W(SUPER STRUT SUSPENSION)
33584AGASKET, CONTROL SHIFT LEVER RETAINER
9011908A41
main90119-08A41
9161160820
main91611-60820
47 parts on this diagram · 4 diagrams in section
