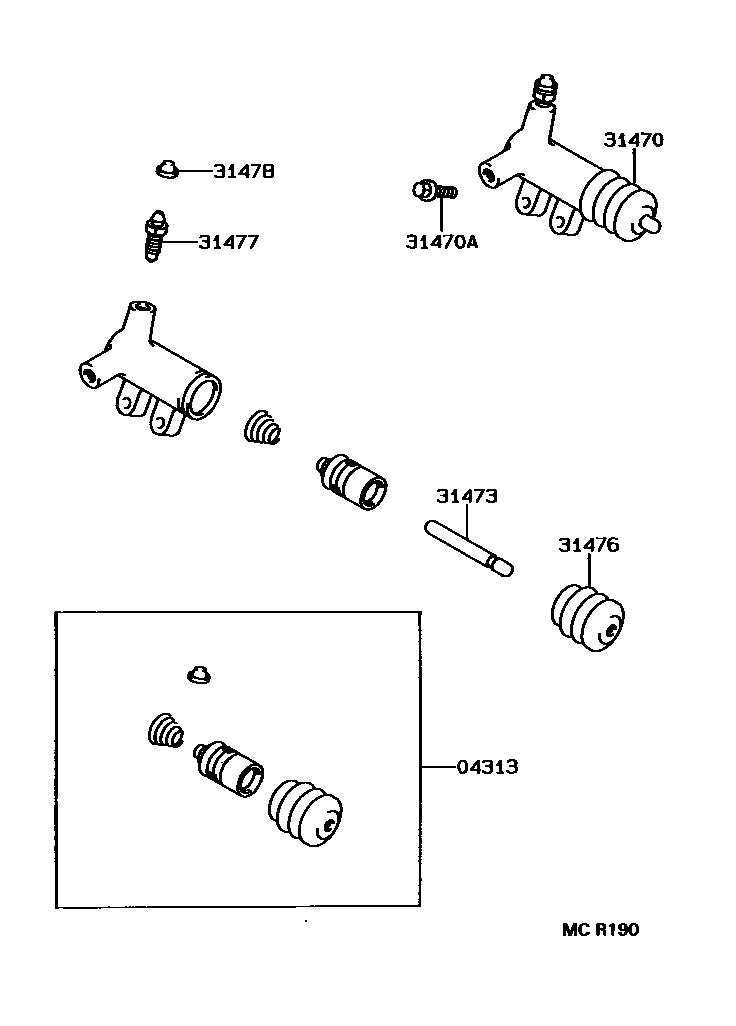

CLUTCH RELEASE CYLINDER

0001 1C52 0002 1S54,E56,E154F

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iST202199311-199401

main04313-17010iST202199401-199903

main04313-17020iST205199402-199606

main04313-22030iAT200199311

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12093iAT200199311

main31470-20200iST202199311-199903

main31470-20210iST205199402-199606

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822iAT200,ST205199311

main91611-60825iST202199311-199903

*8-1.25PX25-25

sub91611-B0825

main91611-60825iST202..LB199311-199508

W(SUPER STRUT SUSPENSION)

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iST202..LB199401-199903

main31473-32010iAT200199311-199401

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAT200,ST20#199311-199903

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iAT200,ST20#199311-199903

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iAT200,ST20#199311-199903

7 parts on this diagram · 2 diagrams in section
